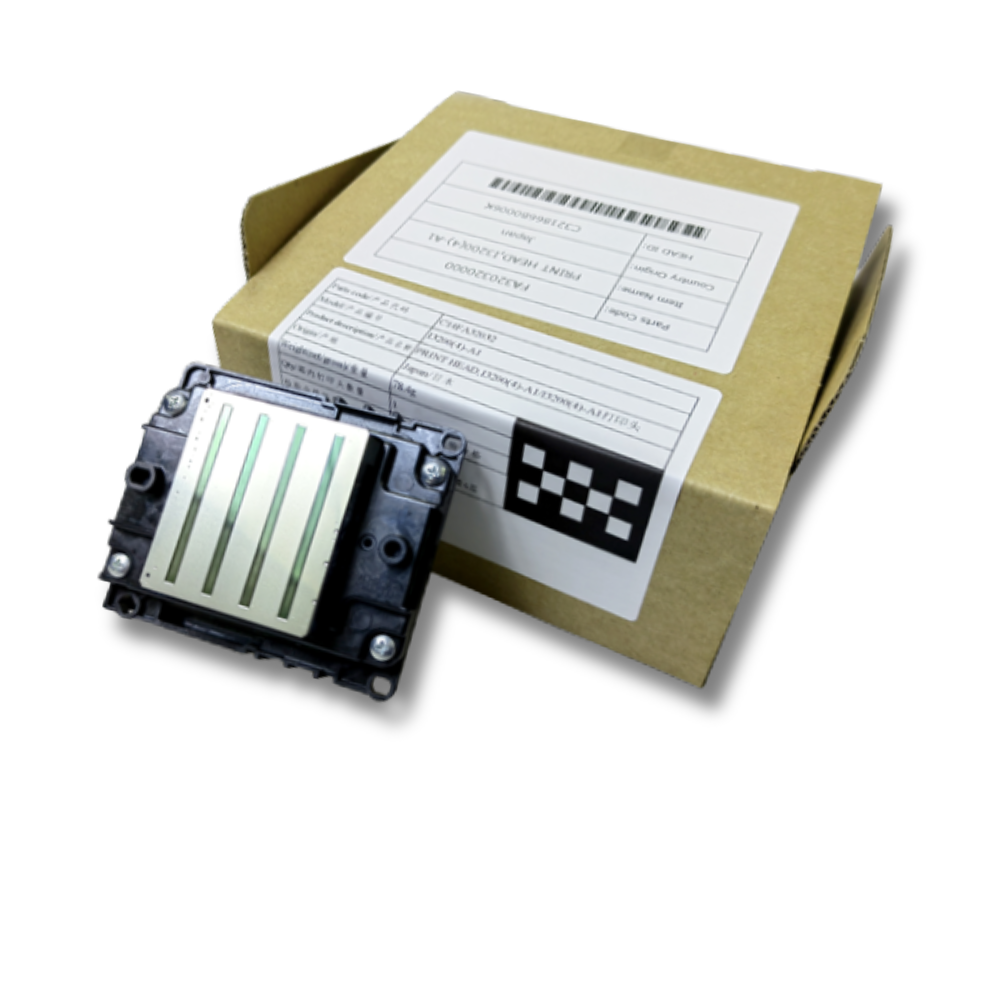

Epson I3200-A1 Water Printhead - I3200-A1

The Epson I3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for water based inks. The head included the manifold.

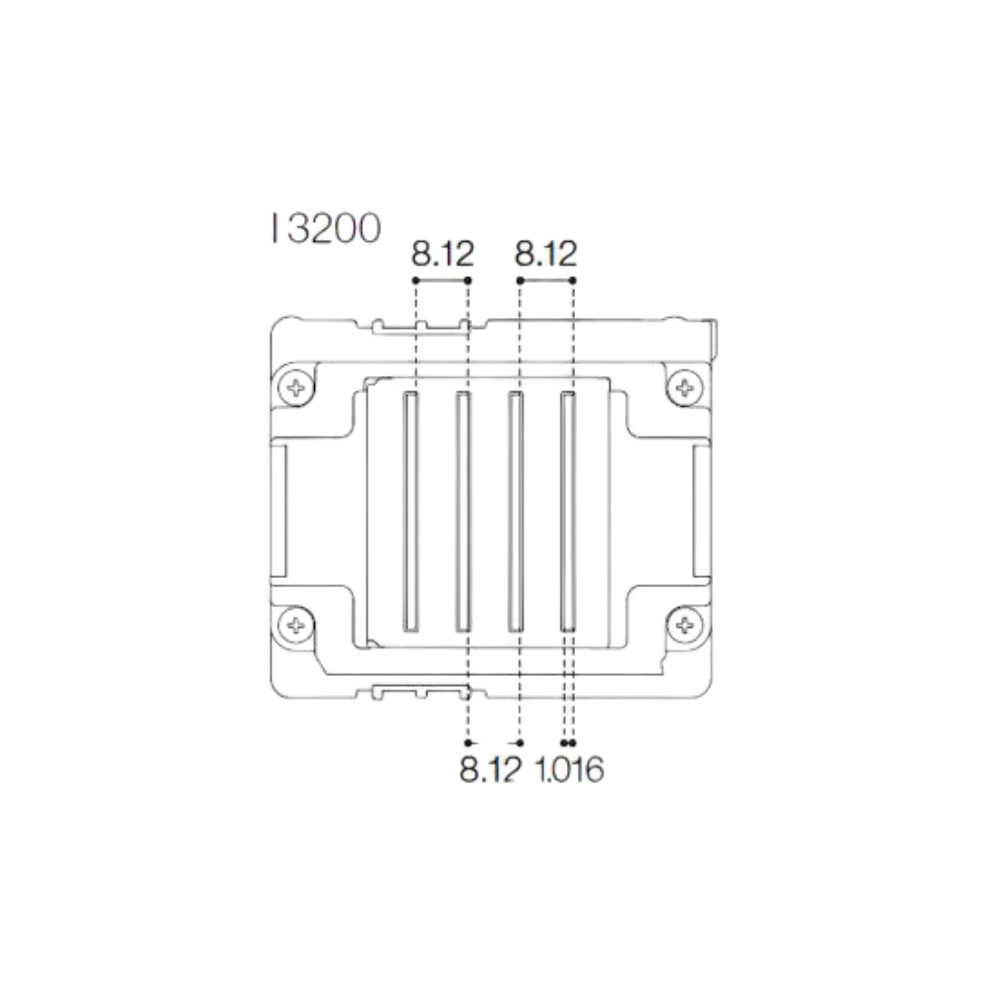

Structurally, the Epson I3200-A1 and Epson I3200-A1 HD prinheads are the same heads, both with 8 rows of 400 nozzles.

But the two heads are absolutely NOT interchangeable, each printer can only run the type of head for which it was designed.

• The Epson I3200 has support for 4 colors, so there are 4 inputs (nipples) on the manifold to which the dampers can be connected, and each color is emitted by a pair of nozzle rows.
• The Epson  i3200 HD has support for 8 colors, so there are 8 inputs (nipples) on the manifold to which the dampers can be connected, and each color is emitted by a single nozzle row.
