}Seiko 1024GS HG-S 7PL Printhead IEA1024N07-2F01
Brand: Oki
Tax excluded. Shipping calculated at checkout
Availability: In stock
%20is%20a%20genuine%20original%20Seiko%20Instruments%20high-grade%20small-drop%20grayscale%20piezoelectric%20printhead%20for%20solvent%20and%20UV%20ink%20wide-format%20printing.%20W...
){kind=link}

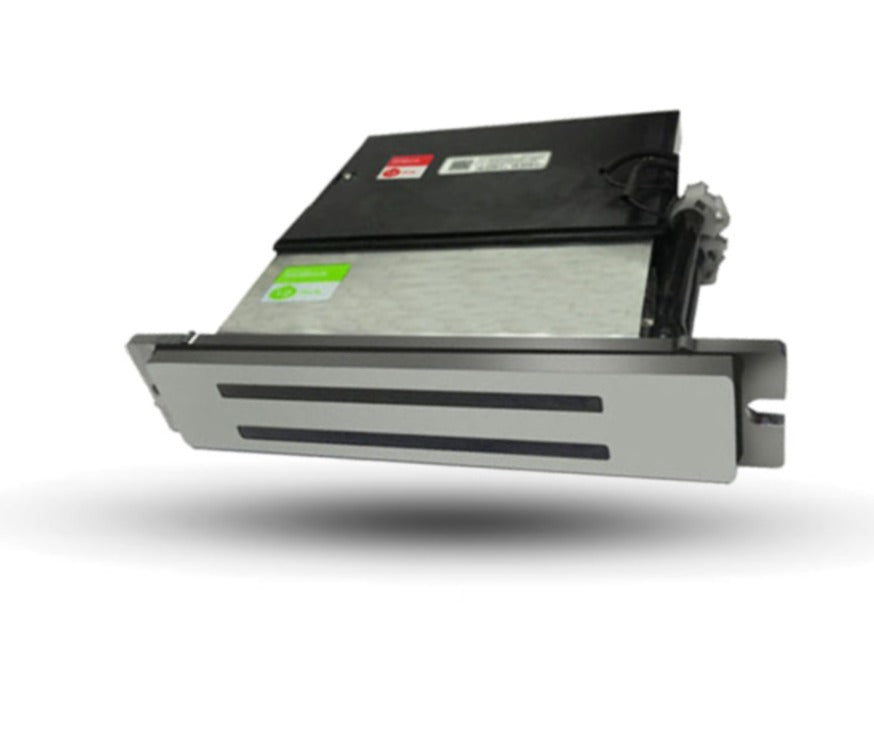

The Seiko 1024GS HG-S 7PL Printhead (IEA1024N07-2F01) is a genuine original Seiko Instruments high-grade small-drop grayscale piezoelectric printhead for solvent and UV ink wide-format printing. With 1,024 active nozzles across a 72mm print width at 360 dpi native resolution, a firing frequency of 30 kHz and multiples, and multi-drop grayscale capability delivering up to 5 drops per nozzle firing — enabling effective drop volumes up to 35 pl from a 7 pl base — it delivers fine-detail, smooth-gradation output for high-quality graphics and signage production. Built-in damper assembly ensures consistent ink flow; integrated non-wetting nozzle plate and nozzle guard protect against contamination and physical damage. Compatible with Infiniti, Munda, and Ntek wide-format printers using solvent and UV inks. Every IEA1024N07-2F01 we sell at Digiprint USA is 100% genuine original Seiko Instruments.
Solvent/UV only — NOT compatible with aqueous water-based inks. The Seiko 1024GS HG-S (IEA1024N07-2F01) is configured for solvent and UV inks. It is not interchangeable with the Seiko 508GS 12PL water printhead (IRH2533U-1420). Always confirm your printer's ink type before ordering. Installing a solvent/UV head in an aqueous system, or vice versa, will result in ink seal damage and permanent head failure.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Seiko 1024GS HG-S 7PL (High Grade, Small Drop) |
| Part number | IEA1024N07-2F01 |
| Technology | Grayscale drop-on-demand piezoelectric |
| Total nozzles | 1,024 active nozzles |
| Active print width | 72 mm |
| Native resolution | 360 dpi |
| Firing frequency | 30 kHz (and multiples) |
| Base drop volume | 7 pl |
| Grayscale drops | Up to 5 drops per firing — up to 35 pl effective |
| Ink type | Solvent and UV inks — NOT aqueous |
| Nozzle plate | Non-wetting — resists ink adhesion and contamination |
| Damper | Built-in damper assembly — consistent ink flow |
| Nozzle guard | Integrated — physical nozzle protection |
| Country of origin | Japan (Seiko Instruments Inc.) |
| Condition | 100% genuine original Seiko, brand new |
Seiko 1024GS Family — HG-S vs HG-L
| Model | Drop | Grayscale Max | Best For |
|---|---|---|---|
| HG-S 7PL (this listing) | 7 pl base | 35 pl (5 drops) | Fine detail, high-resolution graphics, smooth gradations |
| HG-L 28PL | 28 pl base | Higher effective drop | Higher coverage, faster throughput applications |
Compatible Printers
Contact our team with your printer make, model, and ink type to confirm IEA1024N07-2F01 compatibility before ordering.
Warranty Notice
Due to the sensitive nature of industrial printhead components, we cannot accept returns, exchanges, or refunds once the printhead has been installed. All sales are final. Always confirm your printer's ink type (solvent/UV only) before ordering.
Why Buy from Digiprint USA
• 100% genuine original Seiko Instruments 1024GS HG-S 7PL — IEA1024N07-2F01, manufactured in Japan
• HG-S vs HG-L distinction clearly explained — small-drop vs large-drop variant for your application
• Full spec coverage — 1024 nozzles, 72mm, 360dpi, 30kHz, 5-drop 35pl grayscale, non-wetting plate — most complete 1024GS HG-S listing available
• Solvent/UV confirmed — cross-linked to the aqueous 508GS listing so buyers find the right head for their ink system
• In stock in Doral, Miami FL — same day shipping before 2PM EST
• Ideal for Latin American Infiniti, Munda, and Ntek shops using Miami freight forwarders
• Free technical support — we confirm HG-S vs HG-L and solvent/UV compatibility before you order
View our full range of genuine Seiko industrial printheads, including the Seiko 508GS 12PL Water Printhead for aqueous ink applications.
Frequently Asked Questions
What does HG-S mean — and how is it different from HG-L?
HG stands for High Grade — Seiko's premium 1024-nozzle printhead tier. The S and L suffixes refer to drop size: HG-S is the Small Drop variant (7 pl base, up to 35 pl in 5-drop grayscale), optimised for fine-detail, high-resolution output where smooth gradations and precise dot placement are the priority. HG-L is the Large Drop variant (28 pl base), designed for higher ink coverage and throughput applications where maximum drop volume matters more than minimum drop size. Both use the same 1024-nozzle, 72mm, 360 dpi platform. Your printer's OEM specification determines which is required — they are not interchangeable.
What does "up to 5 drops" grayscale mean for the 1024GS HG-S?
The Seiko 1024GS uses multi-drop grayscale: each nozzle can fire between 1 and 5 drops in rapid succession per pixel position. At 1 drop, the effective drop is 7 pl (finest detail, highlights). At 5 drops, the effective drop reaches 35 pl (maximum coverage, deep shadows). This gives the head a continuous tonal range within a single pass — smooth gradations without extra passes or complex dithering. Combined with the 30 kHz frequency, this enables high-quality wide-format graphics at production speeds.
Is the 1024GS HG-S compatible with eco-solvent inks?
Yes — the IEA1024N07-2F01 is compatible with solvent inks, which includes both hard solvent and eco-solvent formulations, as well as UV-curable inks. It is not compatible with aqueous (water-based) inks. If your printer uses water-based inks, you need the Seiko 508GS 12PL Water Printhead (IRH2533U-1420) instead. Confirm your ink type with our team before ordering.
Do you ship the Seiko 1024GS HG-S 7PL to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse before 2PM EST. Our Miami location is ideal for Latin American Infiniti, Munda, and Ntek solvent/UV production shops using freight forwarders in the Doral area.
