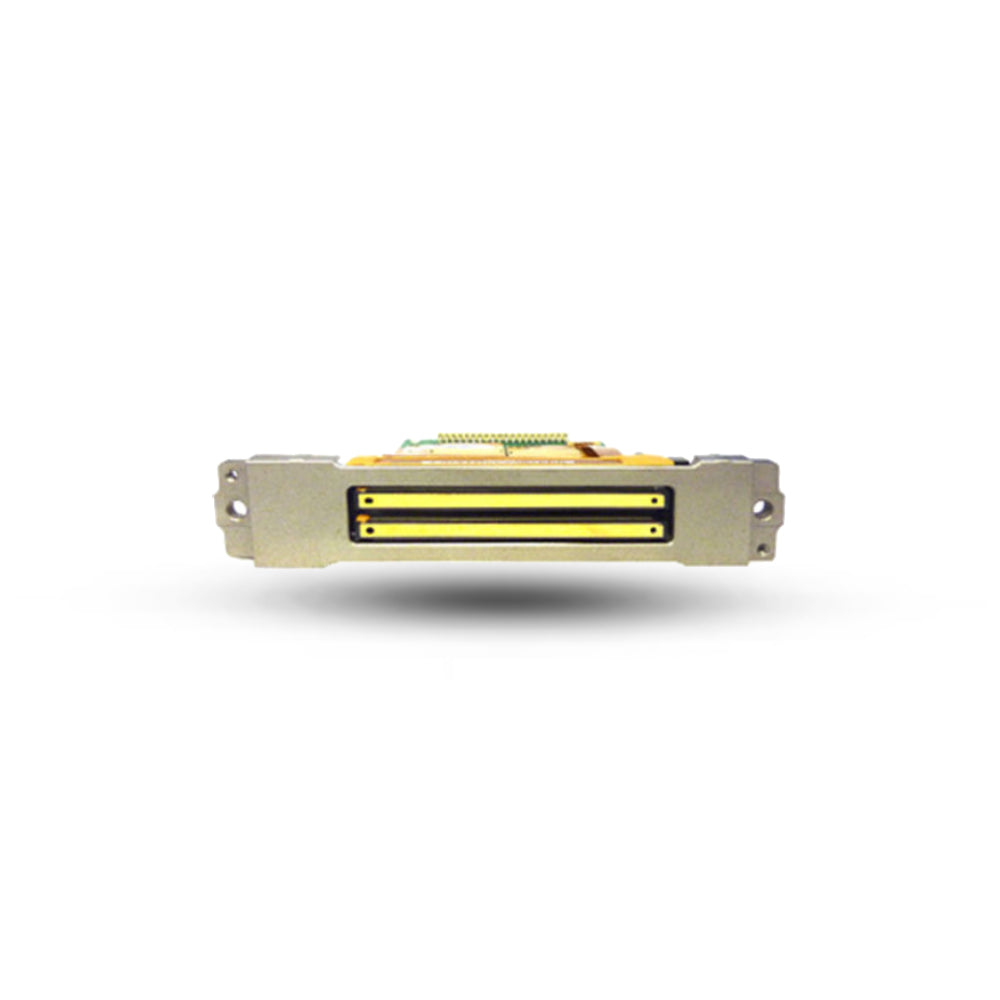

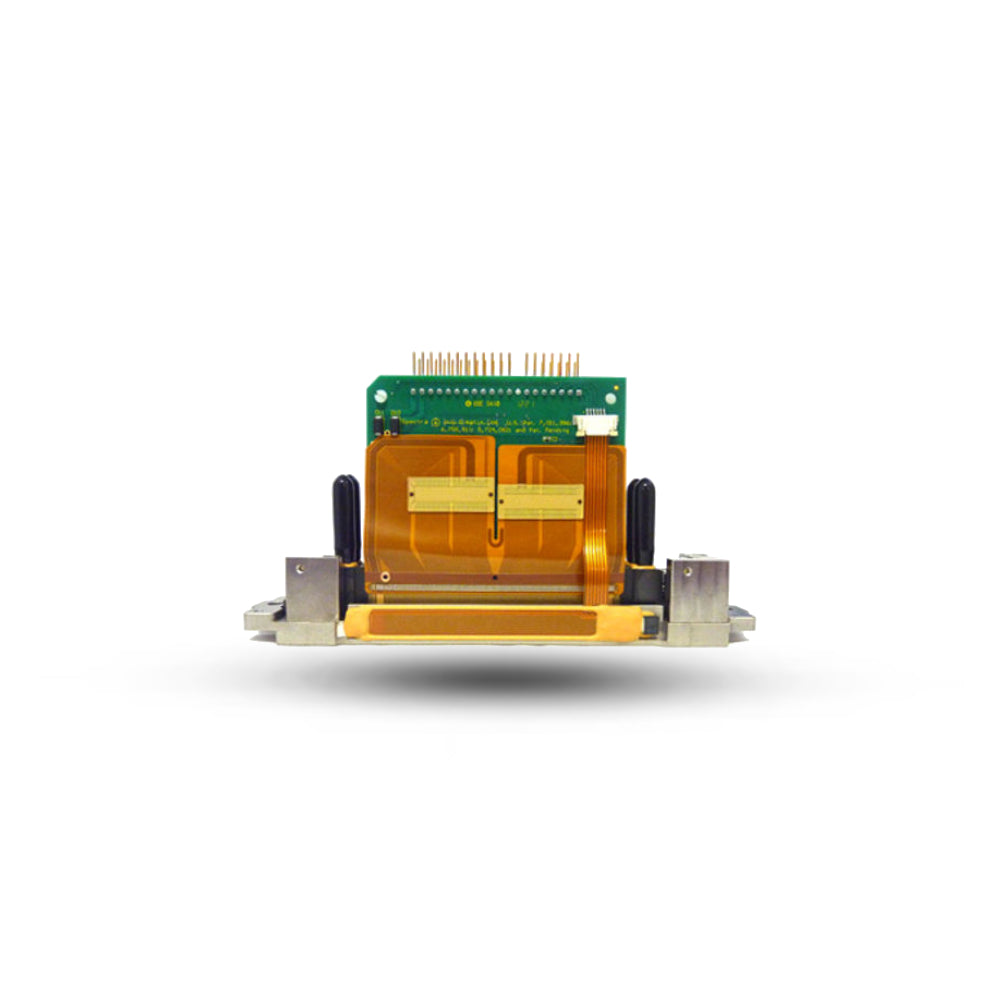

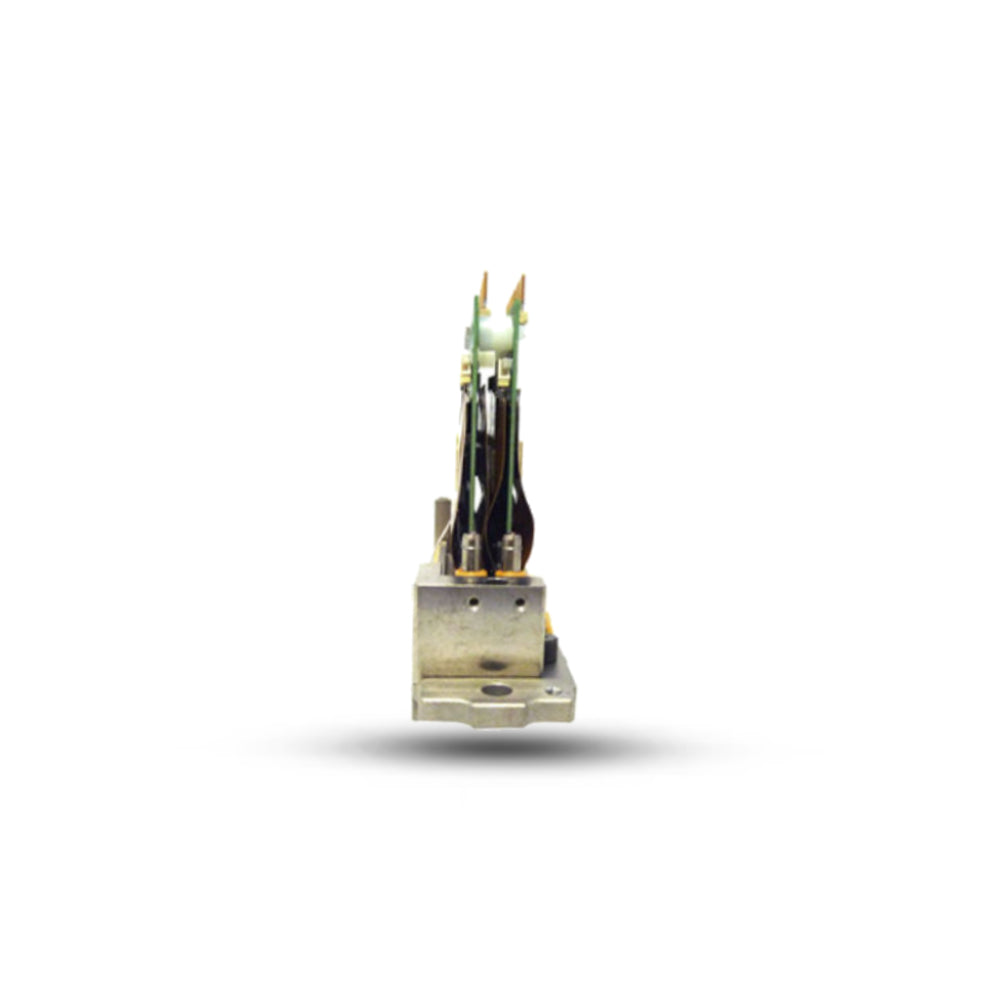

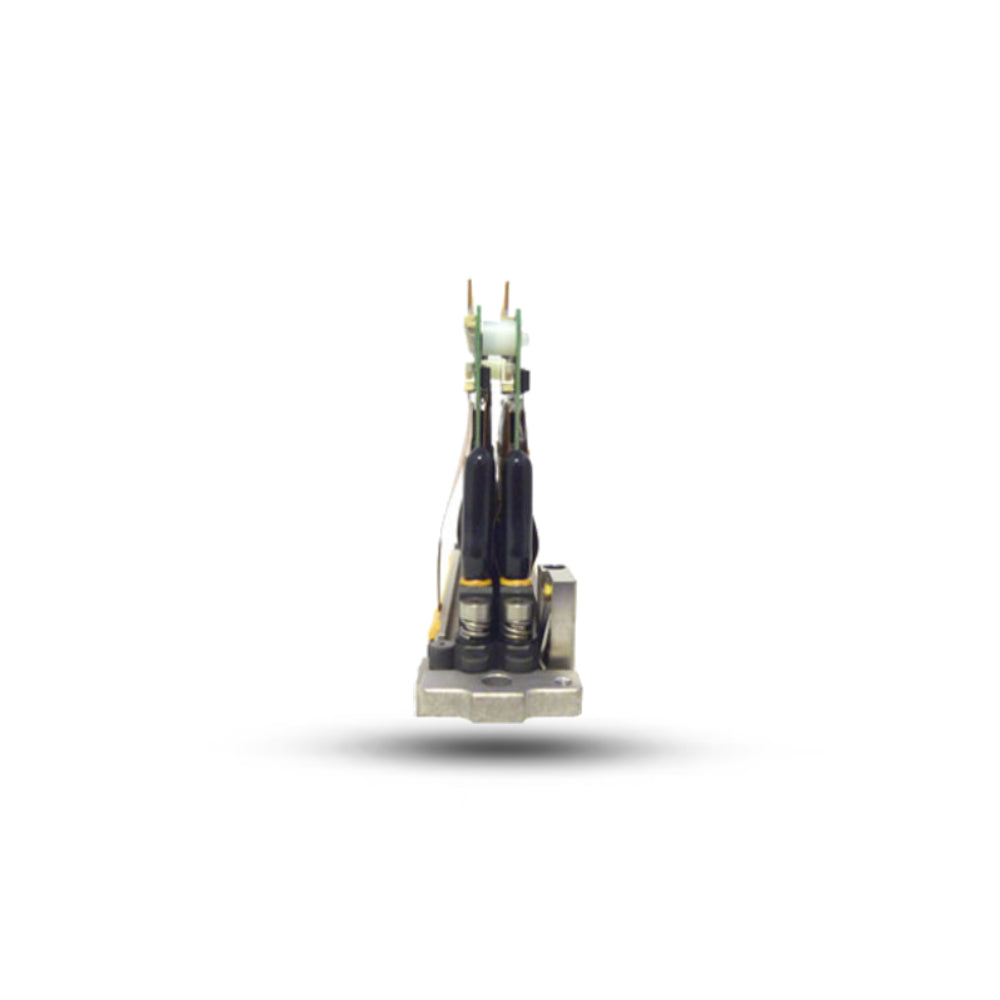

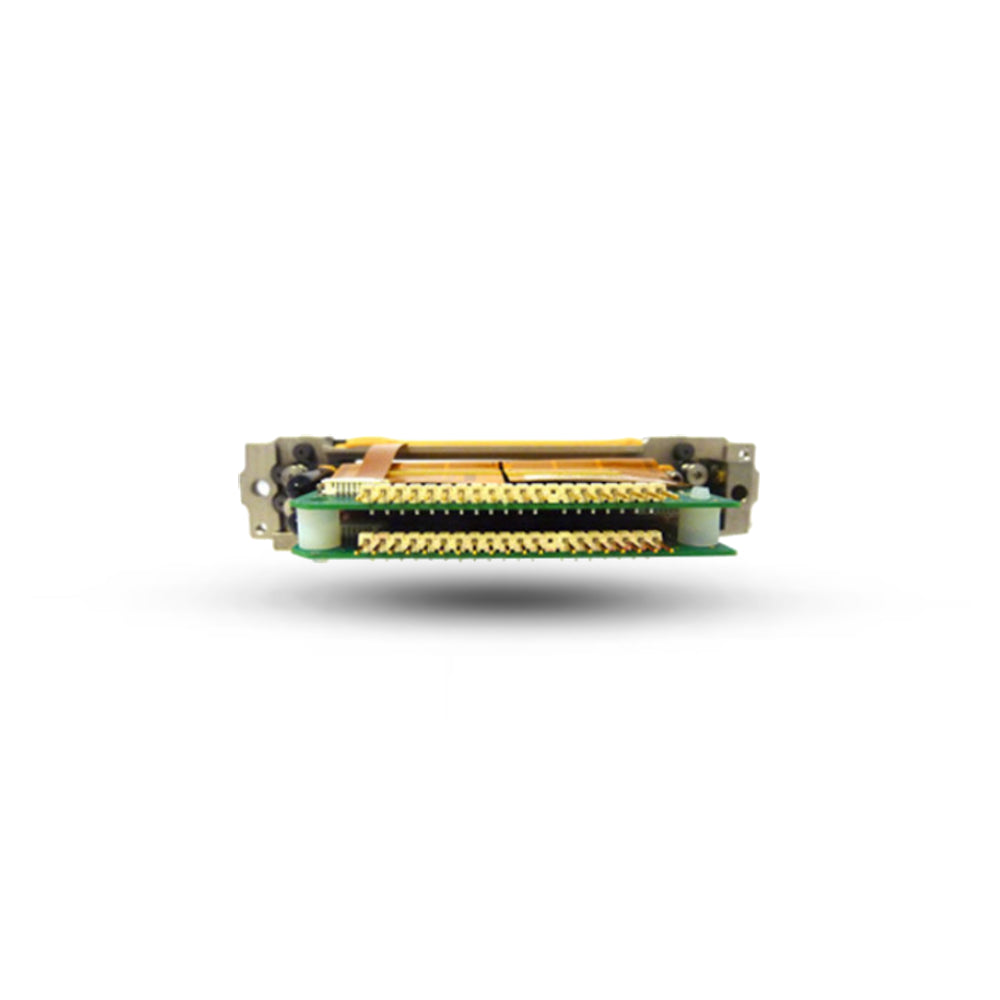

}Spectra Polaris PQ-512/35 AAA Printhead | 512 Nozzles VersaDrop UV Solvent
Brand: Dimatix
Tax excluded. Shipping calculated at checkout
Availability: In stock
The Fujifilm Dimatix Spectra Polaris PQ-512/35 AAA is a genuine original high-performance industrial inkjet printhead for wide-format UV, solvent, and aqueous printing. Building on the proven Spectra Nova and Galaxy platform, the Polaris PQ-512 AAA family delivers greater jetting performance, higher nozzle density, and field-proven reliability. Its unique field-repairable 256-channel module design allows components to be replaced without special tools or recalibration. Every PQ-512/35 AAA we sell at Digiprint USA is 100% genuine original Spectra Dimatix.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Spectra Polaris PQ-512/35 AAA |
| Manufacturer | Fujifilm Dimatix (Spectra) |
| Total nozzles (channels) | 512 independent channels (2 × 256-channel modules) |
| Nozzle arrangement | Multiple rows — 200 dpi spacing (single colour) / 100 dpi (two-colour) |
| Native drop size | 35 pl |
| VersaDrop™ range | Adjustable up to 80 pl |
| Maximum resolution | Up to 800 dpi (with VersaDrop) |
| Drop velocity | 8 m/s nominal |
| Max fire frequency | Over 50 kHz |
| Ink viscosity range | 8–20 centipoise |
| Ink compatibility | UV-curable, aggressive organic solvent, aqueous inks |
| Temperature control | Built-in heaters and temperature sensors — up to 60°C operation |
| Fluid interface | Dual-ported per module — single and two-colour, plus ink recirculation |
| Electrical | Two electrical connectors with 8 serial data lines |
| Field repair | 256-channel modules replaceable in the field — no special tools or recalibration required |
| Mounting | Integral mounting bezel with precision registration points for drop-in alignment |
| Condition | 100% genuine original Spectra Dimatix, brand new |
VersaDrop™ Technology — What It Means for Your Production
VersaDrop™ is Fujifilm Dimatix's variable drop technology built into the Polaris PQ-512 platform. The native 35pl drop size can be scaled up to 80pl using VersaDrop, enabling the same head to deliver finer detail at smaller drops in highlight areas and larger drops for faster solid coverage — without switching heads. Combined with resolution up to 800 dpi and fire frequencies exceeding 50 kHz, the PQ-512/35 delivers both production speed and image quality flexibility that fixed drop-size heads cannot match.
Field-Repairable Design — A Polaris Advantage
Each Polaris PQ-512/35 consists of two 256-channel modules. If a module fails, it can be replaced independently in the field — without special tools, without recalibration, and without replacing the entire head assembly. The integral mounting bezel with precision registration points ensures drop-in alignment after module replacement. For high-production environments, this significantly reduces printhead replacement costs and downtime compared to non-repairable industrial heads.
Polaris PQ-512/35 vs PQ-512/15 — Drop Size Comparison
| Spec | PQ-512/35 (this listing) | PQ-512/15 |
|---|---|---|
| Native drop | 35 pl | 15 pl |
| VersaDrop max | Up to 80 pl | Up to 30 pl |
| Best for | Standard to high-viscosity inks, production outdoor print | Fine-detail applications, mid-viscosity inks |
Compatible Printers
This printhead is compatible with the following printers:
Contact our team with your printer make and model to confirm PQ-512/35 AAA compatibility before ordering.
Warranty Notice
Due to the sensitive nature of industrial printhead components, we cannot accept returns, exchanges, or refunds once the printhead has been installed. All sales are final. Contact our team to confirm compatibility before ordering.
Why Buy from Digiprint USA
• 100% genuine original Spectra Dimatix Polaris PQ-512/35 AAA — not compatible, not refurbished
• In stock in Doral, Miami FL — same day shipping before 2PM EST
• Ideal for Latin American wide-format UV and solvent print shops using Miami freight forwarders
• Free technical support — we confirm PQ-512/35 vs PQ-512/15 and correct Polaris variant for your printer before you order
View our full range of genuine Spectra Dimatix and industrial printheads including the Polaris PQ-512/15 AAA.
Frequently Asked Questions
What is the difference between Polaris PQ-512/35 and PQ-512/15?
Both have 512 channels and VersaDrop technology but at different native drop sizes. The PQ-512/35 jets 35pl natively (up to 80pl with VersaDrop) — suited for standard to high-viscosity ink systems and production UV/solvent printing. The PQ-512/15 jets 15pl natively (up to 30pl with VersaDrop) — suited for fine-detail applications and mid-viscosity inks. Contact our team to confirm the correct variant for your printer.
What does field-repairable mean for the PQ-512/35?
Each Polaris PQ-512/35 consists of two 256-channel modules. If one module fails, it can be replaced independently in the field — no special tools, no recalibration required. The integral mounting bezel ensures drop-in alignment after replacement. This significantly reduces total cost of ownership compared to non-repairable industrial heads.
What inks are compatible with the PQ-512/35 AAA?
The PQ-512/35 is compatible with UV-curable inks, aggressive organic solvent inks, and aqueous inks — plus associated maintenance fluids. Built-in heaters allow ink temperature management up to 60°C for consistent viscosity across production runs. Always verify ink compatibility with your printer manufacturer's specifications.
What is VersaDrop™ on the Polaris PQ-512/35?
VersaDrop™ is Spectra's variable drop technology that allows the native 35pl drop to be scaled up to 80pl. This enables the same head to produce finer detail at smaller drops and faster fill at larger drops within the same print pass — at resolutions up to 800 dpi. It is a capability built into the head and does not require external hardware changes.
Do you ship Spectra Polaris printheads to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse. Our Miami location is ideal for Latin American industrial UV and solvent print shops using freight forwarders in the Doral area.
