Valuejet 1604/1614 Maintenance Assembly Station- Dg-41000

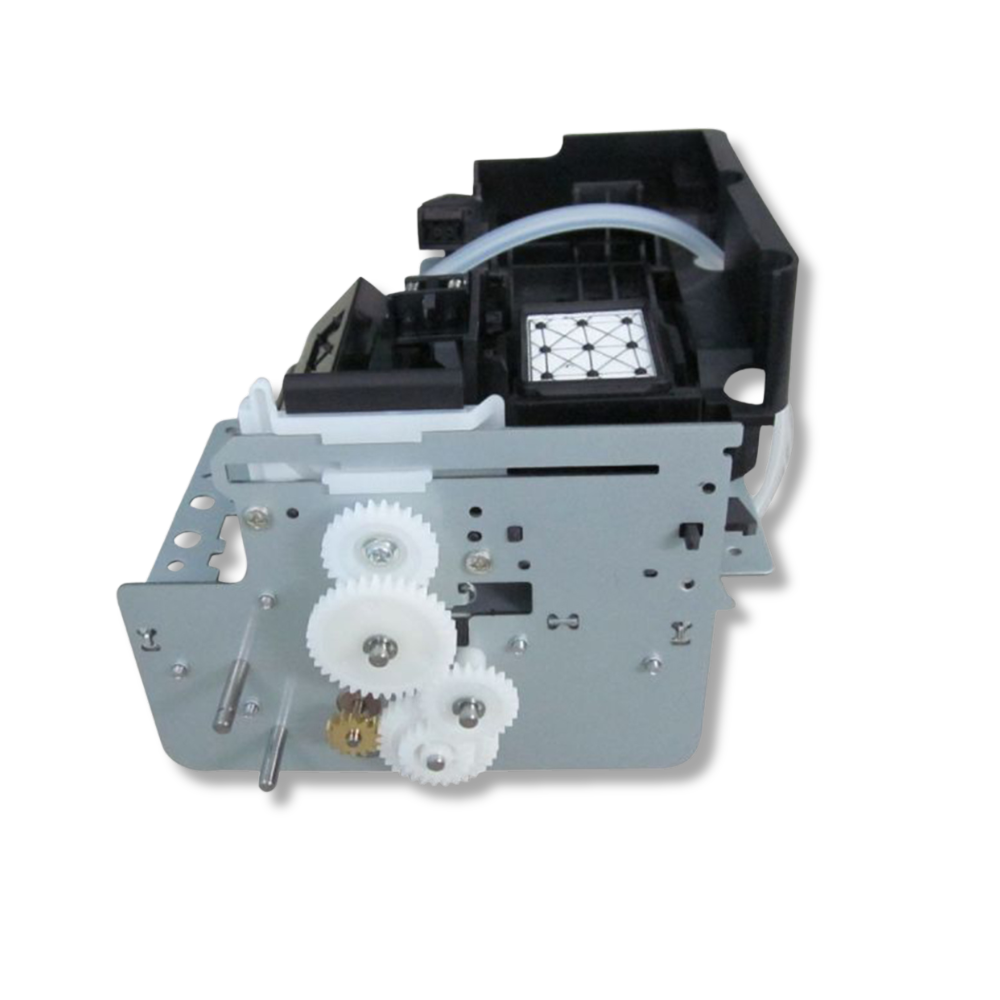

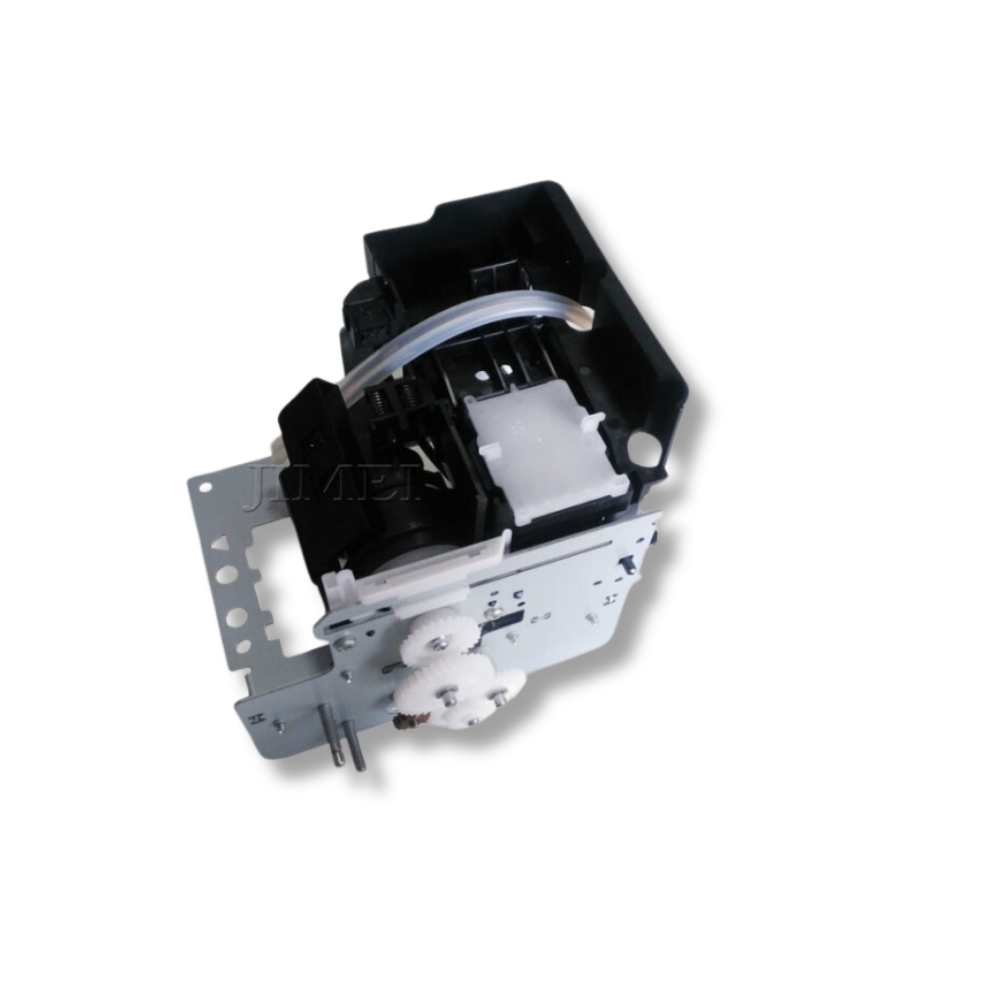

The Mutoh ValueJet Maintenance Assembly (part number DG-41000) is the original Mutoh replacement maintenance station for the VJ-1604, VJ-1614, VJ-1624, and VJ-1324 eco-solvent wide-format printers. This assembly contains the ink pump and pump motor — the core components that drive all printhead maintenance functions including capping, purging, and waste ink removal. This listing is the maintenance assembly without wiper. Every DG-41000 we stock at Digiprint USA is 100% genuine original Mutoh — not aftermarket, not compatible.

Product Details

Part Number Cross-Reference — DG-41000, DF-49686, DG-41149, DG-42985

Multiple Mutoh part numbers appear across service documentation and supplier catalogues for this maintenance station. All refer to the same physical assembly for the VJ-1604/1614/1624/1324 platform:

If your service documentation or prior order references any of these part numbers, the DG-41000 is the correct assembly. Contact us to confirm which variant (with or without wiper) is appropriate for your repair before ordering.

Compatible Printers

• Mutoh ValueJet VJ-1204

• Mutoh ValueJet VJ-1304

• Mutoh ValueJet VJ-1324 / VJ-1324X

• Mutoh ValueJet VJ-1604 / VJ-1604X

• Mutoh ValueJet VJ-1614

• Mutoh ValueJet VJ-1624 / VJ-1624X

What Does the Maintenance Station Do?

The Mutoh ValueJet maintenance station is the central service unit that manages all printhead maintenance functions on the VJ-1604/1614/1624 platform. It contains the cap top assembly (which seals the DX5 printhead during idle to prevent nozzle drying), the ink pump and pump motor (which generate suction for purge cycles and waste ink removal), and the tubing that routes waste ink to the drain tank. When the maintenance station pump or motor fails, the printer loses the ability to perform effective cleaning cycles — ink cannot be purged from the head, waste ink cannot be evacuated, and the cap can no longer maintain the vacuum needed to prevent overnight nozzle drying. Progressive nozzle loss follows rapidly. The maintenance station is the single most critical maintenance component on the ValueJet platform — it is, as Mutoh service specialists note, "the guts of your printer."

Why Genuine Mutoh vs Aftermarket

Aftermarket maintenance stations for the ValueJet platform are widely available but consistently underperform. The pump motor in particular must generate precise suction at consistent pressure across thousands of purge cycles — cheap motors fail prematurely or deliver inconsistent suction that causes incomplete purges and progressive nozzle loss. The cap top rubber in aftermarket units is frequently not solvent-resistant, degrading rapidly on eco-solvent inks and causing sealing failures within weeks. Mutoh service specialists who have tested aftermarket stations consistently recommend against them for this reason. The DG-41000 is the correct OEM part — manufactured to Mutoh's suction pressure specifications and tested with Mutoh's eco-solvent ink chemistry.

Signs Your Maintenance Station Needs Replacing

• Nozzles that fail to recover after multiple cleaning cycles — failing pump cannot generate adequate purge suction

• Cleaning cycles that run but produce no improvement — pump motor failing to prime

• Waste ink not evacuating to the drain — pump blockage or motor failure

• Nozzle drop-out after overnight shutdown — cap top no longer sealing correctly

• Audible pump motor noise changes — grinding, stuttering, or silence during cleaning cycles

• Ink flooding around the cap area — pump backpressure from blockage

Why Buy from Digiprint USA

• 100% genuine original Mutoh DG-41000 — not aftermarket

• In stock in Doral, Miami FL — same day shipping before 2PM EST

• We also stock Mutoh VJ-1604 DX5 printheads, dampers, and wiper blades

• We can confirm DG-41000 vs DF-49686 specification and wiper inclusion before you order

• Ideal for Latin American Mutoh ValueJet operators and service centres using Miami freight forwarders

View our full range of Mutoh ValueJet spare parts and maintenance assemblies stocked by Digiprint USA.

Frequently Asked Questions

What is the difference between DG-41000 and DF-49686?
Both refer to the same Mutoh ValueJet maintenance station assembly for the VJ-1604/1614/1624/1324 platform. DG-41000 is Mutoh's primary part number designation; DF-49686, DG-41149, and DG-42985 are cross-reference numbers used across different service documentation and supplier catalogues for the same physical assembly. The DG-41000 listed here is the assembly without wiper — if you need the wiper included, contact us to confirm which configuration we have in stock and whether a separate wiper is required for your service.

Does this assembly include the cap top?
The DG-41000 is the pump and pump motor assembly. Whether the cap top is included depends on the specific assembly configuration. Contact us to confirm exactly what is included in the current stock unit before ordering, particularly if you are performing a full maintenance station rebuild. We also stock the Mutoh cap head assembly DG-41179 separately for the VJ-1604/1614/1624 platform.

Why is a genuine Mutoh maintenance station recommended over aftermarket?
The pump motor in the maintenance station must generate consistent suction pressure across thousands of purge cycles. Aftermarket pump motors consistently fail prematurely or deliver variable suction that causes incomplete cleanings and progressive nozzle loss — exactly the problem the maintenance station is supposed to prevent. Additionally, aftermarket cap top rubber is frequently not rated for eco-solvent inks and degrades rapidly. Mutoh service specialists who have tested both consistently recommend OEM parts for this assembly specifically. The maintenance station is too critical to the printer's long-term health to economise on.

Do you ship Mutoh ValueJet maintenance assemblies to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse. Ideal for Latin American Mutoh ValueJet operators, wide-format service centres, and eco-solvent print shops using freight forwarders in the Doral area.
