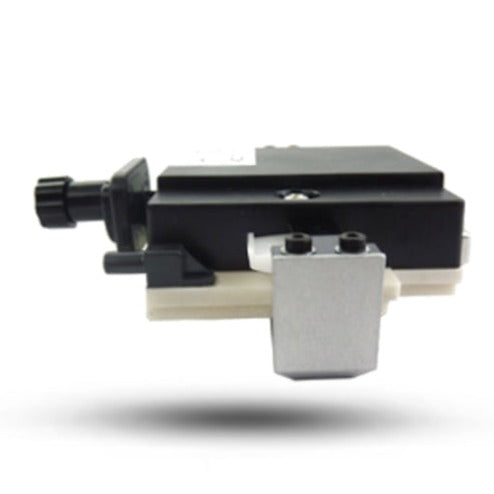

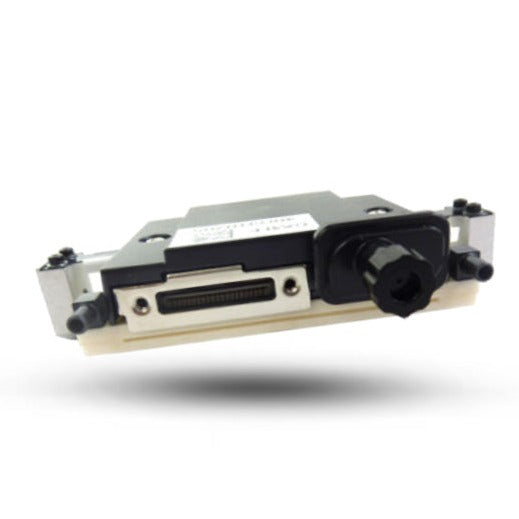

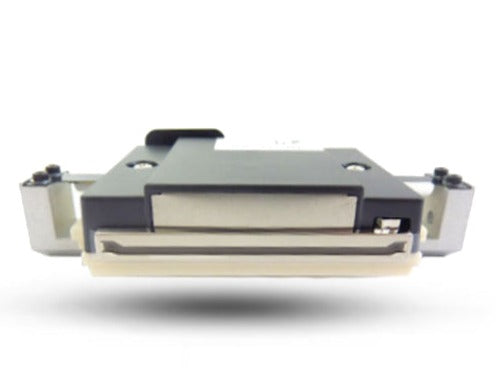

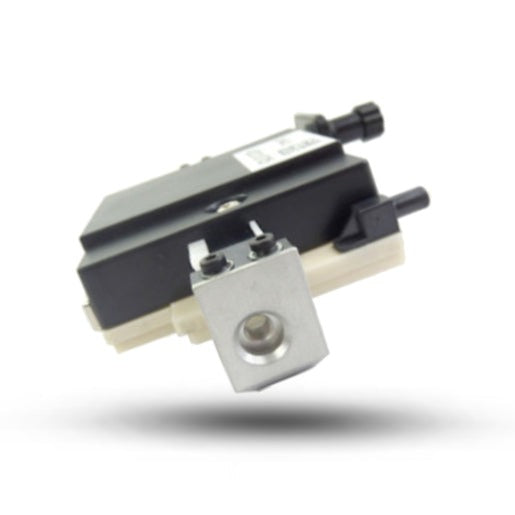

Océ Arizona 350 Kit F/S Printhead CA4 3W3010108132

The Océ Arizona 350 Kit F/S Printhead CA4 (part number 3W3010108132, core reference 3010108132, superseding 3010106120) is the genuine original Océ-supplied printhead kit for the Canon Océ Arizona 300, 318, 350, and 360 UV flatbed series, as well as the Fujifilm Acuity Advance HD2545 and HD2565 range. Built on the Toshiba CA4 single-row multi-drop grayscale micro-piezo platform, this head delivers 318 active nozzles across a 53.6 mm print swathe at 150 dpi native resolution with 16-level grayscale output from 6 pl to 90 pl. Every 3W3010108132 we stock at Digiprint USA is 100% genuine original Océ / Toshiba — not aftermarket, not compatible, not refurbished..

Technical Specifications

Compatible Printers

Canon Océ Arizona Series

• Canon Océ Arizona 300 GT

• Canon Océ Arizona 318 GL

• Canon Océ Arizona 350 GT / 350 XT

• Canon Océ Arizona 360 GT / 360 XT

Fujifilm Acuity Advance Series

• Fujifilm Acuity Advance HD2545

• Fujifilm Acuity Advance HD2545 X2

• Fujifilm Acuity Advance HD2545W

• Fujifilm Acuity Advance HD2565

• Fujifilm Acuity Advance HD2565 X2

• Fujifilm Acuity Advance HYB172

The CA4 (3W3010108132) is specific to the Arizona 300/318/350/360 range and Fujifilm Acuity Advance HD2545/HD2565 series. It is not compatible with Arizona 440, 460, 480, 550, 640, 660, or 1280 series printers, which use CE4-based CE2 heads. Contact us to confirm the correct head for your printer before ordering.

Understanding the Arizona Printhead Family — CA4 vs CE4

The Canon Océ Arizona UV flatbed range uses several different Toshiba printhead platforms across its model generations. The three main types in the current service market are:

The key distinction: the CA4 is a single-row head with 318 nozzles, while the CE4-based CE2 heads have two bonded rows totalling 636 nozzles. The CA4 is used in the earlier, narrower Arizona 300/350 series; the CE4 variants serve the wider, higher-specification 460–1280 range. Installing a CE4 kit in an Arizona 350 (or vice versa) will not work — the heads have different physical profiles, connector configurations, and carriage mounting arrangements.

CA4, CA4W, and CA4NW — Variant Notes

The Toshiba CA4 has been updated through several variant designations over its product life. The original CA4 became the CA4W (with improved water channel for temperature control), and later the CA4NW. All three variants are functionally equivalent for the Arizona 300/350 application and all correspond to Océ part number 3W3010108132. The "new printhead code" referenced in some service documentation as CA4W or CA4NW refers to the same physical assembly supplied under the 3010108132 part number — no configuration change is required when replacing an earlier CA4 with the CA4W or CA4NW variant.

Part Number Supersession — 3010106120 → 3010108132

3W3010108132 is the current active Océ part number, superseding the earlier 3010106120. If your service documentation, printer manual, or prior order shows 3010106120, the 3W3010108132 is the correct current replacement — no configuration changes required on installation.

About the Toshiba CA4 Platform

The Toshiba CA4 is the earlier-generation industrial multi-drop grayscale micro-piezo printhead used in the Arizona 300/350 series — Océ's entry-level UV flatbed platform at the time of deployment. Based on the same Xaar 318 nozzle row architecture (hence the "318 GL" model designation in the Arizona 318 GL), the CA4 delivers the same 16-level grayscale capability and 6–90 pl drop volume range as the later CE4, but in a single-row configuration with 318 nozzles and 169 μm nozzle pitch rather than the CE4's double-row 636-nozzle layout. Despite the lower nozzle count relative to CE4, the CA4's grayscale performance — particularly its 90 pl maximum drop capacity — remains fully capable of producing the smooth tonal gradients and high-coverage flood-fill UV output that the Arizona 300/350 platform is designed for. For shops maintaining Arizona 300 GT, 318 GL, 350 GT/XT, or 360 GT/XT equipment, the 3W3010108132 is the correct and only genuine Océ replacement head.

Applications

• UV flatbed wide-format printing — rigid substrate output on acrylic, foam board, aluminum, glass, wood, and other flat materials on the Arizona 300/350 series

• Retail and display graphics — UV output for POS, exhibition, and display panels with 16-level smooth tonal gradients

• Promotional and industrial UV printing — short-run and prototype production on a wide range of rigid and semi-rigid substrates

• High-coverage UV applications — opaque flood-fill on dark, porous, or textured substrates using the full 90 pl maximum drop capacity

Warranty Notice

This printhead carries a manufacturer warranty. Warranty coverage is voided by: use of non-original or non-compatible inks (including any non-UV or non-oil-based formulations), clogged or damaged nozzles caused by incompatible inks or improper maintenance, misuse, neglect, failure to perform periodic maintenance, improper media loading, and damage from third-party ink systems or bulk ink supplies. Due to the sensitive nature of UV flatbed printhead components, Digiprint USA cannot accept returns or refunds once the printhead has been installed. All sales are final. Contact us to confirm you have the correct head type for your specific Arizona model before ordering.

Why Buy from Digiprint USA

• 100% genuine original Océ 3W3010108132 — not aftermarket, not refurbished

• Current active part — supersedes the discontinued 3010106120

• In stock in Doral, Miami FL — same day shipping before 2PM EST

• Covers Arizona 300/318/350/360 and Fujifilm Acuity Advance HD2545/HD2565 from a single stocked part

• Free technical support — we confirm CA4 vs CE4 head type, CA4W/CA4NW variant equivalence, and 3010106120 supersession before you order

View our full range of genuine Océ Arizona and Fujifilm Acuity printheads stocked by Digiprint USA.

Frequently Asked Questions

What is the difference between the CA4 and CE4 in the Arizona range?
The CA4 (this listing, 3W3010108132) is a single-row Toshiba head with 318 active nozzles used in the Arizona 300/318/350/360 series. The CE4 is a double-row head with 636 active nozzles (CE2 Bond configuration) used in the Arizona 440/460/480/550/640/660/1280 series. They are not physically or electrically interchangeable. The CA4 has a nozzle pitch of 169 μm; the CE4 has 84.5 μm — double the nozzle density. Always confirm your printer model before selecting a replacement head.

What is the difference between CA4, CA4W, and CA4NW?
These are successive Toshiba variant designations for the same printhead generation. CA4W added an improved water channel for temperature control. CA4NW is the most recent variant label. All three are functionally equivalent for Arizona 300/350 applications and all correspond to Océ part number 3W3010108132. When ordering 3W3010108132, you receive the current active CA4 variant — no separate selection is required.

Does 3W3010108132 replace 3010106120?
Yes. 3010106120 is the earlier Océ part number for the CA4 Kit F/S assembly, superseded by 3010108132. If your service records show 3010106120, the 3W3010108132 is the correct current replacement with no configuration changes required.

Why does the Arizona 318 GL model have "318" in its name?
The "318" in Arizona 318 GL refers directly to the Xaar 318 nozzle row architecture of the Toshiba CA4 printhead used in that model. The Arizona 318 GL was an OEM-designated platform built around the 318-nozzle single-row head. This Xaar 318 heritage is reflected in the CA4's nozzle count, nozzle pitch, and the architectural relationship between the Toshiba CA4 and the Xaar 318 printhead — both are single-row heads with 318 nozzles at 169 μm pitch.

Do you ship the Océ Arizona 350 CA4 printhead to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse. Our location is ideal for Latin American UV flatbed operations, Arizona service centres, and Fujifilm Acuity Advance users using freight forwarders in the Doral area.
