Ricoh Printheads — Gen4, Gen5, Gen6, TH5241 & GH2220

Genuine Ricoh printheads for industrial UV, solvent, DTG and direct-to-shape wide-format printers. Same-day shipping from our Doral, Florida warehouse on orders placed before 2 PM EST.

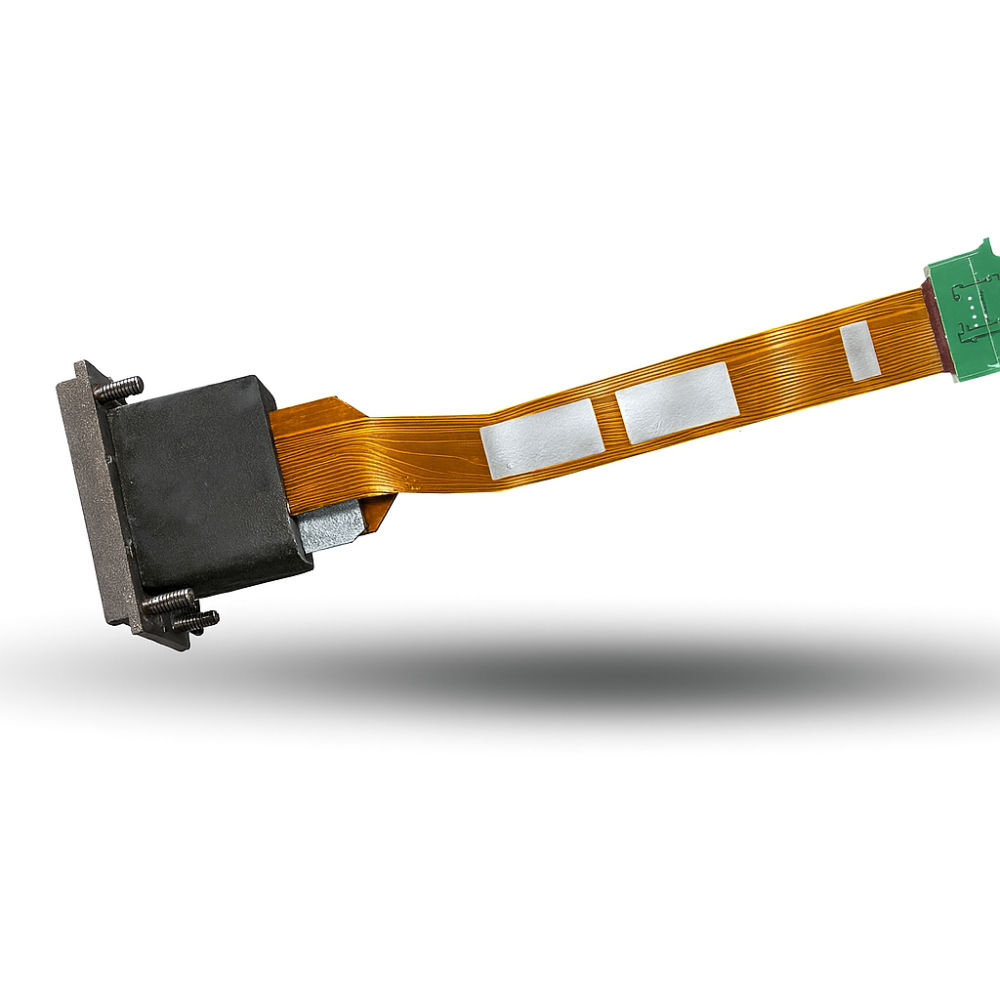

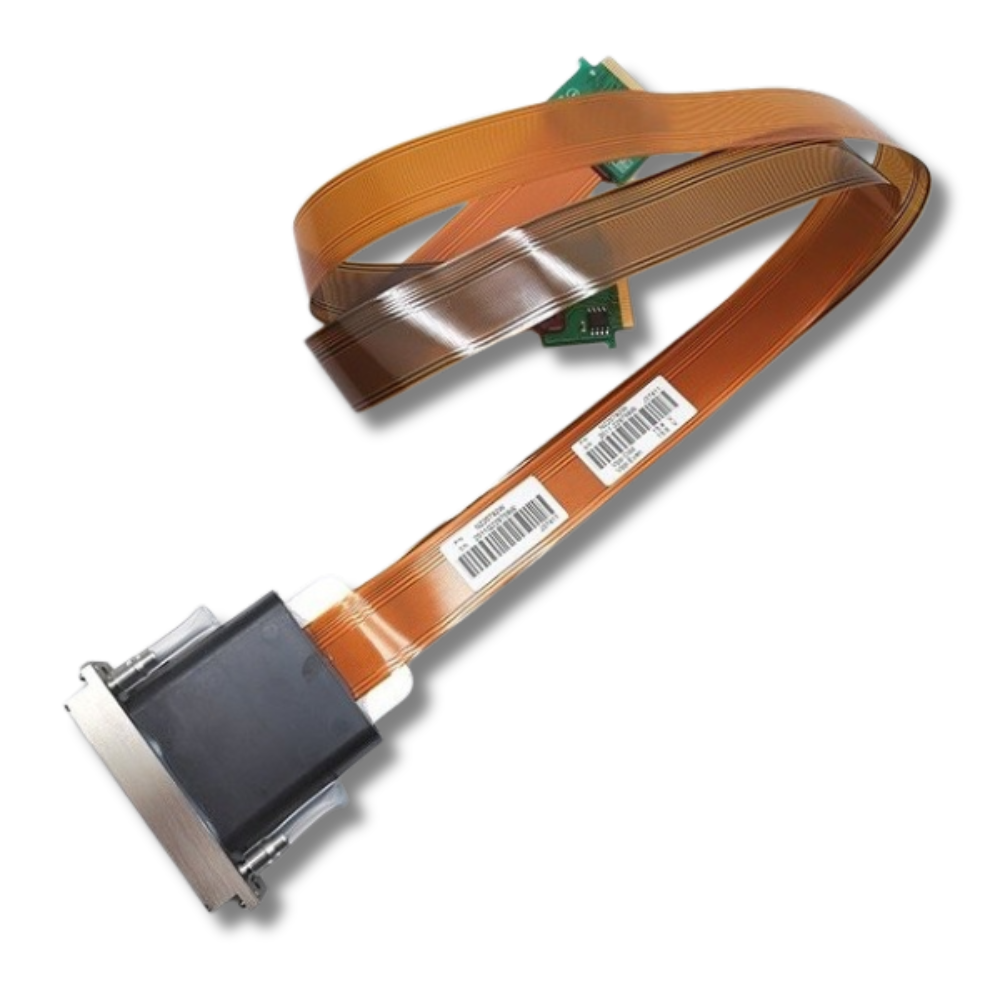

Gen4 (MH2420) for legacy industrial UV machines. Gen5 (MH5420) in 248mm, 500mm and 650mm cable lengths for Agfa, CET, Handtop and Docan UV systems. Gen6 (MH5320) for next-generation UV flatbeds requiring a 5pl minimum drop and extended service life. TH5241 (Gen5i) for compact UV flatbeds, sign graphics, DTG and direct-to-shape applications — Ricoh's first thin-film MEMS piezo head with 4-color single-head capability. GH2220 for compact DTG systems including the Ricoh Ri1000x and Ri2000. All heads are 100% genuine original Ricoh — never refurbished or remanufactured.

Browse the printheads below, or search by part number (e.g. MH2420, MH5420, MH5320, TH5241, GH2220, N221414, J376-03).

Frequently Asked Questions

Which Ricoh printhead is in my printer?

Ricoh industrial printheads are used across many OEM printer brands. Gen4 (MH2420) is the legacy workhorse for older industrial UV machines. Gen5 (MH5420) is the most widely-used current head — found in Agfa Jeti Mira/Titan, CET Color Q5, Handtop HT-series, Akad Novajet and Docan UV printers (1,280 nozzles, 4-color, UV & solvent). Gen6 (MH5320) is the latest UV head — used in Hollanders Colorbooster and newer industrial flatbeds (5pl droplet, 600dpi, 50kHz, 2× the service life of the previous Gen5.5). TH5241 (Gen5i) is a thin-film MEMS piezo head used in compact UV flatbeds, sign graphics scanners, and direct-to-shape printers — confirm by checking the label on your existing head. GH2220 is a compact 384-nozzle UV head used in Oric, WER, Winjet, Yuxunda, Xante X32 and Ricoh DTG Ri1000x/Ri2000.

What's the difference between Ricoh Gen5 and Gen6?

Both are 1,280-nozzle 600dpi industrial heads, but Gen6 is the newer generation. Gen5 (MH5420) supports UV and solvent inks with a 7–35pl drop volume and up to 60kHz jetting. Gen6 (MH5320) is UV-only, with a finer 5pl minimum droplet for less graininess, up to 50kHz jetting, and roughly double the service life of the MH5421/MH5441 it replaced. Gen6 ships as two separate SKUs — the head (J376-03) and the cable (J352-04). If your printer was designed for Gen5, you cannot drop in a Gen6 without firmware and driver changes.

What is the Ricoh TH5241 (Gen5i) printhead?

The TH5241 is Ricoh's first thin-film piezoelectric MEMS printhead — a different technology from the stacked PZT construction used in the Gen5 (MH5420) and Gen6 (MH5320). It has 1,280 nozzles in four isolated rows, which means a single TH5241 can jet up to four colors independently. Minimum drop size is 3pl (vs 7pl for Gen5), making it better suited to high-resolution work on compact and scanning UV systems. It is commonly called "Gen5i" in the market, though Ricoh does not use that name officially. The TH5241 is not interchangeable with Gen5 or Gen6 — different board, waveform and connector. Always confirm by reading the label on your existing head. See our full TH5241 technical reference guide for specs, comparison tables and application guidance.

Which cable length do I need for my Ricoh Gen5 printhead?

Cable length depends on your printer's carriage layout. Common Gen5 (MH5420) cable lengths are 148mm (248mm total), 400mm (500mm total), and 650mm. Check the existing cable in your machine before ordering — using too short a cable strains the connector, and too long creates slack that can interfere with the carriage. If you're unsure, contact us with your printer model and we'll confirm before you order.

Are these Ricoh printheads genuine?

Yes. All Ricoh printheads sold by Digiprint USA are genuine, factory-sealed Ricoh originals with their original serial numbers — never used, refurbished, or altered. Each head ships with a manufacturer warranty.

How long should a Ricoh industrial printhead last?

Ricoh industrial heads have some of the longest lifespans in the market. Gen5 (MH5420) typically lasts 2+ years in production environments. Gen6 (MH5320) is rated for roughly double the service life of the Gen5.5 it replaced — often 3–4 years in well-maintained machines. GH2220 typically lasts 1–2 years. Using approved inks, running daily nozzle checks, and keeping the integrated heater calibrated are the biggest factors.

What is the warranty and return policy on Ricoh printheads?

All Ricoh printheads are covered under warranty, with a specific RMA process — we'll guide you through it. Warranty requires use of approved inks; non-approved inks or tampered/missing serial numbers void coverage. Printheads cannot be returned once installed or used. Sealed, unused printheads are eligible for store credit only, not a refund to the original payment method. Inspect your delivery on arrival; hidden defects must be reported within 48 hours. See our full refund and return policy.
