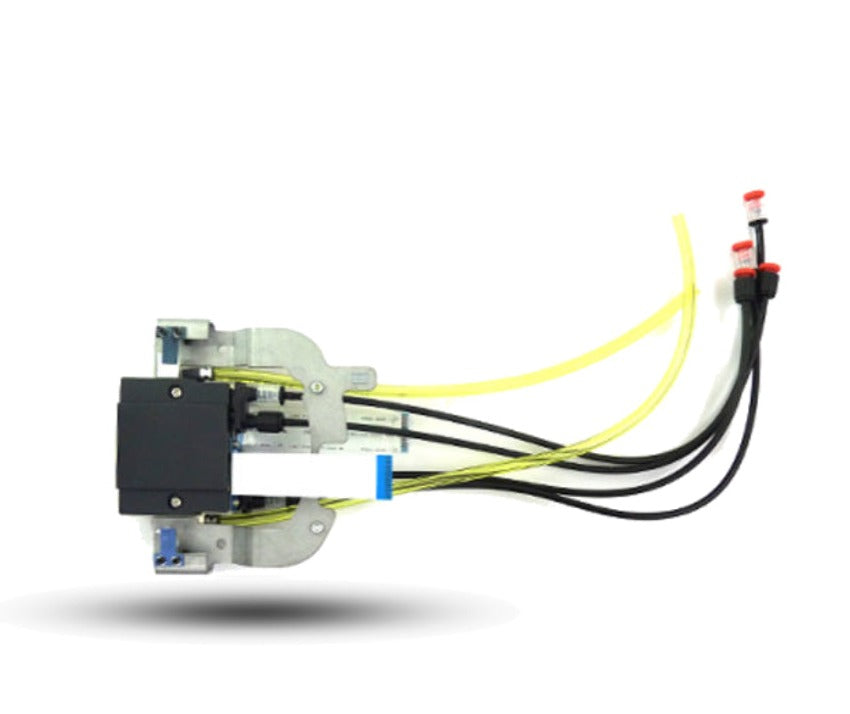

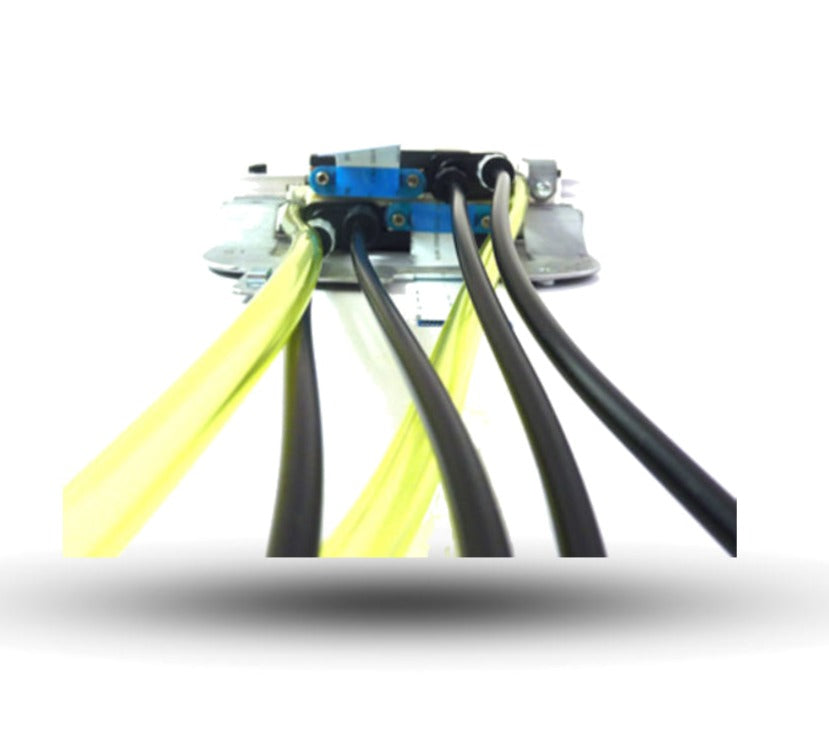

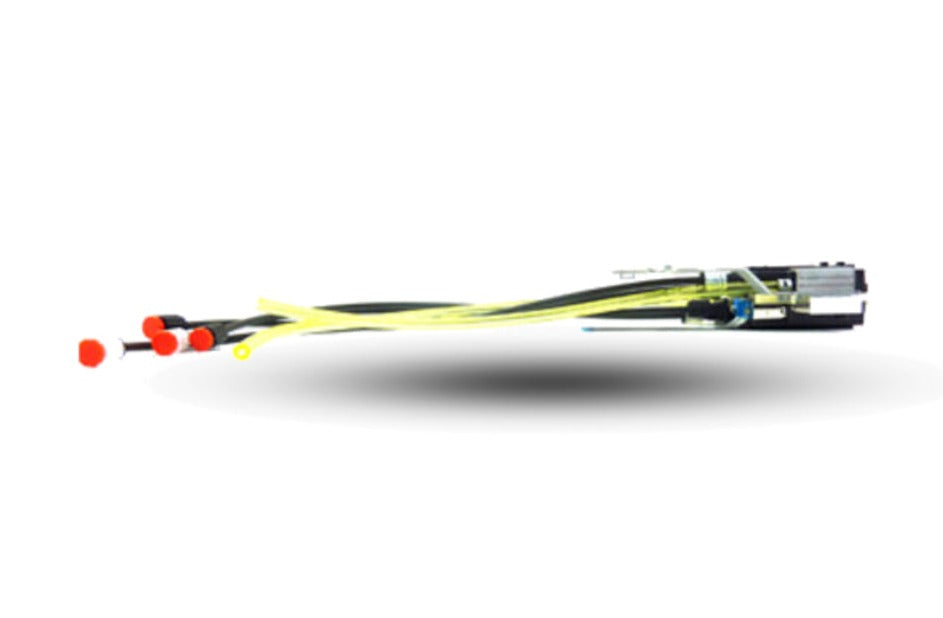

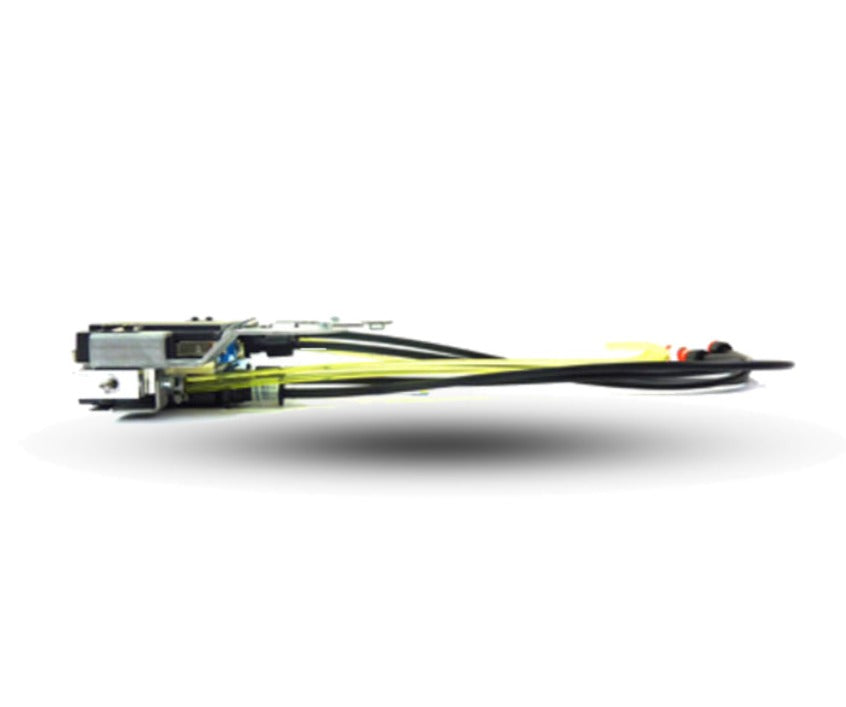

Océ Arizona 550 GT Kit F/S Printhead CE2 Bond 3W3010112660

The Océ Arizona 550 GT Kit F/S Printhead CE2 Bond (part number 3W3010112660, core reference 3010112660) is the genuine original Océ-supplied printhead kit for the Canon Océ Arizona 550 GT and 550 XT UV flatbed printers, as well as the Fujifilm Acuity Advance HS HD3545 and Acuity Advance Select series. The CE2 Bond designation identifies this as the bonded double-row Toshiba CE4 printhead configuration used in the Arizona 550's standard frontside (F/S) carriage assembly — 636 active nozzles across a 53.7 mm print swathe, delivering 16-level grayscale multi-drop output from 6 pl to 90 pl at native 150 dpi (up to 300 dpi maximum). Every 3W3010112660 kit we stock at Digiprint USA is 100% genuine original Océ — not aftermarket, not compatible, not refurbished.

Technical Specifications

Specification	Detail
Océ Part Number	3W3010112660 (core: 3010112660; cross-ref: 3010122104)
Underlying printhead	Toshiba TEC CE4 — multi-drop grayscale micro-piezo
Configuration	CE2 Bond — double-row (2 × 318) bonded nozzle configuration
Assembly type	Kit F/S — Frontside Standard kit assembly
Active nozzles	636
Print swathe width	53.7 mm
Nozzle pitch	84.5 μm
Native resolution	150 dpi
Maximum resolution	300 dpi
Grayscale levels	16 (multi-drop — not binary)
Drop volume range	6 pl – 90 pl
Firing frequency	2.8 – 28 kHz
Ink compatibility	UV-curable pigment ink and oil-based pigment ink
Printhead weight	148 g
Dimensions	85 × 70 × 23 mm
Manufacturer warranty	Yes
Country of origin	Japan
Condition	100% genuine original Océ / Toshiba, brand new

Compatible Printers

Canon Océ Arizona Series

• Canon Océ Arizona 460 GT

• Canon Océ Arizona 460 XT

• Canon Océ Arizona 550 GT

• Canon Océ Arizona 550 XT

• Canon Océ Arizona 660 GT

• Canon Océ Arizona 660 XT

Fujifilm Acuity Advance Series

• Fujifilm Acuity Advance HS HD3545

• Fujifilm Acuity Advance HS HD3545 X2

• Fujifilm Acuity Advance Select HD4006

• Fujifilm Acuity Advance Select HD4226

• Fujifilm Acuity Advance Select HD5006

• Fujifilm Acuity Advance Select HD5226

The Arizona 460/550/660 and Fujifilm Acuity Advance series all share the same Toshiba CE4 print engine. Contact us to confirm the correct kit configuration (F/S vs XTS) for your specific printer model and carriage version before ordering.

Decoding the Name — Kit F/S, CE2 Bond, and 3W3010112660

Kit F/S (Frontside Standard Kit): The Arizona 550 GT/XT carriage uses Toshiba CE4 printheads in a multi-head array. "F/S" designates the standard carriage configuration — as distinct from "XTS" (extended) configurations used in higher-specification Arizona models. This kit is the complete printhead replacement assembly for the standard frontside position in the Arizona 550 GT/XT carriage.

CE2 Bond: CE2 refers to the double-row nozzle bonding of two CE (single-row, 318-nozzle) dies onto a single printhead substrate, producing the 636-nozzle CE4 used in the Arizona platform. The "Bond" designation indicates this is the bonded (dual-row) assembly rather than a single-row CE configuration. The result is 636 active nozzles across a 53.7 mm swathe — the specific nozzle geometry that gives the Arizona 550 its print quality characteristics.

3W3010112660: This is the Océ-assigned part number. The "3W" prefix is Océ's standard spare parts prefix. The core number 3010112660 is the unique identifier for this specific printhead kit. The cross-reference number 3010122104 appears in some Toshiba and third-party catalogues for the same assembly. Both numbers refer to the same CE2 Bond F/S kit for the Arizona 550.

About the Toshiba CE4 Platform

The Toshiba CE4 is Toshiba TEC's industrial multi-drop grayscale piezo-electric inkjet printhead — the print engine at the core of the Canon Océ Arizona UV flatbed platform for over a decade. Unlike binary printheads (which can only jet a dot or not), the CE4 is a genuine grayscale head capable of producing 16 discrete levels of grey by varying the number and size of ink drops deposited per dot location, from a minimum of 6 pl to a maximum of 90 pl. This 6–90 pl variable drop range — the widest of any head in its class at time of deployment — is what gives the Arizona 550 GT its ability to produce smooth photographic gradients in highlight areas (fine 6 pl drops) and high-density ink coverage in saturated shadow areas (up to 90 pl stacked drops) within the same pass, without a speed trade-off. The firing frequency range (2.8–28 kHz) allows the printer's RIP to select appropriate fire rates per pass type. This architecture is why the Arizona platform became the benchmark for UV flatbed quality in retail, display, and fine graphics applications.

Arizona 550 vs Arizona 460 vs Arizona 660 — Same Head

The Canon Océ Arizona 460, 550, and 660 GT/XT models all use the same Toshiba CE4 CE2 Bond printhead assembly — the difference between these models lies in the number of heads in the carriage array, media handling capabilities, and maximum print speed, not in the individual head specification. A shop running an Arizona 460 GT, 550 GT, or 660 GT can source one part number — 3W3010112660 — for head replacement on any of these platforms. Similarly, the Fujifilm Acuity Advance HS and Advance Select series are Fujifilm-branded UV flatbed printers built on the same Toshiba CE4 print engine platform; the 3W3010112660 kit is the correct replacement for those models as well.

Applications

• UV flatbed wide-format printing — rigid substrate output on acrylic, foam board, aluminum, glass, wood, and other flat materials on the Arizona 550 GT/XT

• High-quality retail and display graphics — photographic-quality UV output for retail POS, display graphics, and exhibition panels requiring smooth tonal gradients

• Fine art and photography reproduction — 16-level grayscale multi-drop output for gallery-quality giclée on rigid substrates

• Signage and promotional printing — high-coverage flood-fill UV output at up to 90 pl for dense opaque applications on dark or textured substrates

• Commercial proofing and sample production — contract proof-quality output for packaging, label, and display pre-press workflows

Warranty Notice

This printhead carries a manufacturer warranty. Warranty coverage is voided by: use of non-original or non-compatible inks (including any non-UV or non-oil-based ink formulations), clogged or damaged nozzles caused by incompatible inks or improper maintenance, misuse, neglect, failure to perform periodic maintenance as specified by Océ, improper media loading, and damage caused by third-party ink systems or bulk ink supplies. Due to the sensitive nature of UV flatbed printhead components, Digiprint USA cannot accept returns or refunds once the printhead has been installed. All sales are final. Contact us with any compatibility or configuration questions before ordering.

Why Buy from Digiprint USA

• 100% genuine original Océ 3W3010112660 — not aftermarket, not refurbished

• In stock in Doral, Miami FL — same day shipping before 2PM EST

• Covers Arizona 460, 550, and 660 GT/XT and the full Fujifilm Acuity Advance series from a single stocked part

• Ideal for Latin American UV flatbed print operations and Arizona service centres using Miami freight forwarders

• Free technical support — we clarify Kit F/S vs XTS configurations, confirm 3010112660 vs 3010122104 cross-reference, and verify compatibility for your specific Arizona or Acuity model before you order

View our full range of genuine Océ Arizona and Fujifilm Acuity printheads stocked by Digiprint USA.

Frequently Asked Questions

What does "Kit F/S Printhead CE2 Bond" mean?
Kit F/S = Frontside Standard — the complete printhead kit for the standard carriage position in the Arizona 550 GT/XT (as opposed to XTS extended configurations). CE2 Bond = the bonded double-row assembly of two CE single-row Toshiba dies, producing 636 active nozzles. Together, "Kit F/S Printhead CE2 Bond" describes the complete, ready-to-install Toshiba CE4 printhead assembly for the standard Arizona 550 carriage.

What is the relationship between 3W3010112660 and 3010122104?
Both refer to the same Toshiba CE4 CE2 Bond printhead assembly for the Arizona 550/460/660 platform. 3W3010112660 is the Océ-assigned spare parts number (with the standard "3W" Océ prefix). 3010122104 is the cross-reference number used in some Toshiba and third-party service catalogues for the same part. If your service documentation shows either number, contact us to confirm the current active kit before ordering.

Does this printhead fit the Arizona 460 and 660 as well as the 550?
Yes. The Arizona 460 GT/XT, 550 GT/XT, and 660 GT/XT all use the same Toshiba CE4 CE2 Bond printhead. The difference between these models is the number of heads in the carriage and media handling features — not the individual head specification. The 3W3010112660 is the correct replacement head for all three platform variants.

What makes the Toshiba CE4 a grayscale head?
The Toshiba CE4 can produce 16 discrete levels of grey by varying the number and size of ink drops deposited per dot — from 6 pl (very fine, for highlights and fine detail) up to 90 pl (high-density stacked drops, for saturated shadows and opaque coverage). This is fundamentally different from binary heads, which can only jet a fixed-size drop or nothing. The 16-level grayscale capability of the CE4 is what enables the Arizona 550 GT to produce smooth photographic gradients and high-density solid areas within the same print pass, without switching modes or speed settings.

Do you ship the Océ Arizona 550 printhead to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse. Our location is ideal for Latin American UV flatbed operations, Arizona service centres, and commercial print shops using freight forwarders in the Doral area.
