}Brand New I3200 Hoson Board for 4 Head DTF Printer Assembly Kit
Brand: Epson
Tax excluded. Shipping calculated at checkout
Availability: In stock
%20control%20electronics%20for%20Chinese-manufactured%20DTF%20printers%20equipped%20with%20four%20Epson%20i...
){kind=link}
The Hoson i3200-A1 4-Head DTF Printer Board Assembly Kit is a complete, brand new set of Hoson (Hosonsoft/BYHX) control electronics for Chinese-manufactured DTF printers equipped with four Epson i3200-A1 printheads on the 24" (60cm) platform. This kit provides all the boards required to fully replace or upgrade the electronics in a 4-head i3200-A1 DTF printer — covering the motherboard (main control), carriage circuit boards (head data transmission), and supporting interface components. Compatible with all Chinese 4-head i3200-A1 DTF printers using Hoson board architecture, including Audley, MyColor, Yinstar, and other OEM brands built on the same platform.
Product Details
| Specification | Detail |
|---|---|
| Kit type | Complete board assembly kit — all boards for a 4-head i3200-A1 DTF printer |
| Compatible printheads | 4× Epson i3200-A1 (quad-head DTF configuration) |
| Print width | 24 inches (60cm) — standard 4-head DTF platform |
| Compatible printer types | Chinese 4-head i3200-A1 DTF printers with Hoson/BYHX electronics |
| Condition | Brand new — original Hoson electronics |
| Interface | USB / Ethernet (TCP/IP) — RIP software compatible |
| RIP compatibility | Maintop, Hosonsoft RIP, Photoprint |
Compatible Printers
All Chinese 24" DTF printers with 4 i3200-A1 printheads using Hoson electronics
Audley Series
• Audley S2030-3 / E2070-3 / S7070-3 and other Audley 4-head i3200-A1 DTF models
MyColor Series
• MyColor M2030 / M2070-3 / M2070-3Pro
Yinstar Series
• Yinstar YD2030-3 / YD2070-3 / YD7070-3
Other Brands
• Yuxunda, Fedar, Colorsun, Sinocolor, and other Chinese OEM brands using Hoson 4-head i3200-A1 board architecture — contact us with your printer brand and model to confirm compatibility before ordering

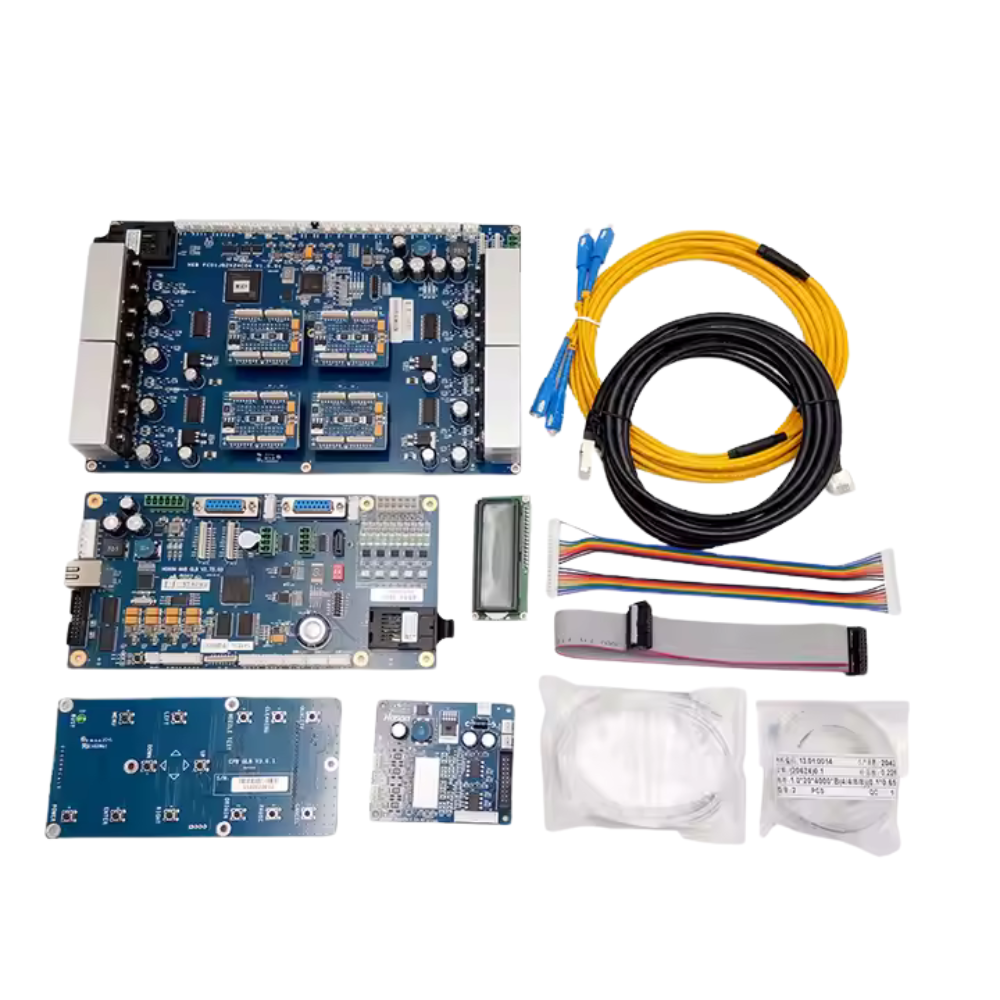

What Is Included in the Board Assembly Kit
The 4-head Hoson board assembly kit provides the complete set of control electronics required for a 4-head i3200-A1 DTF printer. A full kit typically includes:
| Component | Function | Qty (typical) |
|---|---|---|

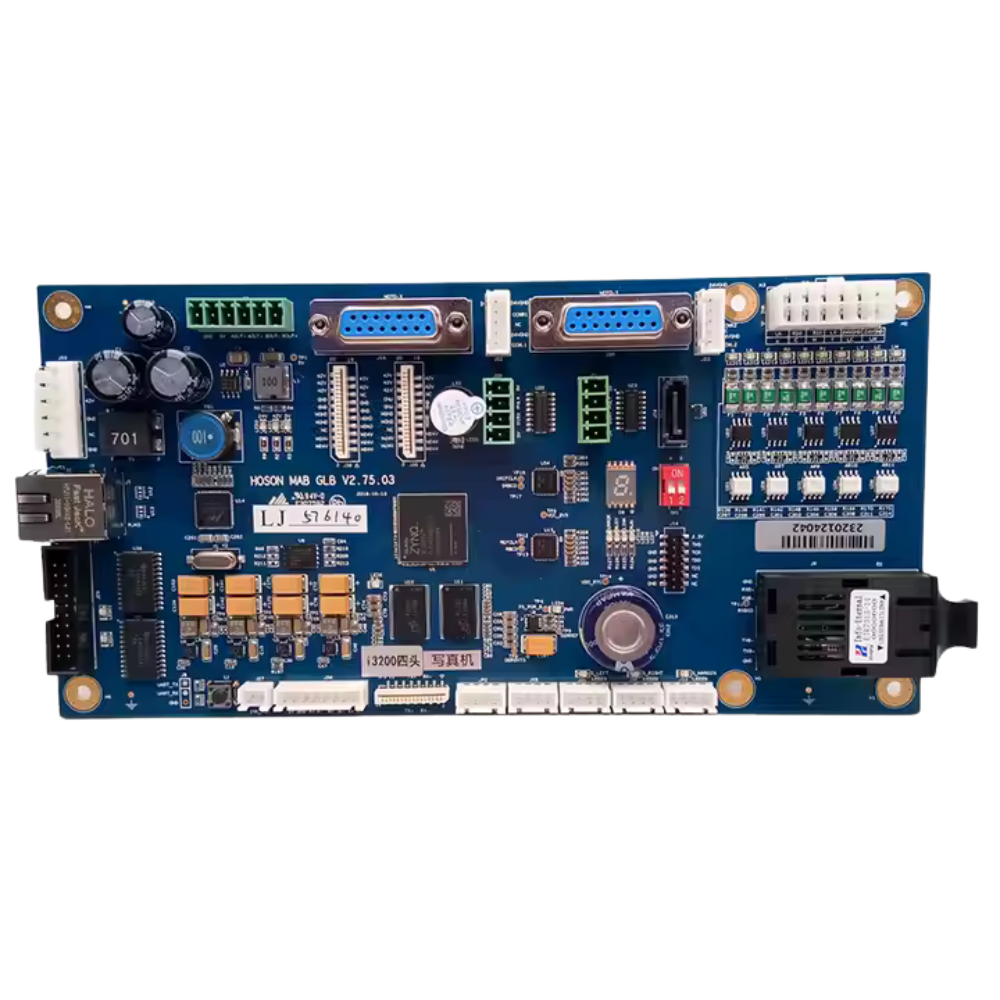

| Motherboard | Main control — motion, ink system, interface, white ink circulation | 1 |

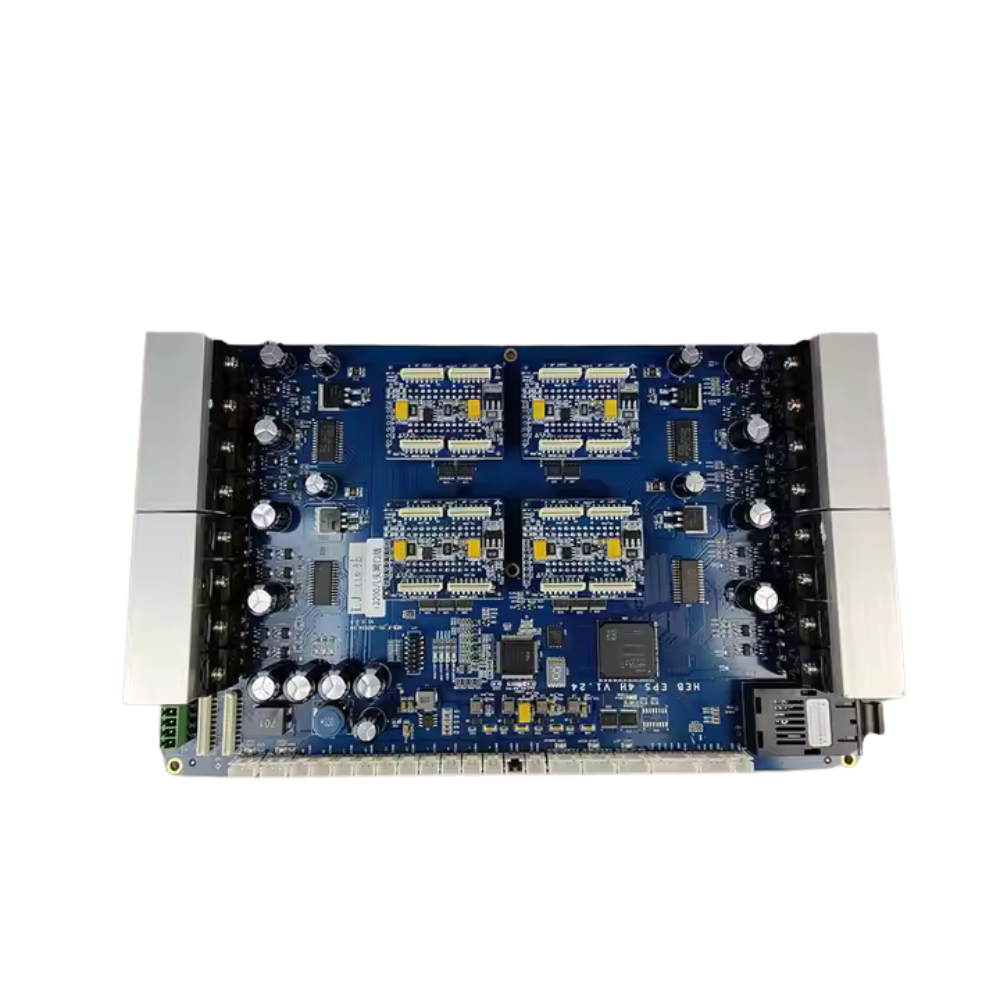

| Carriage circuit board(s) | Rides on carriage — transmits firing signals to i3200-A1 heads via 14-pin cables | 1–2 (covers 4 heads) |
| Printhead adapter boards | Interface between carriage board and each i3200-A1 connector | 4 (one per head) |
Contact us to confirm the exact contents of this kit before ordering — kit composition varies between Hoson versions and configurations.
Hoson Electronics Platform — Why It Powers Most Chinese DTF Printers
Hoson (also known as Hosonsoft and BYHX) is the dominant electronics supplier for Chinese-manufactured DTF, UV DTF, and eco-solvent wide-format printers. Rather than designing proprietary electronics, most Chinese DTF printer OEMs — Audley, MyColor, Yinstar, Yuxunda, Fedar, Colorsun, Sinocolor, and dozens of others — integrate Hoson's standardised board architecture into their machines. This means the same Hoson board kit can serve multiple brands, and replacement parts are widely available. The 4-head board kit supports 24" production DTF printers running four i3200-A1 heads simultaneously — the configuration used in high-throughput production shops requiring maximum print speed and coverage on a 24-inch film path.
4-Head vs 2-Head Hoson Board Kits
| Kit | Heads Supported | Typical Application |
|---|---|---|
| 4-head kit (this listing) | 4× i3200-A1 | High-production 24" DTF — maximum throughput |
| 2-head kit | 2× i3200-A1 | Standard production 24" DTF — CMYK + White dual head |
| Individual motherboard | 2× i3200-A1 (LJ-576565) | Motherboard replacement only — dual-head configuration |
| Individual carriage board | 2× i3200-A1 (LJ-111124/111126) | Carriage board replacement only |
When to Use a Complete Board Kit vs Individual Board Replacement
Full board kit: When building a new DTF printer from components, when the printer has experienced catastrophic electronics failure affecting multiple boards simultaneously, or when upgrading from an older Hoson board version to a current generation across the full printer system.
Individual board replacement: When a specific board has failed and the others are confirmed working — order only the failed component (motherboard, carriage board, or adapter board) to minimise cost and replacement scope. See our individual Hoson board listings for single-component replacements.
Signs Your 4-Head DTF Printer Needs Board Replacement
• Printer fails to power on or loses power intermittently — possible motherboard failure
• RIP software cannot establish communication via USB or Ethernet
• One or more heads showing zero nozzle firing despite correct cable and head installation — possible carriage board or adapter board failure
• Erratic carriage movement or motor errors — motion control failure on motherboard
• White ink circulation system not activating despite functional pump
• Multiple simultaneous board failures following power surge, lightning strike, or liquid ingress
Why Buy from Digiprint USA
• Brand new original Hoson electronics — not used, not refurbished
• Complete 4-head kit — all boards for a full 4-head i3200-A1 printer build or complete electronics replacement
• In stock in Doral, Miami FL — same day shipping before 2PM EST
• We also stock individual Hoson boards (LJ-576565 motherboard, LJ-111124/111126 carriage boards, adapter boards) for single-component replacements
• Contact us with your printer model and current board version before ordering to confirm full compatibility
• Ideal for Latin American DTF service technicians, printer builders, and production facilities using Miami freight forwarders
View our full range of DTF printer electronics and spare parts stocked by Digiprint USA.
Frequently Asked Questions
What is the difference between this 4-head kit and the individual Hoson board listings?
The individual listings (motherboard LJ-576565, carriage boards LJ-111124/111126, adapter board) are single-component replacements for specific failed boards in 2-head configurations. This 4-head assembly kit provides a complete set of all boards needed for a 4-head i3200-A1 printer — used for building new printers from components, upgrading an entire board generation simultaneously, or replacing boards after catastrophic multi-board failure. If only one specific board has failed, order the individual component instead.
Does this kit work with all 4-head i3200-A1 DTF printers?
This kit is compatible with Chinese 4-head i3200-A1 DTF printers using Hoson/BYHX electronics — including Audley, MyColor, Yinstar, and other OEM brands built on the Hoson platform. However, Hoson produces multiple board versions and firmware generations. Always confirm your printer's current board version before ordering. Contact us with your printer brand, model, and any board version numbers visible on the existing boards — we will confirm compatibility before you order.
Can this board kit be used for UV DTF or eco-solvent printers, not just DTF?
Hoson board kits are available in water-based (DTF/DTG), UV, and eco-solvent configurations. Confirm which ink system your 4-head printer uses before ordering — UV and eco-solvent configurations may require specific board variants. Contact us with your printer's ink type and model to confirm the correct kit for your application.
Do you ship Hoson board kits to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse. Ideal for Latin American DTF service technicians, printer builders, and high-production DTF operations using freight forwarders in the Doral area.
