Cjv300 Pressure Damper Assy - M022253

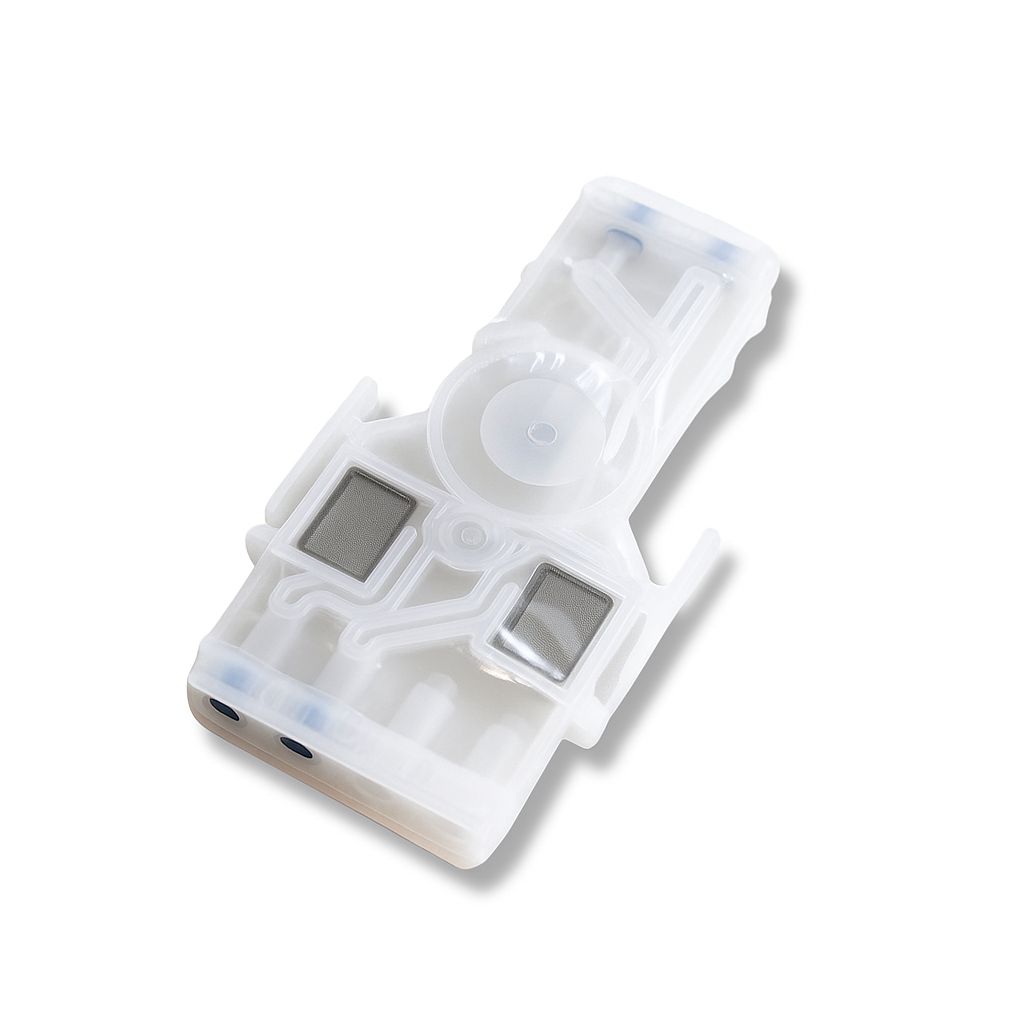

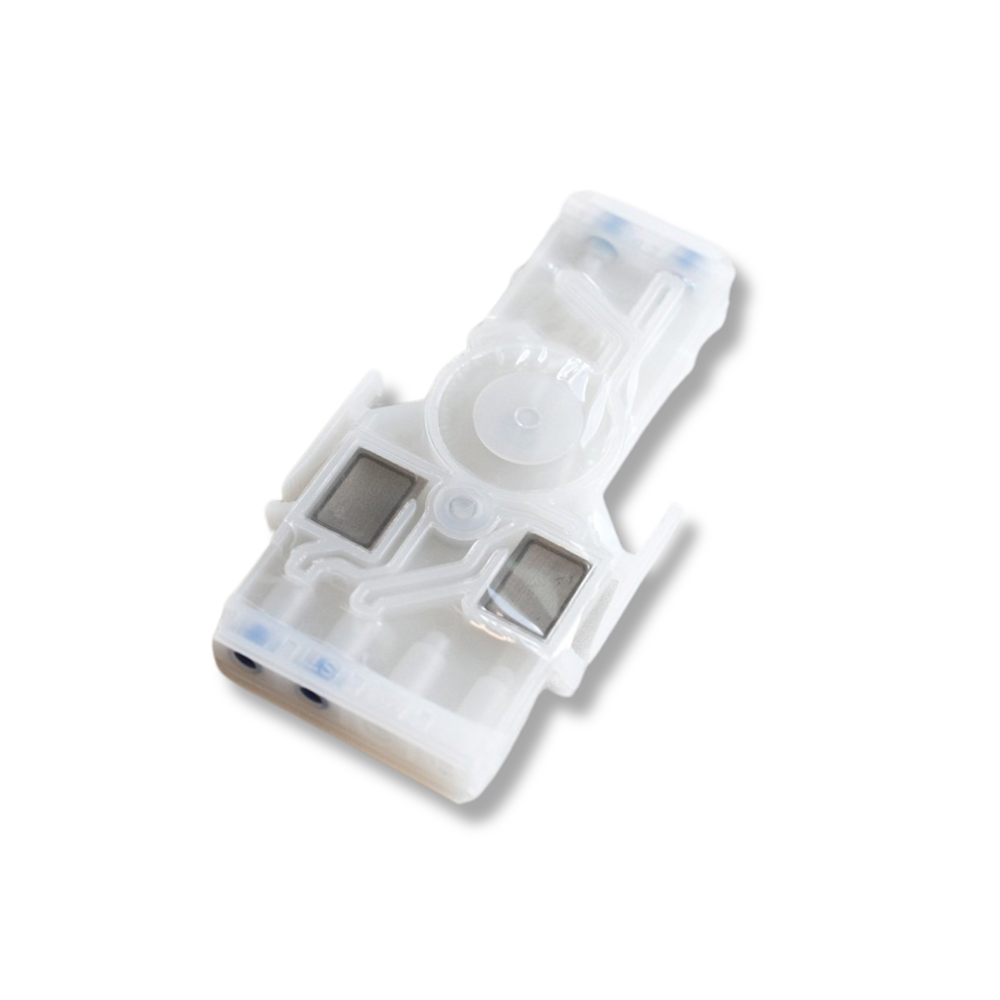

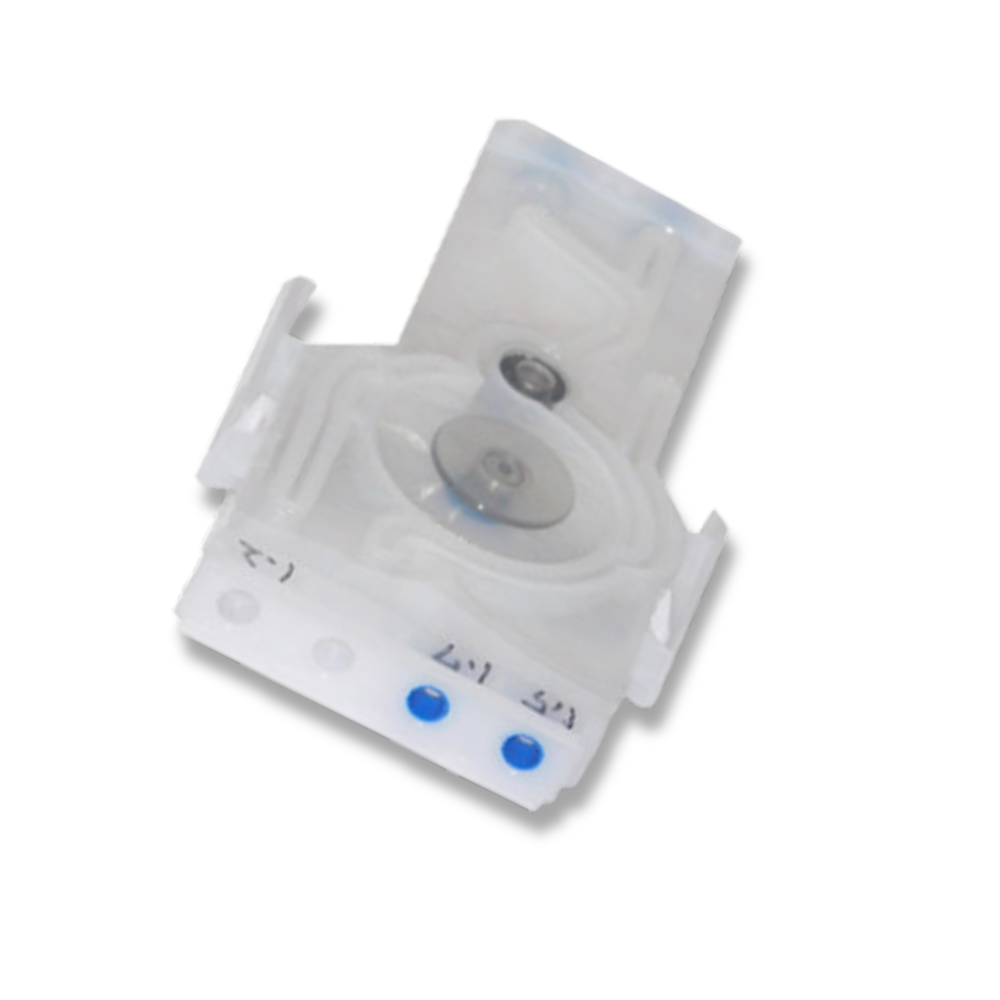

The Mimaki CJV300 Pressure Damper Assy (part number M022253, replacing earlier M015001) is the genuine original Mimaki replacement pressure damper assembly for the Epson DX7-based Mimaki CJV300, CJV150, JV300, JV150, JV100, TS100-1600, and TS55-1800 wide-format eco-solvent and dye-sublimation printers. This is a pressure-regulated damper assembly — Mimaki's term for a damper that actively maintains ink delivery pressure between the ink supply system and the DX7 printhead, preventing pressure spikes, air ingestion, and flow inconsistency. Every M022253 we stock at Digiprint USA is 100% genuine original Mimaki — not aftermarket, not compatible.

M022253 is the current Mimaki part — replacing discontinued M015001. If your service documentation, printer manual, or prior order references M015001, M022253 is the correct current replacement — no configuration changes required. Both numbers refer to the same pressure damper assembly for the CJV300/JV300/JV150/CJV150 platform.

Product Details

Specification	Detail
Mimaki Part Number	M022253 (replaces discontinued M015001)
Assembly type	Pressure Damper Assy — pressure-regulated ink delivery
OEM status	100% genuine original Mimaki
Compatible printhead	Epson DX7 (Mimaki JV150/JV300/CJV150/CJV300 generation)
Ink compatibility	Eco-solvent / mild solvent; dye-sublimation (TS100-1600, TS55-1800)
Replacement interval	Replace at every printhead installation; replace when ink flow or pressure symptoms appear

Part Number Supersession

Part Number	Status
M015001	Discontinued — superseded by M022253
M022253 (this listing)	Current active Mimaki part

Compatible Printers

Mimaki CJV300 Series (Print-and-Cut, Eco-Solvent)

• Mimaki CJV300-130 / CJV300-130 Plus / CJV300-130BS

• Mimaki CJV300-160 / CJV300-160 Plus / CJV300-160BS

Mimaki CJV150 Series (Print-and-Cut, Eco-Solvent)

• Mimaki CJV150-75 / CJV150-75BS

• Mimaki CJV150-107 / CJV150-107BS

• Mimaki CJV150-130 / CJV150-130 Plus / CJV150-130BS

• Mimaki CJV150-160 / CJV150-160 Plus / CJV150-160BS

Mimaki JV300 Series (Print Only, Eco-Solvent)

• Mimaki JV300-130 / JV300-130 Plus / JV300-130BS

• Mimaki JV300-160 / JV300-160 Plus / JV300-160BS

Mimaki JV150 Series (Print Only, Eco-Solvent)

• Mimaki JV150-130 / JV150-130 Plus / JV150-130BS

• Mimaki JV150-160 / JV150-160 Plus / JV150-160BS

Mimaki JV100 / TS Series (Sublimation)

• Mimaki JV100-160

• Mimaki TS100-1600

• Mimaki TS55-1800

"BS" = Bulk System (factory-fitted bulk ink supply). "Plus" = extended media handling variant. The M022253 pressure damper is identical for all standard, BS, and Plus variants of the compatible models.

JV150/JV300 vs JV33/CJV30 — Different Damper Families

Mimaki's DX7-based printer families use different damper assemblies. Do not confuse:

Platform	Damper Part	Models
JV150 / JV300 / CJV150 / CJV300 (this listing)	M022253	Newer DX7 generation — eco-solvent and sublimation
JV33 / CJV30 / TS3	M007389 (capping station) — different damper assembly	Older DX7 generation

What Does a Pressure Damper Assy Do?

The Mimaki "Pressure Damper Assy" is the term for the pressure-regulated ink delivery assembly that sits between the CJV300/JV300's ink supply and the DX7 printhead manifold. It performs three functions: it absorbs pressure spikes caused by the carriage's rapid acceleration and deceleration, smoothing out pulsation that would otherwise cause inconsistent drop ejection at high print speeds; it filters ink particles through an internal mesh before they reach the DX7 nozzles; and it maintains a calibrated back-pressure at the nozzle face, preventing ink from freely dripping from the nozzle openings during carriage movement and idle periods. When the damper assembly fails — through membrane fatigue, filter blockage, or seal degradation — any combination of banding, nozzle loss, and ink starvation on specific channels follows. Because each ink channel has its own pressure damper, channel-specific symptoms are the typical sign of a damper failure rather than a printhead failure.

Sublimation Models (TS100-1600 / TS55-1800) — Same Damper

The Mimaki TS100-1600 and TS55-1800 are dye-sublimation textile printers that use the same DX7 printhead and M022253 pressure damper assembly as the eco-solvent JV/CJV series — the same platform architecture deployed across different ink systems. If you are servicing a TS100-1600 or TS55-1800, M022253 is the correct damper regardless of the dye-sublimation ink chemistry. This cross-series compatibility simplifies spares management for Mimaki operations running both eco-solvent and sublimation machines.

Signs Your M022253 Dampers Need Replacing

• Banding or nozzle loss on specific colour channels — pressure damper failure causing ink starvation on those channels

• Air bubbles visible in the damper body — membrane failure or seal breach allowing air ingestion

• Ink leaking from the damper body or connections — seal failure

• Nozzle drop-out that returns rapidly after cleaning — continuous air drawn through a compromised damper

• Pressure irregularities manifesting as tonal inconsistency across a long print run

Mimaki CJV300 / JV300 Service Checklist

• Pressure dampers (this listing) — replace full set at every DX7 printhead installation

• Capping station — replace at every head swap (note: JV150/JV300 uses a different capping station from the older JV33/CJV30 M007389)

• Wiper blade — replace with capping station

Why Buy from Digiprint USA

• 100% genuine original Mimaki M022253 — not aftermarket, not compatible

• Current active part — replacing discontinued M015001

• Covers the full CJV300/CJV150/JV300/JV150 range including all BS and Plus variants

• In stock in Doral, Miami FL — same day shipping before 2PM EST

• Ideal for Latin American Mimaki CJV300/JV300 operators and eco-solvent production facilities using Miami freight forwarders

View our full range of Mimaki printer spare parts and maintenance consumables stocked by Digiprint USA.

Frequently Asked Questions

Does M022253 replace M015001?
Yes. M015001 is the earlier Mimaki part number for this pressure damper assembly — it has been discontinued and replaced by M022253. If your service documentation, printer manual, or prior order references M015001, M022253 is the correct current replacement. No configuration changes are required — the M022253 is a direct drop-in.

Is this the same damper as the JV33/CJV30?
No. The JV33/CJV30 generation uses a different damper assembly. The M022253 is for the newer JV150/JV300/CJV150/CJV300 generation. Do not substitute M022253 for the JV33/CJV30 damper or vice versa — confirm your specific Mimaki model generation before ordering.

Does M022253 fit the TS100-1600 dye-sublimation printer?
Yes. The Mimaki TS100-1600 and TS55-1800 are dye-sublimation textile printers built on the same platform as the JV/CJV eco-solvent series, using the same DX7 printhead and M022253 pressure damper. The M022253 is compatible with both eco-solvent and sublimation applications on these printers.

Do you ship Mimaki CJV300 dampers to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse. Ideal for Latin American Mimaki CJV300/JV300 operators, eco-solvent sign shops, and sublimation production facilities using freight forwarders in the Doral area.
