Epson I3200-A1 Damper

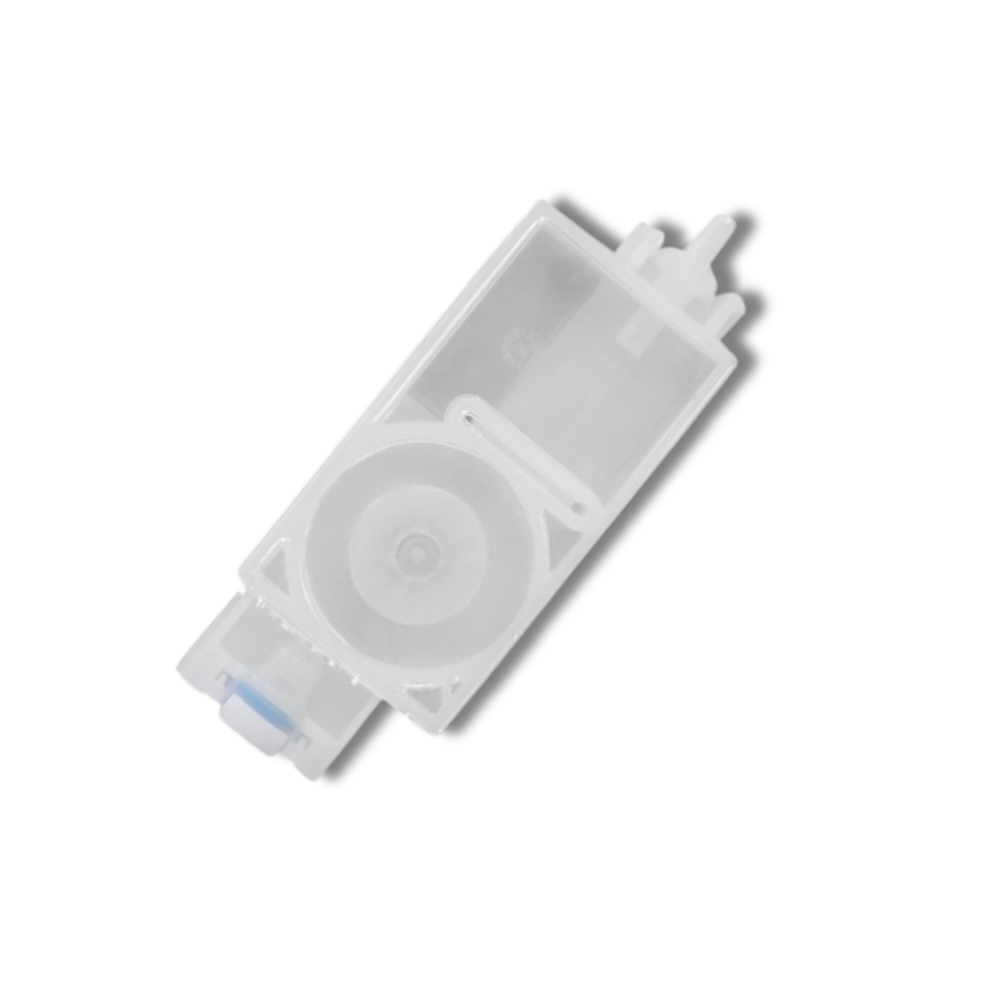

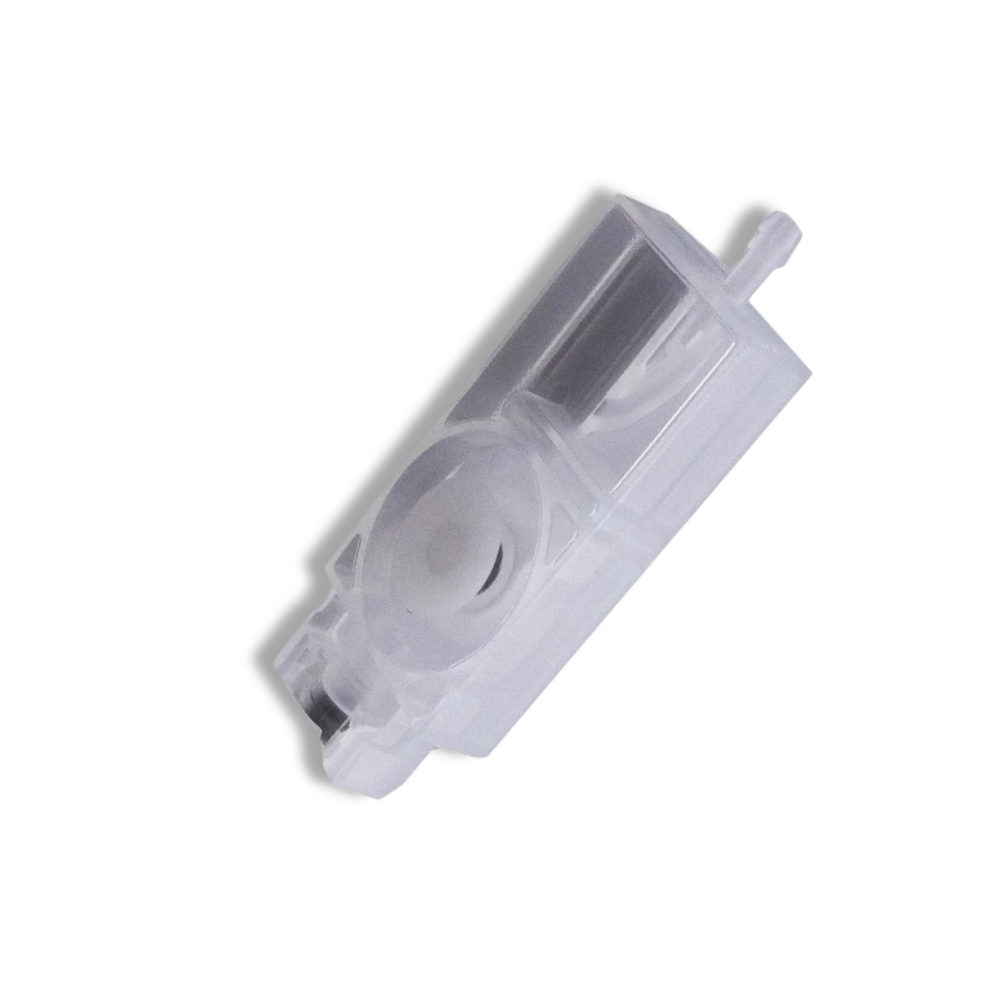

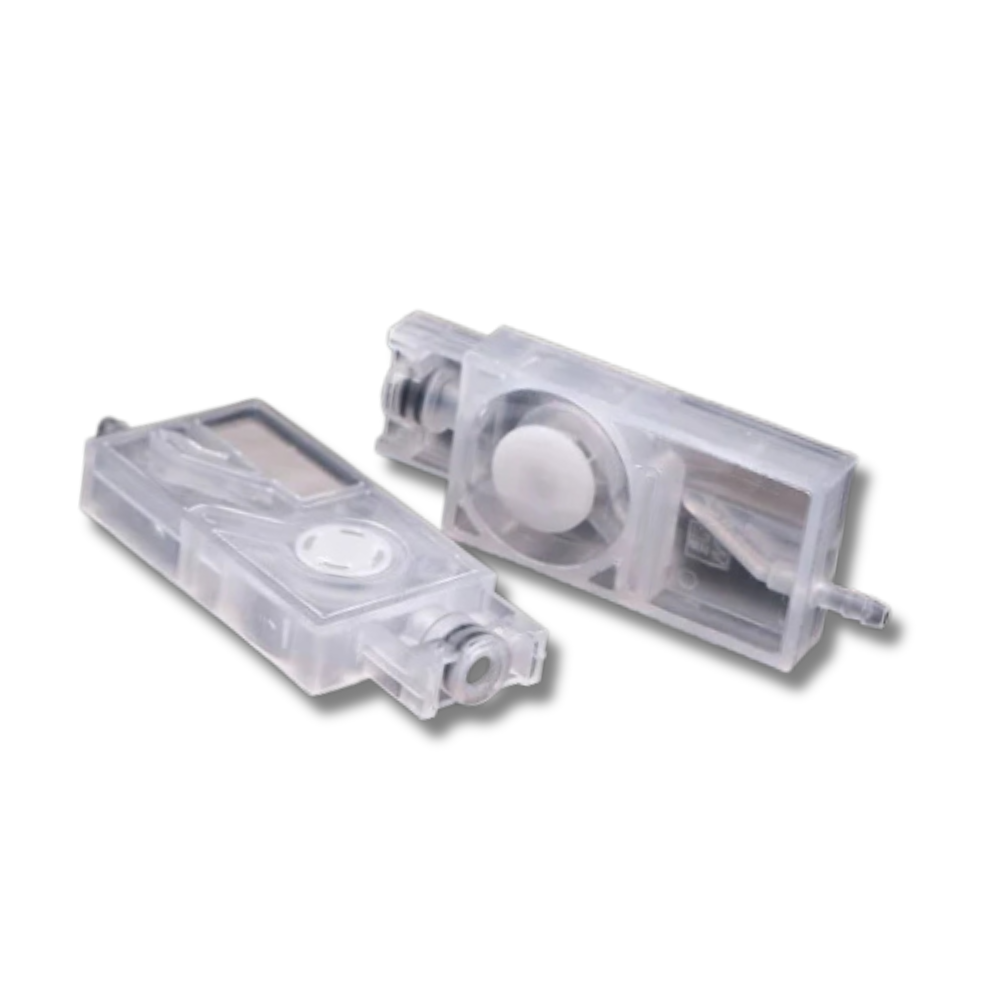

The Epson i3200-A1 Ink Damper is a replacement damper for printers using the Epson i3200-A1, i1600, 4720, and 5113 printheads in water-based applications — including DTF (Direct-to-Film), DTG (Direct-to-Garment), and dye-sublimation printing. The damper sits in the ink delivery path between the ink supply and the printhead, filtering particles through a 5µm stainless mesh screen, buffering pressure fluctuations from carriage movement, and maintaining stable negative back-pressure at the nozzle face. Featuring an EPDM rubber seal and a calibrated spring-loaded negative-pressure chamber, it delivers consistent ink flow across the i3200's 3,200 nozzles. Replace every 3–6 months in production environments, and at every printhead installation.

This is the A1 water-based damper — not compatible with UV or eco-solvent inks. The Epson i3200 platform uses different dampers for different ink types. The i3200-A1 damper (this listing) is designed for water-based inks — DTF, DTG, pigment, and sublimation. For UV inks (i3200-U1), a UV-specific damper with different chemical resistance is required — we stock this separately as the i3200/i1600 UV Damper. Do not use this A1 water-based damper in a UV printer — UV ink chemistry will degrade the internal components and cause leaking and contamination.

Product Details

i3200-A1 vs i3200-U1 — Which Damper Do You Need?

What Does an Ink Damper Do?

The ink damper sits between the printer's ink supply system and the printhead manifold. It serves three functions simultaneously. The 5µm stainless mesh screen filters ink particles, pigment agglomerates, and micro-debris before they reach the printhead nozzles — preventing the partial blockages that cause nozzle drop-out and banding. The negative-pressure chamber with calibrated spring maintains a stable back-pressure at the nozzle face, preventing ink from dripping freely from the nozzles during carriage movement and ensuring a clean meniscus at each nozzle opening. The chamber also acts as a pressure buffer that absorbs the pressure spikes caused by the carriage's rapid acceleration and deceleration, smoothing out pulsation that would otherwise cause ink ejection inconsistencies at high print speeds. When a damper fails — through membrane rupture, seal degradation, or mesh clogging — any or all three of these functions can fail simultaneously, producing complex symptoms that are difficult to diagnose without replacing the damper set.

White Ink in DTF — Why Dampers Wear Faster on the White Channel

DTF printing uses CMYK inks plus a white ink channel. DTF white ink is a suspension of titanium dioxide (TiO₂) particles — the same material that makes white ink opaque. TiO₂ particles are dense and settle out of suspension more rapidly than CMYK pigments, and they are significantly more abrasive against damper membranes and mesh screens than standard CMYK inks. In DTF printers, the white ink channel damper typically degrades faster than the CMYK channel dampers, often requiring replacement before the others show signs of wear. Monitor the white channel damper specifically — visible TiO₂ buildup on the mesh or membrane opacity change are the early signs that the white channel damper needs replacing even when the CMYK dampers are still serviceable.

Signs Your i3200-A1 Dampers Need Replacing

• Banding or nozzle row loss on specific colour channels — ink starvation from a restricted or failed damper

• Air bubbles visible inside the damper body — membrane rupture allowing air ingestion

• Ink leaking at the damper connections or body — seal failure

• Nozzle drop-out that returns quickly after cleaning cycles — air drawn through a compromised damper membrane

• TiO₂ white deposits visible on the mesh screen of the white channel damper

• Inconsistent ink pressure across a print run — visible as tonal inconsistency or colour shift mid-print

i3200-A1 Printhead Installation — Full Consumable Checklist

• Ink dampers (this listing) — replace full damper set at every head installation; replace white channel every 3–6 months

• Data cables — all 4× 14-pin cables per i3200-A1 head; never reuse

• Capping station — replace at every head swap; white head cap every 4–6 months

• Wiper blade — replace with capping station; dirty wiper contaminates new cap and head

Why Buy from Digiprint USA

• In stock in Doral, Miami FL — same day shipping before 2PM EST

• We also stock the i3200/i1600 UV damper (separate listing) — confirm your printhead variant before ordering

• We also stock i3200-A1 printheads, 14-pin data cables, and capping stations

• Ideal for Latin American DTF and DTG operations using Miami freight forwarders

View our full range of i3200 printer spare parts and maintenance consumables stocked by Digiprint USA.

Frequently Asked Questions

Can I use the A1 water-based damper in a UV i3200-U1 printer?
No. The A1 damper uses EPDM rubber seals formulated for water-based inks. UV-curable inks contain photoinitiators and monomers that are chemically incompatible with EPDM — they will degrade the seal material, causing the damper to leak and potentially contaminating the printhead. Use the separate i3200-U1 UV damper (which uses UV-resistant seal compounds) for all UV printing applications.

How many dampers does the i3200-A1 require?
The i3200-A1 supports 4 colour channels with 4 manifold inputs — so 4 dampers for a standard CMYK configuration. DTF printers add a white ink channel, requiring a 5th damper for the white channel. Replace all dampers simultaneously at every head service — partial replacement leaves worn dampers in the ink path that cause starvation and air ingestion on the new head.

Why does the white channel damper wear out faster?
DTF white ink contains titanium dioxide particles that are denser and more abrasive than CMYK pigments. These particles settle faster, accumulate on the damper mesh more rapidly, and are harder on the internal membrane. The white channel damper typically needs replacement before the CMYK dampers show equivalent wear — monitor it specifically and replace on the 3–6 month cycle even if the CMYK dampers appear serviceable.

Do you ship i3200-A1 dampers to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse. Ideal for Latin American DTF, DTG, and sublimation operations using freight forwarders in the Doral area.
