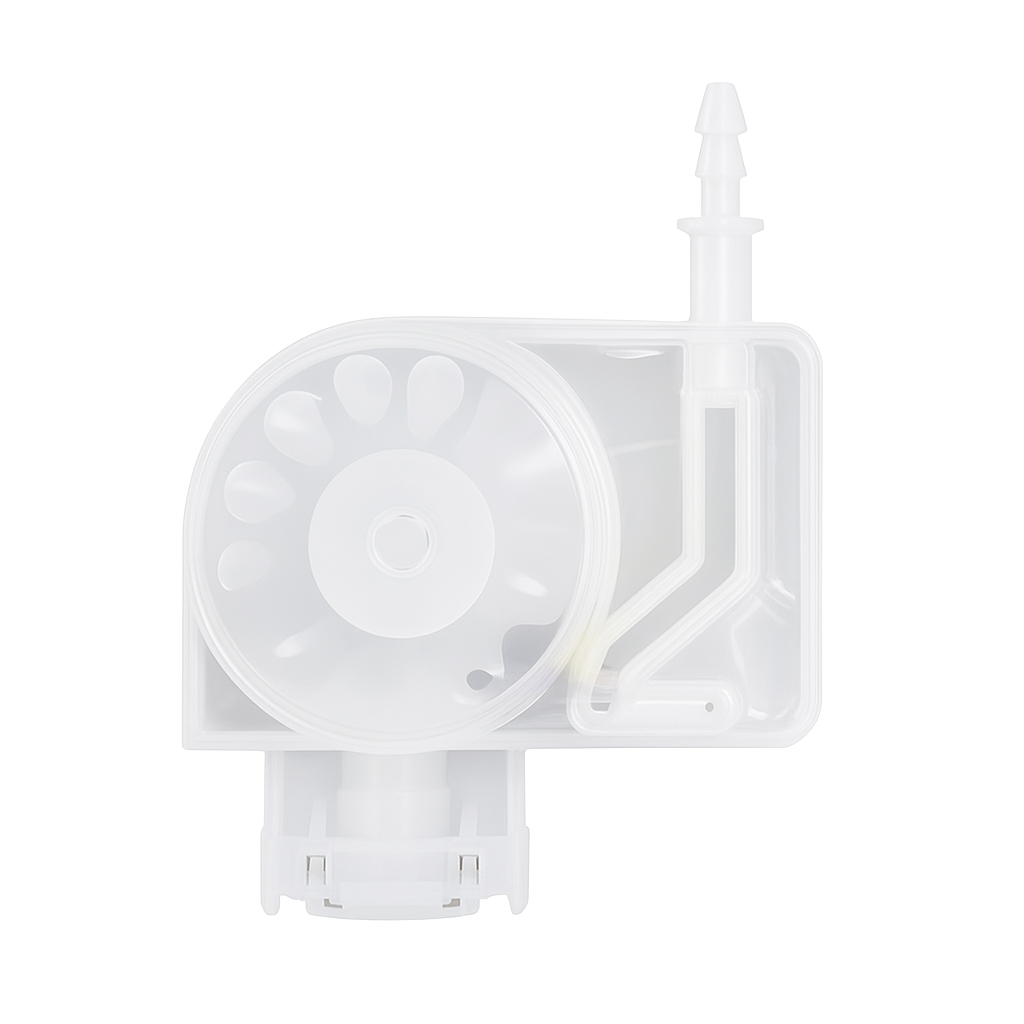

Epson I3200/ I1600 / XP600 / 5113 damper

The Epson i3200 / i1600 / XP600 / 5113 Damper is a high-quality compatible water-based ink damper for DTF (Direct-to-Film), DTG (Direct-to-Garment), and water-based wide-format printers using any of the four most common Epson printhead platforms in this category. It regulates ink flow, filters particles, and maintains stable back-pressure for each head type — covering the i3200-A1, i1600-A1, XP600/DX11, and 5113 printheads in a single stocked part. This is a compatible (non-OEM) water-based damper. Note that the number of dampers required per head varies by printhead — confirm your head type and quantity before ordering.

Dampers required per head varies by printhead — order the correct quantity.
• Epson i3200-A1 / i1600: 4 dampers per head (one per ink channel in 4-channel configuration; 5 in DTF with white channel)
• Epson XP600 / DX11: 2 dampers per head
• Epson 5113: 4 dampers per head
Replace all dampers simultaneously — partial replacement leaves worn dampers causing starvation on the new head.

Product Details

Printhead Platform Reference — Dampers per Head

White Ink in DTF — Why the White Channel Damper Wears Faster

DTF white ink contains titanium dioxide (TiO₂) particles that settle rapidly and are more abrasive against damper membranes and mesh screens than CMYK inks. In DTF printers using i3200-A1, i1600, or XP600 heads, the white ink channel damper typically degrades faster than the CMYK dampers — often requiring replacement before the others show equivalent wear. Monitor the white channel damper specifically: visible TiO₂ deposits on the mesh or membrane discolouration are early signs of white channel damper failure. In high-production DTF environments (4+ hours daily), replace white channel dampers on a 3–4 month cycle even if CMYK dampers appear serviceable.

Compatible Printer Types

DTF Printers (i3200-A1 / i1600-A1 / XP600-based)

• All major DTF printer brands using i3200-A1, i1600-A1, or XP600/DX11 printheads — Yuxunda, Colorsun, Fedar, ORIC, Sinotec, Coldesi, and similar platforms

DTG Printers

• DTG printers using Epson i3200-A1 or XP600 heads in aqueous pigment ink configurations

Epson L-Series and 5113-Based Conversions

• Epson L1800, L800, L1300, and other L-series printers with 5113-equivalent printhead

• Modified/converted DTF printers based on Epson L-series hardware

Signs Your Dampers Need Replacing

• Banding or nozzle row loss on specific colour channels — ink starvation from a clogged or failing damper

• Air bubbles visible in the damper body — membrane failure

• TiO₂ white deposits on mesh screen of white channel damper

• Ink leaking at damper connections — seal failure

• Nozzle drop-out returning immediately after cleaning cycles

Multi-Platform Installation Checklist

• Dampers (this listing) — replace full set per head at every printhead installation

• i3200-A1 / i1600: 4× 14-pin data cables per head; capping station (4–6 month interval for white head)

• XP600: 2× 29-pin data cables per head; capping station (6 month interval for white head)

• All platforms: wiper blade — replace with capping station as a single maintenance unit

Why Buy from Digiprint USA

• One damper listing covering i3200-A1, i1600, XP600, and 5113 — simplifies multi-head fleet inventory

• In stock in Doral, Miami FL — same day shipping before 2PM EST

• We also stock i3200-A1, i1600, XP600 printheads, cables, and capping stations

• UV damper (i3200-U1/i1600-U1) stocked separately — do not use this water-based damper in UV printers

• Ideal for Latin American DTF and DTG operations using Miami freight forwarders

View our full range of ink dampers for wide-format printers stocked by Digiprint USA.

Frequently Asked Questions

How many dampers do I need for my DTF printer?
It depends on your printhead. i3200-A1 and i1600 DTF printers: 4 dampers for CMYK, plus 1 more for the white channel = 5 total per head. XP600 DTF printers: 2 per head (CMYK+W handled through 2-channel damper configuration). 5113-based conversions: 4 per head. Replace the entire set simultaneously — never replace only some channels.

Is this the same damper as the i3200-A1 standalone listing?
This multi-platform listing covers the same water-based damper application for the i3200-A1 alongside the i1600, XP600, and 5113. If your printer uses only the i3200-A1 and you want the dedicated single-head listing with more detailed i3200-specific content, see our separate i3200-A1 damper listing. This listing serves buyers managing mixed fleets with multiple printhead types.

Can I use this damper in a UV i3200-U1 printer?
No. This is a water-based damper. UV-curable inks contain photoinitiators and monomers that degrade the seal compounds in water-based dampers, causing leaking and printhead contamination. For i3200-U1 or i1600-U1 UV printers, use our separate UV damper listing.

Do you ship these dampers to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse. Ideal for Latin American DTF operations, DTG printers, and eco-solvent production facilities using freight forwarders in the Doral area.
