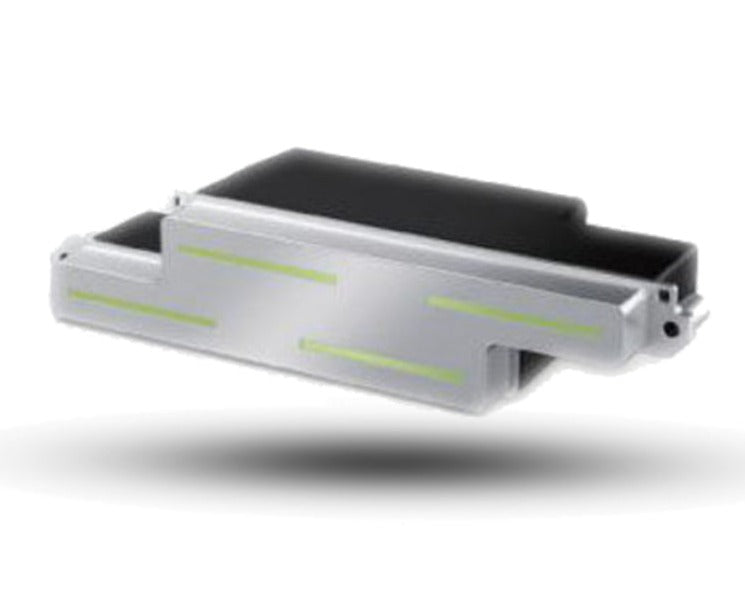

Epson S3200-A3 PrecisionCore Printhead

The Epson S3200-A3 is a genuine original PrecisionCore industrial inkjet printhead delivering 3,200 nozzles across a 120.2mm (4.73") print width at 600 dpi native resolution — the large-drop, large-gap aqueous variant of Epson's S3200 series. The A3 operates at the same 24 kHz system frequency as the S3200-A1 but produces droplets 1.4 times larger, enabling high print quality at high speeds even when the distance between the head and the media is significant — making it particularly suited to textile and corrugated/cardboard applications where head-to-substrate gap is wider than in conventional flatbed or roll-to-roll printing. Built on four PrecisionCore MicroTFP (Thin Film Piezo) chips in an S-shaped stagger configuration, with built-in ink recirculation, VSDT variable drop control, and a precision positioning hole for tool-free alignment. Head cable replacement is strongly recommended at installation. Every S3200-A3 we sell at Digiprint USA is 100% genuine original Epson.

S3200-A3 ≠ S3200-A1 — the A3 produces 1.4× larger drops for large-gap printing. The S3200-A1 and S3200-A3 are both aqueous variants of the same S3200 PrecisionCore platform, but they are not interchangeable. The A3 is engineered for applications where head-to-media distance is large (textiles, cardboard) and where a larger drop volume improves ink laydown and coverage at speed. The A1 is optimised for standard close-gap aqueous applications. Always confirm which variant your printer requires before ordering — install the wrong variant and print quality will be compromised. Contact our team to confirm.

Technical Specifications

Specification	Detail
Model	Epson S3200-A3
Series	S3200 — large-drop / large-gap aqueous variant
Technology	PrecisionCore MicroTFP (Thin Film Piezo) — MEMS manufacturing

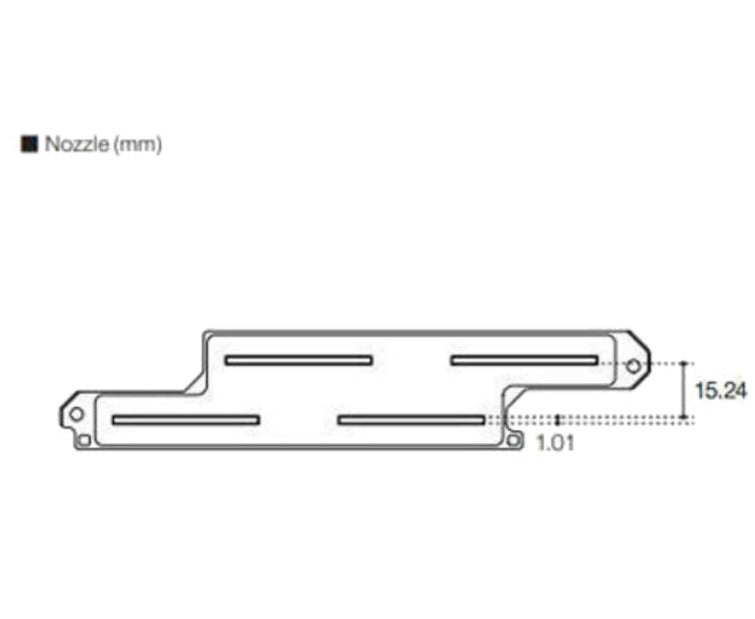

Chip configuration	4 × PrecisionCore chips — 2 rows of 2, S-shape stagger
Total nozzles	3,200 (8 rows × 400 nozzles)
Native resolution	600 dpi
Print width	120.2 mm (4.73 inches)
Color channels	2 channels per head
Drop technology	VSDT (Variable Sized Droplet Technology) — freely variable drop volume
Drop size vs A1	1.4× larger than S3200-A1 — optimised for large head-to-media gap
System frequency	24 kHz (same as S3200-A1)
Ink type	Aqueous (water-based) only
Ink recirculation	Built-in — prevents nozzle clogging during idle periods
Positioning	High-precision reference hole — fast replacement without further adjustment
Head design	S-shape — scalable for multi-head arrays, space-saving configuration
Head cable	Replacement strongly recommended at installation
Head type	Unlocked — original Epson authorized OEM printhead
Country of origin	Japan
Condition	100% genuine original Epson, brand new

S3200 Series — A1 vs A3: Which Do You Need?

Variant	Drop Size	Best For
S3200-A3 (this listing)	1.4× larger — large-gap printing	Textiles, corrugated/cardboard, large head-to-media distance applications
S3200-A1	Standard drop — close-gap printing	Standard aqueous wide-format, signage, labels, close-gap roll-to-roll
S3200-U1	Standard drop	UV / oil-based (eco-solvent) inks — not aqueous

Compatible Printers

Contact our team with your printer make and model to confirm S3200-A3 compatibility and whether the A3 or A1 variant is correct for your application before ordering.

Warranty Notice

Due to the sensitive nature of industrial printhead components, we cannot accept returns, exchanges, or refunds once the printhead has been installed. All sales are final. Replace head cables at installation. Contact our team to confirm A3 vs A1 variant before ordering.

Why Buy from Digiprint USA

• 100% genuine original Epson S3200-A3 — authorized OEM printhead, unlocked, manufactured in Japan

• A3 vs A1 variant clearly explained — the most common S3200 buyer error, addressed before you order

• Full spec coverage — 4-chip S-shape, 3200 nozzles, VSDT, ink recirculation, 24kHz, 600dpi, 1.4× drop size difference — the most detailed S3200-A3 listing available

• Unlocked head — authorized Epson OEM, not a disassembled or decryption-card head

• In stock in Doral, Miami FL — same day shipping before 2PM EST

• Ideal for Latin American Flora X3 and aqueous textile shops using Miami freight forwarders

• Free technical support — we confirm A3 vs A1, printer compatibility, and cable replacement needs before you order

View our full range of genuine Epson printheads and spare parts.

Frequently Asked Questions

What is the difference between S3200-A3 and S3200-A1?
Both are aqueous-only variants of the same Epson S3200 PrecisionCore platform — same 3,200 nozzles, same 120.2mm print width, same 600 dpi, same 24 kHz operating frequency, same S-shape chip layout. The key difference is drop size: the S3200-A3 produces drops 1.4 times larger than the A1. This larger drop volume is designed for applications where the distance between the printhead and the substrate is greater than in standard printing — such as textile printing on thick or uneven fabric, or corrugated cardboard printing. The A1 is optimised for standard close-gap aqueous printing. They are not interchangeable — your printer's OEM specification determines which variant is required.

What is VSDT and how does it improve print quality?
VSDT — Variable Sized Droplet Technology — is Epson's proprietary system for freely controlling the volume of each ejected droplet on a nozzle-by-nozzle, firing-by-firing basis. Rather than producing a fixed drop size, the PrecisionCore chip can vary drop volume within the range to produce smooth gradations, fine detail, and solid fills without requiring additional passes or dithering. In the S3200-A3's large-gap context, VSDT is particularly valuable because it compensates for the greater aerodynamic variation at larger print distances — smaller drops for fine detail, larger drops for solid areas — delivering consistent quality across the full tonal range.

Why is head cable replacement recommended when installing the S3200-A3?
The head cable carries all data and power signals between the printer's main board and the printhead. Over time — and especially after the failure of the old head — cables can develop intermittent electrical faults, resistance increases, or damaged insulation that do not always present as obvious cable failures. If a marginal cable is used with a new S3200-A3, it can cause inconsistent nozzle firing, waveform errors, or complete head non-response that is incorrectly diagnosed as a faulty new head. Replacing the cable at the same time as the head eliminates this risk and protects the investment in a new Epson PrecisionCore unit.

Do you ship the Epson S3200-A3 to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse before 2PM EST. Our Miami location is ideal for Latin American Flora X3 and aqueous textile production shops using freight forwarders in the Doral area.
