Epson SureColor S Printhead FA06151 FA06131 IA522V-15 | TFP 3600 Nozzles

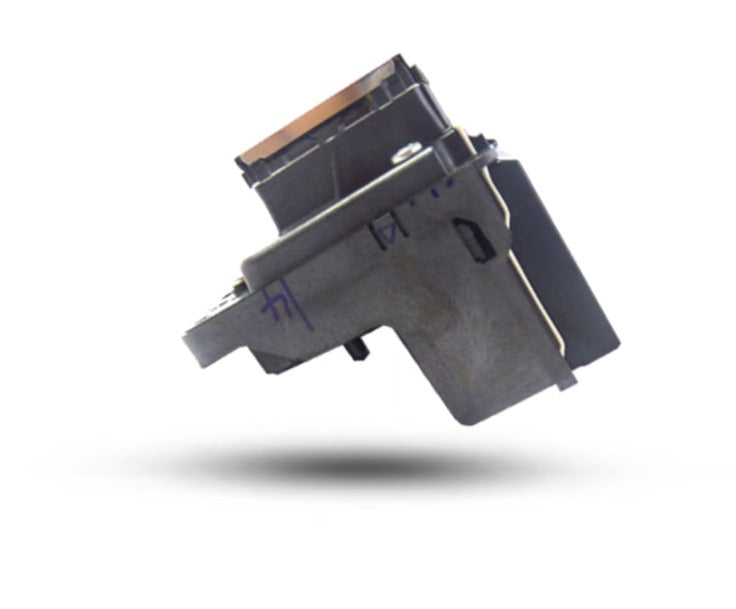

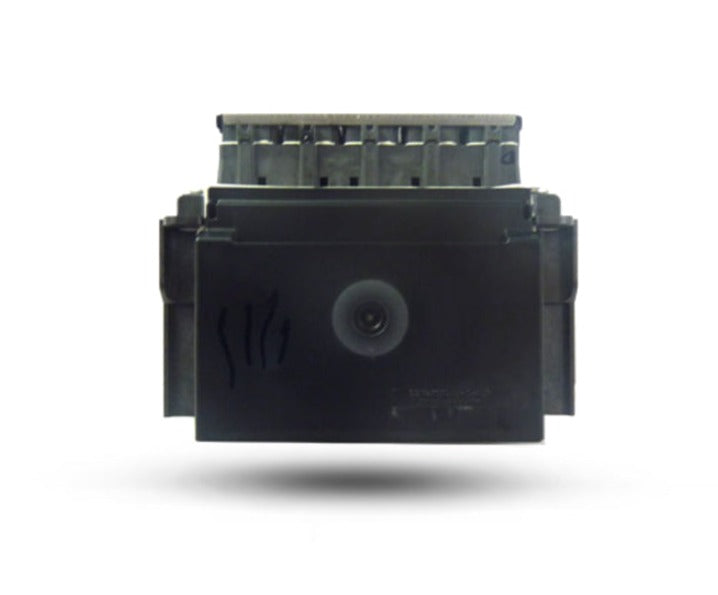

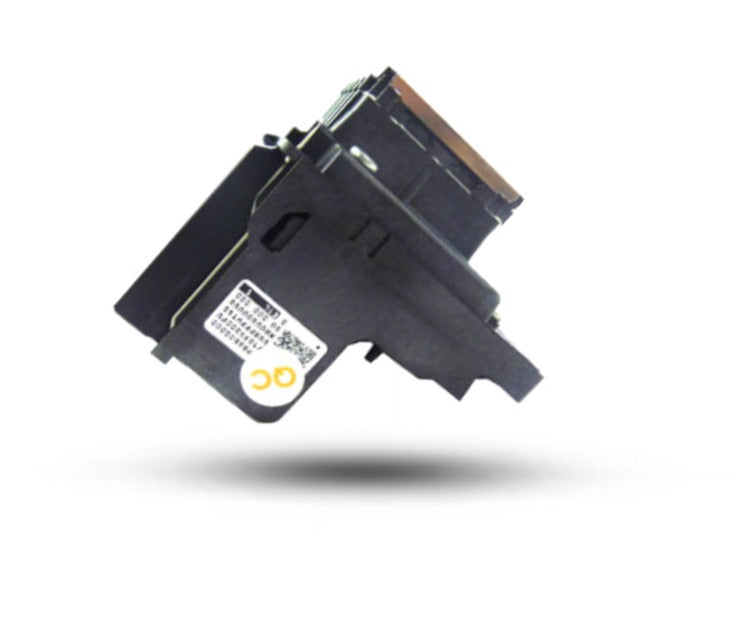

The Epson SureColor S Advanced MicroPiezo TFP Printhead (part numbers FA06151 / FA06131, designated IA522V-15) is the genuine original replacement printhead for the Epson SureColor S series eco-solvent wide-format printers. Built on Epson's proprietary Thin Film Piezo (TFP) technology with an ink-repelling nozzle plate coating, this 10-channel, 3,600-nozzle head delivers 1.5–3.5 pl variable drop control at up to 50 kHz — making it one of the highest-frequency, finest-drop eco-solvent printheads in the wide-format industry. FA06151 / FA06131 is the current active part number in Epson's service catalogue, superseding a long chain of discontinued predecessors (see part number history below). Every FA06151 / FA06131 we stock at Digiprint USA is 100% genuine original Epson — not aftermarket, not compatible, not refurbished.

Eco-solvent and mild solvent inks only. The IA522V-15 TFP printhead is engineered for Epson's eco-solvent ink system used in the SureColor S series. It is not compatible with UV-curable, aqueous, latex, or hard solvent inks. Use of incompatible inks will damage the nozzle plate coating and internal fluid path and will void the manufacturer warranty. Confirm your ink system before ordering.

Installation advisory — replace head cables at the same time. It is strongly recommended to replace the head data cables when installing a new FA06151 / FA06131 printhead. Degraded cables from the previous head are a leading cause of nozzle communication errors and drop-out after installation, and are not covered under printhead warranty. Order replacement cables before scheduling the swap.

Technical Specifications

Part Number History — Which Version Do You Have?

This printhead has gone through multiple Epson part number revisions. All earlier versions have been discontinued. The current active part is FA06151 / FA06131 (IA522V-15). If your service manual, previous order, or parts list shows any of the following numbers, FA06151 / FA06131 is the correct current replacement — no configuration changes are required on installation:

Note: FA06171 appears in some older documentation as a valid part number. It has been superseded by FA06131 / FA06151. If your records show FA06171, this listing is the correct current replacement.

Compatible Printers

Not sure this is the right head for your specific printer or colour configuration? Contact us before ordering — we confirm FA06151 compatibility for your exact model and ink channel count at no obligation.

What Is Advanced MicroPiezo TFP Technology?

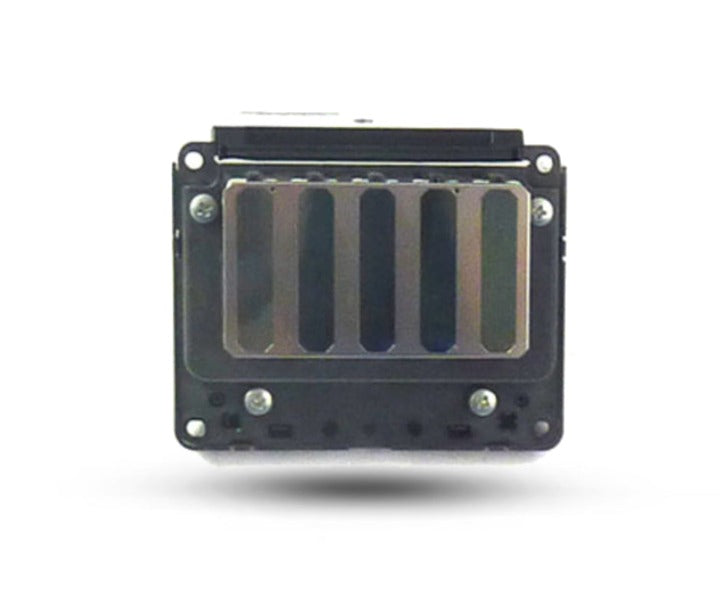

TFP stands for Thin Film Piezo — Epson's proprietary MEMS (Micro-Electro-Mechanical Systems) piezoelectric actuator technology. Unlike conventional bulk piezo designs used in most industrial printheads (including the D33 Stacked PZT found in Ricoh/Hitachi platforms), the TFP actuator is manufactured as an ultra-thin piezoelectric film deposited directly onto a silicon substrate using semiconductor fabrication processes. This allows far higher actuator density, tighter nozzle pitch, and more precise drive voltage control than is possible with bulk piezo — enabling the 1.5 pl minimum drop size and up to 50 kHz operating frequency of the IA522V-15. The 3,600-nozzle layout across 10 channels is made possible by TFP's compact actuator footprint. For eco-solvent wide-format, this translates to finer gradients, sharper fine lines, smoother colour transitions, and faster print throughput in a single head than any bulk piezo competitor in this class. The ink-repelling nozzle plate coating — applied specifically for solvent ink chemistry — prevents meniscus contamination and satellite drop formation during high-speed production runs on solvent media.

10-Channel Architecture — 4C, 5C, 8C, and 10C Configurations

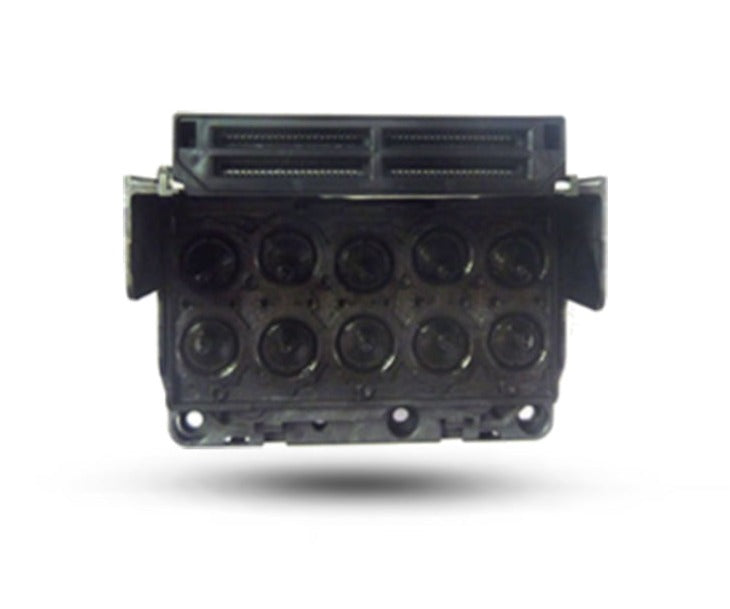

The FA06151 / FA06131 is a 10-channel head, but the SureColor S series uses this same physical head across 4-colour, 5-colour, 8-colour, and 10-colour printer configurations. In 4C and 5C printers, only 4 or 5 of the 10 channels are populated with ink — the head is the same part. In 8C and 10C configurations, all channels are used for extended gamut and specialty ink setups (including white, metallic, or additional colour channels). This is why you see model designations like SC-S50610 (4C) and SC-S50610 (5C) referring to the same printer with different ink configurations — the printhead is identical across all of them. If you are replacing a head in a 4C or 5C printer, the FA06151 is still the correct part regardless of how many channels you are actively using.

Applications

• Eco-solvent wide-format signage — vehicle wraps, banners, POS displays, and outdoor graphics on the SureColor S series

• Extended gamut and specialty colour printing — 8-colour and 10-colour SureColor S configurations for wide-gamut or white ink output

• High-speed production roll-to-roll — 50 kHz operating frequency for demanding production environments

• Fine detail and photographic-quality graphics — 1.5 pl minimum drop for smooth gradients and sharp line work in eco-solvent output

Warranty Notice

This printhead carries a genuine Epson manufacturer warranty. Warranty coverage is voided by: use of non-genuine Epson inks or non-original ink cartridges (including any bulk ink system), nozzle clogging resulting from non-original inks, misuse, neglect, failure to perform periodic maintenance as specified in the printer documentation, improper media loading, or damage caused by third-party applications, software, or components. Due to the sensitive nature of inkjet printhead components, Digiprint USA cannot accept returns or refunds once the printhead has been installed. All sales are final. Contact us with any compatibility or installation questions before ordering.

Why Buy from Digiprint USA

• 100% genuine original Epson FA06151 / FA06131 — current active part, not a discontinued revision

• Genuine Epson manufacturer warranty included

• In stock in Doral, Miami FL — same day shipping before 2PM EST

• Covers the full SureColor S series across all 4C, 5C, 8C, and 10C configurations

• Free technical support — we confirm the correct revision for your printer, advise on cable replacement, and cross-reference legacy part numbers before you order

View our full range of genuine Epson printheads and spare parts stocked by Digiprint USA.

Frequently Asked Questions

What is the difference between FA06151 and FA06131?
They are the same printhead. FA06151 and FA06131 are two valid Epson part numbers for the identical IA522V-15 assembly — the difference reflects regional or revision-level catalogue numbering, not any physical change. Both are fully interchangeable and accepted across all compatible SureColor S series printers.

My printer documentation shows FA06092 (or FA06090, FA06070, etc.) — is FA06151 the right replacement?
Yes. All earlier part numbers in the IA522V line have been discontinued by Epson. FA06151 / FA06131 (IA522V-15) is the current active replacement for all of them — including FA06000, FA06050, FA06070, FA06090, FA06091, FA06092, FA06072, and FA06171. No configuration changes are needed. Install as you would the original part.

What does TFP mean and why does it matter?
TFP stands for Thin Film Piezo — Epson's MEMS-based piezoelectric actuator platform. It enables finer nozzle pitch, higher actuator density, and more precise drop control than conventional bulk piezo designs. For SureColor S eco-solvent printers, it is what delivers the 1.5 pl minimum drop size and 50 kHz operating frequency — specifications that bulk piezo heads at this price point cannot match. The TFP platform is exclusively Epson's and is not available in third-party compatible heads.

My SureColor S printer has 4 colours — do I need a different head?
No. The FA06151 is the same physical head used across all SureColor S colour configurations — 4C, 5C, 8C, and 10C. In 4C and 5C printers, only the relevant channels are populated with ink. The unused channels are simply inactive. The printhead replacement procedure and part number are identical regardless of your printer's ink configuration.

Do you ship the Epson SureColor S printhead to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse. Our location is ideal for Latin American Epson SureColor S service operations and sign shops using freight forwarders in the Doral area.
