}Epson XP600 DTF Maintenance Kit — Printhead - 29-Pin Cables - 4- Dampers
Brand: Epson
Tax excluded. Shipping calculated at checkout
Availability: In stock
,%20dye-sublimation,%20and%20UV%20flatbed%20printers%20%E2%80%94%20containing%201%20genuine%20original%20Epson%20XP600%20print...
){kind=link}

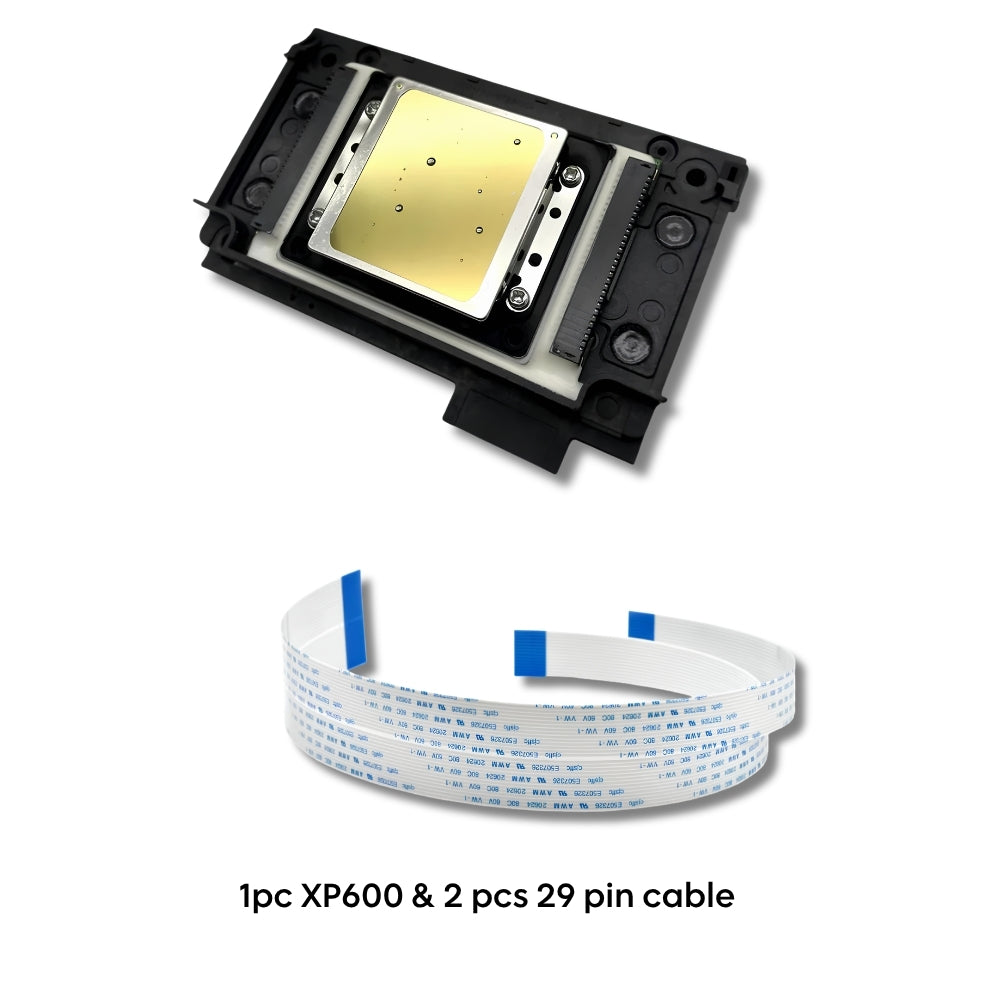

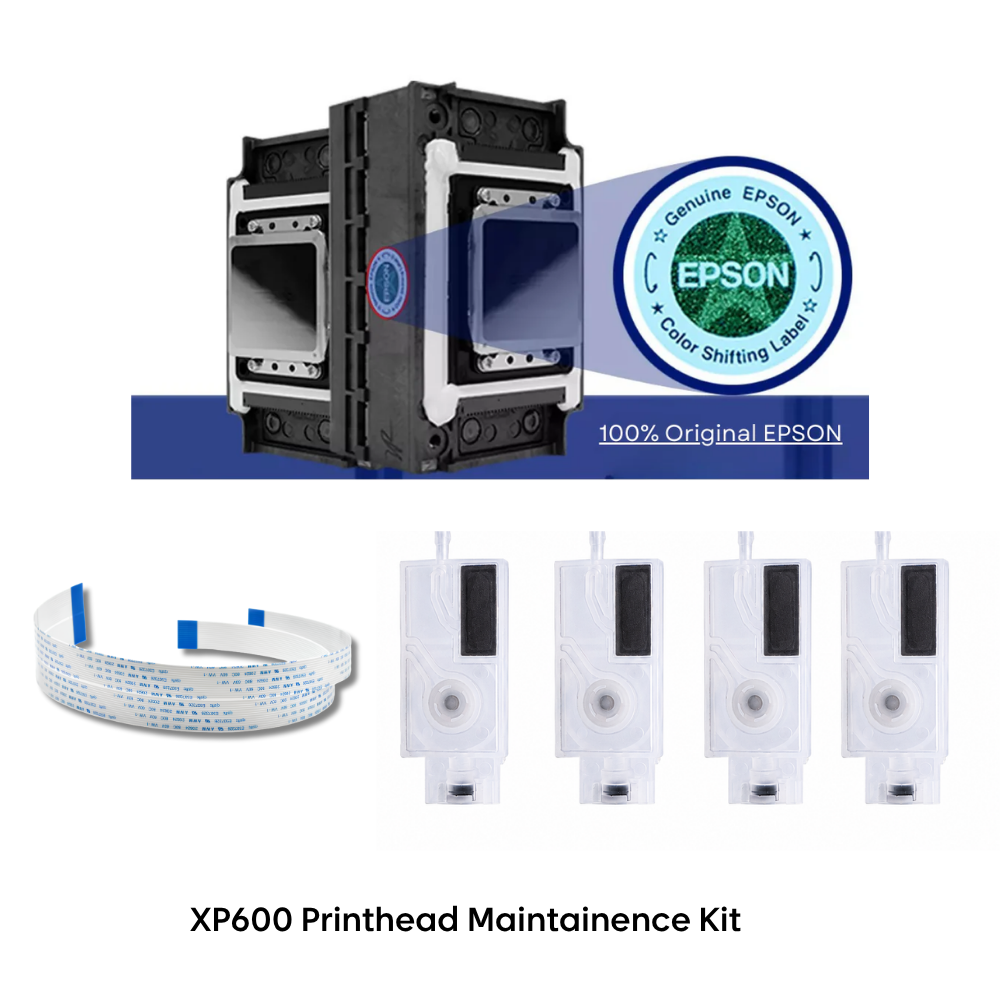

The Epson XP600 DTF Maintenance Kit is a complete printhead replacement bundle for DTF (Direct-to-Film), dye-sublimation, and UV flatbed printers — containing 1 genuine original Epson XP600 printhead (FA09121 / F1080-A1), 2 replacement 29-pin flat data cables, and 4 compatible ink dampers. Designed for professional DTF service technicians and print shop owners who need to replace their XP600 printhead correctly the first time, this kit eliminates the most common cause of premature DTF head failure: installing a new printhead on worn cables and dampers. Compatible with the majority of DTF printers built on the Epson XP600 / DX11 / F1080 platform including Colorsun, Fedar, Yuxunda, Oric, Sinotec, Procolored, and ColDesi.
What Is Included in the Kit
| Component | Quantity | Specification |
|---|---|---|
| Epson XP600 Printhead | 1 | Genuine original Epson FA09121 / F1080-A1 — Epson holographic colour-shifting seal intact — 1,080 nozzles, 1440 dpi, MicroPiezo, water-based DTF/sublimation/eco-solvent/UV |
| 29-Pin Data Cables | 2 | 29-pin flat flexible cable, 400mm length, 30mm width, copper conductor — 1 per nozzle array half; replace at every head installation |
| Ink Dampers | 4 | Epson I3200 / I1600 / XP600 / 5113 compatible — 1 per ink channel (C, M, Y, K); elastomer membrane for water-based DTF inks |
Epson XP600 Printhead Technical Specifications
| Specification | Detail |
|---|---|
| Part numbers | FA09121 / F1080-A1 / FA09050 / FA09xxx series |
| Also known as | Epson XP600, DX11, F1080-A1 |
| Technology | Epson MicroPiezo drop-on-demand |
| Ink type | Water-based — DTF pigment, sublimation, eco-solvent, UV-curable |
| Total nozzles | 1,080 (6 rows × 180 nozzles per row) |
| Nozzle resolution | 180 NPI per row / 360 NPI per 2 rows |
| Native resolution | 1440 dpi |
| Jetting frequency | 46kHz (single mode) / 11.52kHz (multi mode) |
| Drop volumes | 4.5pl / 9pl / 20pl / 40pl (multi mode) — 1.5pl minimum variable |
| Viscosity range | 3–5 mPa·s |
| Colour channels | Up to 6 colours |
| Effective print width | 1 inch (25.4mm) |
| Dimensions | 84.9 × 57.2 × 42.6mm |
| Weight | 60g |
| Interface | 29-pin flat flexible cable connector (2 cables per head — both included) |
| Authenticity | Epson holographic colour-shifting seal on packaging |
| Country of origin | Japan |
| OEM status | 100% genuine original Epson — not compatible, not refurbished |
29-Pin Data Cable Specifications
| Specification | Detail |
|---|---|
| Pins | 29 pins (1.0mm pitch) |
| Length | 400mm (40cm) |
| Width | 30mm |
| Type | Flat flexible cable (FFC) — same-side connector orientation |
| Conductor | Copper — minimal signal loss and stable high-frequency data transfer |
| Function | Connects the XP600 printhead to the carriage circuit board |
| Quantity per kit | 2 cables — complete set (2 cables required per XP600 head) |
| Also compatible with | Epson TX800 / TX810 / TX820 printhead-based printers |
Ink Damper Specifications
| Specification | Detail |
|---|---|
| Compatibility | Epson I3200 / I1600 / XP600 / 5113 printhead platforms |
| Quantity per kit | 4 — one per ink channel (C, M, Y, K) |
| Housing | Transparent body — allows visual inspection of ink level and trapped air |
| Internal filter | Fine mesh filter screen — traps pigment agglomerates and debris before the nozzle plate |
| Membrane | Elastomer diaphragm — maintains the negative back-pressure the XP600 requires for stable drop formation |
| Ink compatibility | Water-based DTF pigment, dye-sublimation, and aqueous inks |
| Function | Buffers ink pressure between the ink line and printhead manifold, filters contamination, and absorbs pressure spikes from carriage acceleration |
| Replacement interval | At every printhead installation — and every 6–12 months in continuous white-ink production |
Please Note: Due to the delicate nature of DTF, UV, and eco-solvent inks and the risk of damage from improper installation or nozzle blockage, we cannot accept returns, exchanges, or refunds once the printhead has been installed. All sales are final. Please ensure proper installation procedures are followed.
Which DTF Printers Is This Kit Compatible With?
This maintenance kit is compatible with all DTF, sublimation, and UV printers using the Epson XP600 / DX11 / F1080 printhead, including:
Not sure if this kit fits your printer? Contact us — our US-based support team will confirm compatibility before you order.
Epson XP600 vs i3200-A1 — Which Is Right for Your DTF Printer?
| Specification | Epson XP600 / F1080 (this kit) | Epson i3200-A1 |
|---|---|---|
| Total nozzles | 1,080 | 3,200 |
| Native resolution | 1440 dpi (interpolated) | 600 dpi |
| Print width | 25.4mm (1") | 33.8mm (1.33") |
| Data cables in kit | 2 × 29-pin (400mm) | 4 × 14-pin |
| Dampers in kit | 4 | 4 |
| Best for | Entry-level and mid-volume DTF, sublimation, UV converted printers | Production DTF — high volume, professional shops |
| Price point | Lower — accessible entry | Higher — production investment |
How to Install the Epson XP600 — Correct Service Order
Follow this sequence for a correct XP600 maintenance kit installation:
Step 1 — Power off the printer and move the carriage to the maintenance position before opening the print bay.
Step 2 — Remove the old printhead and immediately inspect the capping station and wiper blade. Replace the capping unit if the cap top is worn, cracked, or contaminated with dried ink.
Step 3 — Replace both 29-pin cables. Label or photograph cable positions before removal. Install both new cables from this kit before seating the new printhead. Never reuse old cables.
Step 4 — Replace all 4 dampers. Prime each new damper with ink before installation to prevent air entry. Connect to manifold nipples by colour channel (C, M, Y, K) and check each transparent body for trapped air bubbles.
Step 5 — Install the new XP600 printhead and secure. Perform an initial head flush using the printer's maintenance menu before running a nozzle check.
Step 6 — Run a nozzle check pattern and confirm all 1,080 nozzles are firing correctly before resuming production. Allow the head 24 hours of normal operation for final nozzle stabilisation after installation.
Why Genuine Epson OEM — Not Grey Market or Refurbished
No aftermarket manufacturer produces new XP600 printheads. Every non-genuine XP600 sold as "new" is either a refurbished unit with restored nozzle coating and a reset chip, or a pulled head removed from a used printer and cleaned. Refurbished XP600 heads have degraded actuator elements that produce inconsistent droplet formation, reduced nozzle lifespan, and early nozzle row failures — typically within 3–6 months of installation versus 12–18 months for a genuine original. Every XP600 printhead sold by Digiprint USA is 100% genuine original Epson from authorised distribution channels, sealed in original Epson packaging and confirmed by the Epson holographic colour-shifting seal.
Why Buy from Digiprint USA
• Complete XP600 service kit — genuine printhead + 2 cables + 4 dampers in one shipment from Miami FL
• 100% genuine original Epson FA09121 / F1080-A1 — Epson holographic seal intact, never refurbished
• Eliminates the #1 cause of premature DTF head failure — worn cables and dampers at installation
• One order, one shipping charge — no second freight bill for the parts you forgot
• In stock in Doral, Miami FL — same day shipping before 2PM EST
• Compatible with all major XP600-based DTF, sublimation, and UV flatbed platforms
• Ideal for Latin American DTF print shops and UV flatbed operators using Miami freight forwarders
Browse our full range of DTF printer parts and maintenance supplies including individual capping units, wiper blades, and cleaning solutions.
View all genuine Epson printheads stocked by Digiprint USA.
Frequently Asked Questions
What is included in the Epson XP600 DTF maintenance kit?
The kit contains: 1 genuine original Epson XP600 printhead (FA09121 / F1080-A1, 1,080 nozzles, 1440 dpi, MicroPiezo, Japan-made), 2 replacement 29-pin flat flexible data cables (400mm length, 30mm wide, copper conductor), and 4 ink dampers for the CMYK channels. This is the complete set of consumables required for a correct XP600 printhead installation.
How many data cables does the XP600 printhead require?
The XP600 requires 2 data cables per head — one for each half of the nozzle array. Both must be replaced simultaneously with every printhead installation. Replacing only one cable, or reusing old cables from the previous head, causes intermittent signal loss that produces banding and nozzle dropout. This kit includes both.
How many dampers does the XP600 use, and are they all included?
This kit supplies 4 dampers — one per ink channel (C, M, Y, K) — covering the standard four-channel DTF, sublimation, and UV configuration. If your machine runs a white-ink or six-channel configuration and needs additional dampers, contact us before checkout and we will add them to the same shipment so you only pay freight once.
Why should I replace the cables and dampers when installing a new XP600 printhead?
Old cables develop micro-fractures from repeated flex cycles that cause nozzle dropout identical to a failing printhead. Old dampers have degraded membranes that disrupt the ink back-pressure the new head requires. Installing a new head on worn accessories produces the same failure symptoms within days. Replacing all three components simultaneously is the only correct service approach.
What is the difference between FA09121 and F1080-A1?
FA09121 and F1080-A1 are the same physical XP600 printhead — FA09121 is a later Epson revision code for the same production head. Both fit identical printers and perform identically. If your printer documentation or previous service order specifies FA09121, FA09xxx, or F1080-A1, this kit is the correct replacement.
Is this a genuine Epson printhead or aftermarket?
This is 100% genuine original Epson, confirmed by the Epson holographic colour-shifting seal on the packaging. No aftermarket XP600 printheads are manufactured new — any non-genuine XP600 sold as "new" is refurbished or a pulled head. Refurbished heads have degraded actuators that typically fail within 3–6 months versus 12–18 months for a genuine original.
Is this kit compatible with dual-head XP600 printers?
Each kit services one XP600 printhead position — 1 head, 2 cables, 4 dampers. For dual-head DTF printers running 2× XP600 heads simultaneously, order 2 kits. Contact us with your printer model to confirm the correct quantity before ordering — we will confirm the exact kit requirement for your specific machine.
Do you ship XP600 maintenance kits to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse for orders placed before 2PM EST. Digiprint USA is located in Doral, the primary freight forwarder hub for Latin America, making us the closest US supplier to most Latin American DTF operations in Colombia, Mexico, Brazil, Peru, Chile, and the Caribbean.
