}Mimaki JFX200-2513 GEN5 Printhead M022625 | Ricoh MH5420 UV Head
Brand: Mimaki
Tax excluded. Shipping calculated at checkout
Availability: In stock

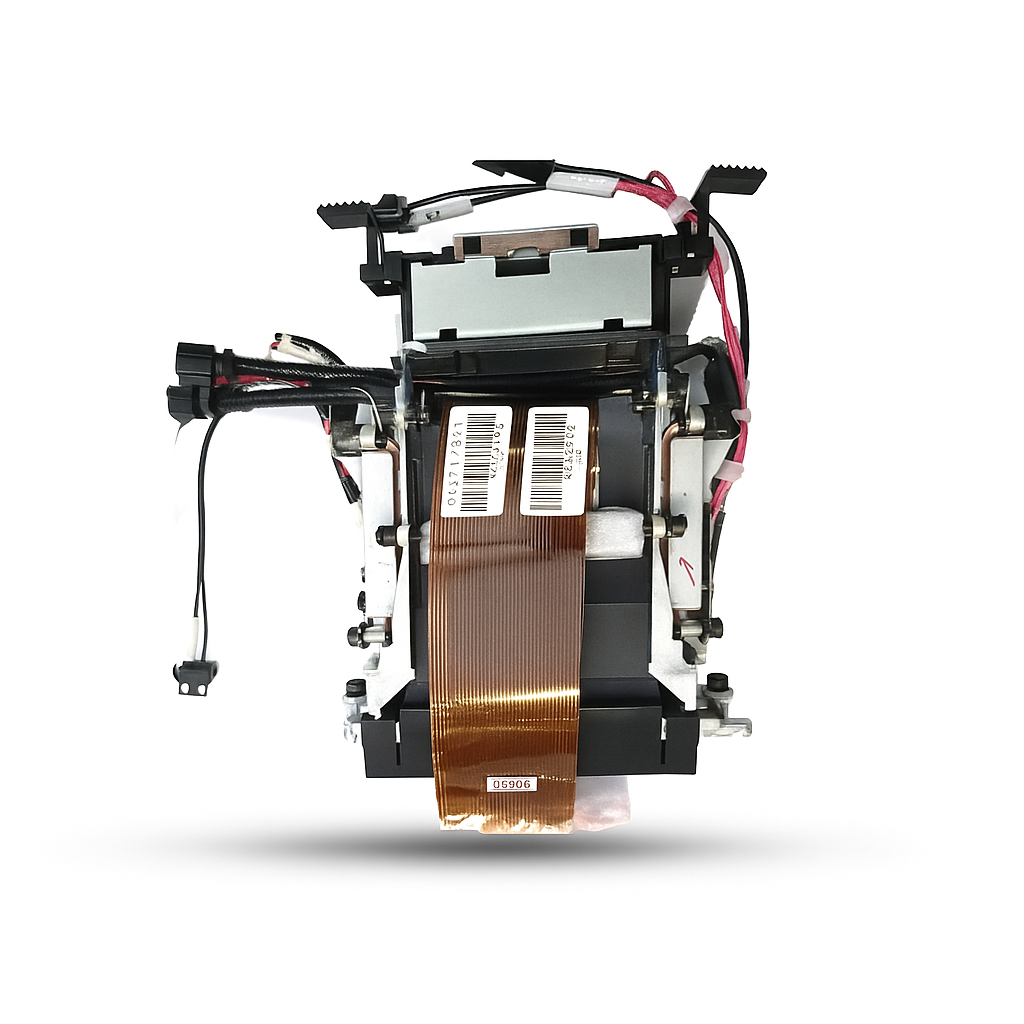

The Mimaki M022625 is the genuine original GEN5 printhead assembly for the Mimaki JFX200-2513 UV flatbed printer. Based on the Ricoh GEN5 MH5420 platform, it delivers 1,280 nozzles, 600 NPI nozzle density, 8-level greyscale, and a drop volume range of 7–35pl — making it one of the most capable UV flatbed printheads in the industrial wide-format segment. M022625 is the current replacement part, superseding M017004 and M015028. Every M022625 we sell at Digiprint USA is 100% genuine original Mimaki Japan.
Technical Specifications
| Specification | Detail |
|---|---|
| Mimaki part number | M022625 (replaces M017004 and M015028) |
| Printhead platform | Ricoh GEN5 (MH5420) |
| Nozzle count | 4 rows × 320 nozzles = 1,280 total nozzles |
| Nozzle density | 600 NPI (nozzles per inch) |
| Native drop volume | 7 pl |
| Drop volume range | 7 pl – 35 pl (variable) |
| Greyscale | 8-level greyscale |
| Colour support | 2-colour and 4-colour configurations |
| Max jetting frequency | Up to 60 kHz |
| Drop velocity | 7 m/s |
| Temperature control | Integrated heater and thermistor — up to 80°C operating range |
| Nozzle plate | Coated SST (stainless steel) |
| Head materials | SST, nickel alloy, epoxy adhesive |
| Piezo type | D33 stacked PZT |
| Dimensions | 89 × 25 × 69mm (excluding cables) |
| Service life | 100 billion actuations per nozzle |
| Ink compatibility | UV-curable inks only |
| Condition | 100% genuine original Mimaki Japan, brand new |
⚠️ Critical — Firmware Update Required
Installing M022625 in a JFX200-2513 or JFX200-2531 running older firmware will result in head recognition failure. Before installing this printhead, update your printer firmware to the required version:
| Printer Model | Minimum Firmware Version Required |
|---|---|
| Mimaki JFX200-2513 | v2.60 or later |
| Mimaki JFX200-2531 | v2.50 or later |
Contact Mimaki support or your local Mimaki dealer to obtain the firmware update before installation. Contact our team if you need assistance confirming your current firmware version.
Part Number Cross-Reference
| Part Number | Status | Notes |
|---|---|---|
| M015028 | Superseded | Original part — no longer available |
| M017004 | Superseded | Second revision — no longer available |
| M022625 | Current — this listing | Direct replacement for M015028 and M017004 |
| M026887 | Latest revision | Supersedes M022625 — contact our team for availability |
Compatible Printers
• Mimaki JFX200-2513
• Mimaki JFX200-2531 (firmware v2.50+ required)
Contact our team to confirm M022625 compatibility with your specific JFX200 serial number and firmware version before ordering.
Recommended — Replace Head Cables at the Same Time
Always replace the head data cables when fitting a new printhead on any Mimaki JFX200. Installing a new head on worn cables is the leading cause of premature head failure and connection faults. Contact our team with your JFX200 serial number for the correct cable set.
Why Buy from Digiprint USA
• 100% genuine original Mimaki Japan M022625 — not compatible, not refurbished
• In stock in Doral, Miami FL — same day shipping before 2PM EST
• Ideal for Latin American Mimaki JFX200 users using Miami freight forwarders
• Free technical support — we confirm firmware version and compatibility before you order
View our full range of genuine Mimaki and Ricoh GEN5 printheads stocked by Digiprint USA.
Frequently Asked Questions
What printers is the M022625 compatible with?
The M022625 is the current GEN5 printhead assembly for the Mimaki JFX200-2513 and JFX200-2531 UV flatbed printers. It is not compatible with other Mimaki models. Always confirm with your printer's serial number and current firmware version before ordering.
Does M022625 require a firmware update?
Yes — this is a critical pre-installation step that many technicians overlook. The JFX200-2513 must be running firmware v2.60 or later, and the JFX200-2531 must be running v2.50 or later. Installing M022625 on older firmware will result in the head not being recognised. Update firmware before installation.
What does M022625 replace?
M022625 directly replaces M017004 and M015028 — the two previous GEN5 printhead part numbers for the JFX200-2513. If your service manual or previous invoice shows M017004 or M015028, M022625 is the correct current replacement.
Is there a newer part number than M022625?
Yes — M026887 is the latest revision and supersedes M022625. Both are compatible with the JFX200-2513. Contact our team for current stock availability of M026887 if required.
What is the relationship between M022625 and the Ricoh GEN5 MH5420?
The M022625 is Mimaki's branded and certified version of the Ricoh GEN5 MH5420 printhead, configured and validated specifically for the JFX200-2513. The Ricoh GEN5 platform is also used in other wide-format printers — but the M022625 assembly includes heater integration and waveform data specific to Mimaki's implementation. Always use the Mimaki-certified M022625 in JFX200 printers, not a generic Ricoh GEN5.
Do you ship Mimaki JFX200 printheads to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse. Our Miami location is ideal for Latin American Mimaki users and resellers using freight forwarders in the Doral area.
