Jv33 Capping Station - M007389

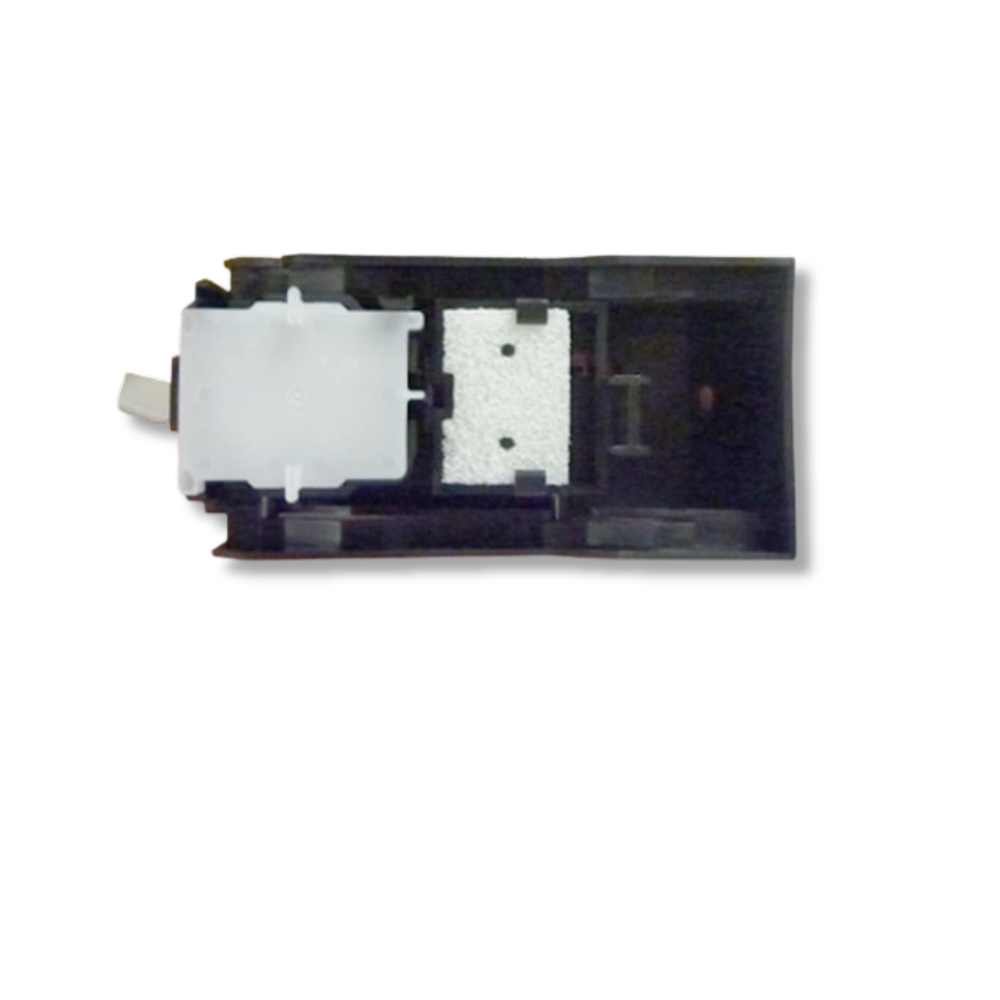

The Mimaki JV33 / CJV30 Capping Station (part number M007389) is a replacement capping station assembly for Mimaki JV33, CJV30, and TS3-1600 eco-solvent, mild-solvent, and dye-sublimation wide-format printers. The M007389 is a complete assembly — containing the bracket, capping station, and the cap top unit M905240 — that seals the Epson DX7 printhead during idle and overnight shutdowns, preventing eco-solvent ink from drying in the nozzle array, and provides the purge inlet for the printer's automatic cleaning cycles. Compatible with all JV33 and CJV30 models including Bulk System (BS) variants.

M007389 is the complete capping station assembly. M905240 is the cap top unit only. If your service documentation references M905240, that is the cap top sub-assembly contained within this M007389 station. If you need to replace the cap top alone (without replacing the full bracket assembly), you need M905240 separately. If you are replacing the full capping station assembly, M007389 (this listing) is the correct part.

Product Details

Compatible Printers

Mimaki JV33 Series (Print Only)

• Mimaki JV33-130 / JV33-130BS

• Mimaki JV33-160 / JV33-160BS

• Mimaki JV33-260 / JV33-260BS

Mimaki CJV30 Series (Print-and-Cut)

• Mimaki CJV30-60 / CJV30-60BS

• Mimaki CJV30-100 / CJV30-100BS

• Mimaki CJV30-130 / CJV30-130BS

• Mimaki CJV30-160 / CJV30-160BS

Mimaki TS3 Series (Dye-Sublimation Textile)

• Mimaki TS3-1600

"BS" = Bulk System — factory-fitted bulk ink supply configuration of the same printer. The M007389 capping station is identical for both standard and BS variants of all compatible models.

JV33 vs CJV30 — Same Capping Station

The Mimaki JV33 and CJV30 are closely related platforms sharing the same DX7 print engine and maintenance station architecture. The JV33 is a print-only eco-solvent wide-format printer; the CJV30 adds an integrated cutting plotter on the same chassis. Both use the M007389 capping station — the integrated cutter on the CJV30 does not affect the print head maintenance station. If you have a CJV30, the M007389 is the correct capping station regardless of the model's cutting capability.

TS3-1600 — Dye-Sublimation Compatibility

The Mimaki TS3-1600 is a dye-sublimation textile printer — not eco-solvent — but it uses the same DX7 printhead and M007389 capping station as the JV33/CJV30 series. This is because the TS3-1600's maintenance station architecture is derived from the same platform, making the M007389 cross-compatible despite the different ink chemistry. If you are servicing a TS3-1600, the M007389 is the correct replacement capping station.

What Does the Capping Station Do?

The M007389 capping station assembly performs two critical functions on the JV33/CJV30 platform. During idle periods and overnight shutdowns, the cap top (M905240) presses against the DX7 nozzle face and forms an airtight seal that prevents eco-solvent or sublimation ink from evaporating from the nozzle menisci — the thin ink bridges held at each of the 1,440 nozzle openings. Without this seal, eco-solvent ink evaporates within hours of idle, leaving behind dried pigment and resin deposits that block nozzles. During cleaning cycles, the printer's pump draws suction through the capping station to flush ink and debris through the nozzle channels. A worn, cracked, or ink-saturated cap top that fails to form a complete seal causes both overnight nozzle drying and ineffective cleaning cycles — typically manifesting as progressive banding and nozzle loss that cleaning cycles cannot fully recover.

Signs Your M007389 Capping Station Needs Replacing

• Nozzle drop-out or banding that appears after overnight shutdown but improves after cleaning — incomplete cap seal causing overnight drying

• Cleaning cycles that fail to recover nozzles despite multiple attempts — worn cap reducing purge suction

• Ink pooling or flooding around the capping station during maintenance cycles — cap no longer routing waste ink correctly

• Visible cracking, hardening, or permanent ink saturation of the cap top rubber

• Progressive nozzle loss over weeks despite regular maintenance — classic sign of cap seal deterioration

JV33 / CJV30 Printhead Service Checklist

• Capping station (this listing) — replace at every DX7 printhead installation and when seal failure is evident

• DX7 printhead — Mimaki JV33-compatible DX7 head (ID set M010792 for JV34-260; similar for JV33 platform)

• Dampers — replace all dampers for the head position being serviced

• Wiper blade — worn wipers smear ink onto the cap top during maintenance sequences

Why Buy from Digiprint USA

• In stock in Doral, Miami FL — same day shipping before 2PM EST

• Covers all JV33 and CJV30 models including all BS variants — one part number for the full platform

• We also stock Mimaki JV33/JV34 DX7 printheads and associated spare parts

• Ideal for Latin American Mimaki operators and signage production operations using Miami freight forwarders

View our full range of Mimaki printer spare parts and maintenance consumables stocked by Digiprint USA.

Frequently Asked Questions

What is the difference between M007389 and M905240?
M007389 is the complete capping station assembly — it includes the mounting bracket, the capping station body, and the cap top unit M905240. M905240 is the cap top sub-assembly only, without the bracket. If you need to replace the full capping station assembly (the most common service procedure), order M007389. If your bracket is intact and you only need the cap top rubber unit, you may need M905240 separately — contact us to confirm which part is correct for your specific repair before ordering.

Does M007389 fit both the JV33 print-only and CJV30 print-and-cut models?
Yes. The JV33 and CJV30 share the same DX7 print engine and maintenance station architecture. The CJV30's integrated cutting plotter is a separate mechanical system and does not affect the print head maintenance station. M007389 is the correct capping station for all JV33 and CJV30 models, standard and BS variants.

Why does the TS3-1600 use the same capping station as eco-solvent JV33/CJV30 printers?
The Mimaki TS3-1600 is a dye-sublimation textile printer derived from the same platform architecture as the JV33/CJV30, using the same DX7 printhead and maintenance station layout. Despite using different ink chemistry, the physical maintenance station dimensions and attachment are identical — making M007389 the correct replacement for the TS3-1600 as well.

Do you ship Mimaki JV33 capping stations to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse. Ideal for Latin American Mimaki JV33/CJV30 operators, sign production operations, and wide-format service centres using freight forwarders in the Doral area.
