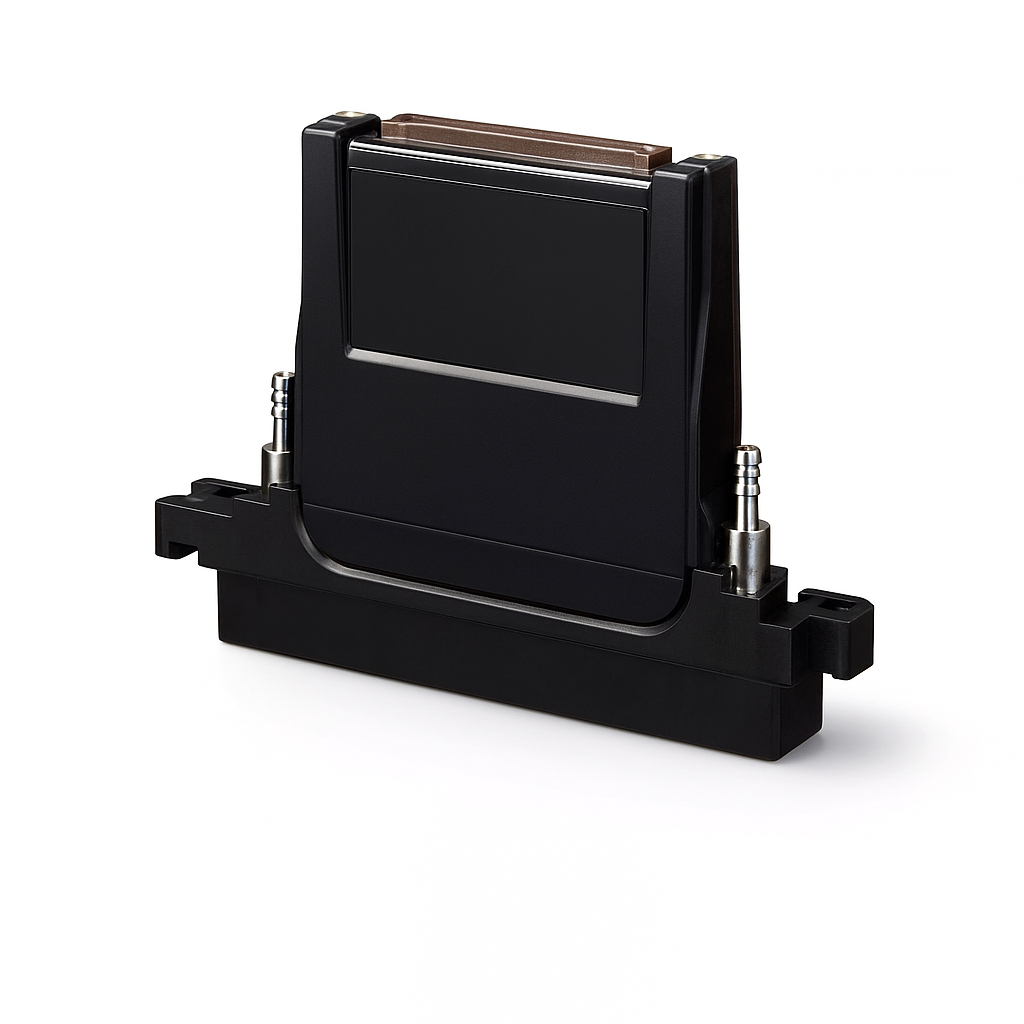

}Konica KM1024i 6988H Printhead
Brand: Konica Minolta
Tax excluded. Shipping calculated at checkout
Availability: In stock
The Konica Minolta KM1024i 6988H is a genuine original shear-mode piezoelectric printhead and the current production replacement for the discontinued KM1024i MHE-D. It features the same All-nozzle Independent Drive System, 1,024 nozzles, 13pl drop size, 45 kHz frequency, and integrated heater as the MHE-D — with the additional distinction of being a Konica Minolta Approved Green Product, using approximately one-third of the petroleum-derived materials found in older KM1024 series heads. Every KM1024i 6988H we sell at Digiprint USA is 100% genuine original Konica Minolta.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | KM1024i 6988H |
| Replaces | KM1024i MHE-D (discontinued) |
| Technology | Shear mode, piezo on-demand — All-nozzle Independent Drive |
| Nozzles | 1,024 (4 lines × 256 nozzles) |
| Native resolution | 360 dpi |
| Drop size | 13 picoliters |
| Greyscale | 8-level (max 8 drops in greyscale) |
| Max drive frequency | 45 kHz — approximately 3× faster than KM1024 series |
| Print width | 72mm |
| Integrated heater | Yes — suitable for UV, oil-based, and solvent inks |
| Ink compatibility | UV-curable, oil-based, and solvent inks |
| Dimensions | W131 × D18 × H94mm |
| Weight | Approx. 150g |
| Environmental | Konica Minolta Approved Green Product — approx. ⅓ petroleum-derived materials vs KM1024 series |
| Condition | 100% genuine original Konica Minolta, brand new |
KM1024i 6988H vs KM1024i MHE — What Changed?
| Spec | KM1024i 6988H (this listing) | KM1024i MHE |
|---|---|---|
| Production status | Current — in production | Original — check availability |
| Nozzles / drop / frequency | Identical — 1,024 nozzles, 13pl, 45 kHz | Identical — 1,024 nozzles, 13pl, 45 kHz |
| Drive system | All-nozzle Independent Drive | All-nozzle Independent Drive |
| Green Product certification | Yes — ⅓ petroleum materials of KM1024 series | Yes |
| Agfa part number | Check with team | D2+755020600085 |
The 6988H is the direct replacement for the discontinued KM1024i MHE-D. Both deliver identical printing performance — the 6988H is simply the current production model number. If your service documentation references MHE-D or your previous order was the MHE, the 6988H is the correct current replacement.
KM1024i 6988H vs KM1024 MHB — Critical Architecture Difference
The KM1024i (with lowercase "i") uses an All-nozzle Independent Drive System — all 1,024 nozzles fire simultaneously at 45 kHz, purpose-built for single-pass UV systems. The KM1024 MHB uses a shared-wall 3-cycle drive at 12.8 kHz — suited for scanning (carriage-based) wide-format printers. These are not interchangeable. Always verify which architecture your printer requires.
Compatible Printers
This printhead is compatible with the following printers:
Contact our team with your printer make and model to confirm KM1024i 6988H compatibility before ordering.
Warranty Notice
Due to the sensitive nature of industrial UV printhead components, we cannot accept returns, exchanges, or refunds once the printhead has been installed. All sales are final. Contact our team to confirm compatibility with your printer before ordering.
Why Buy from Digiprint USA
• 100% genuine original Konica Minolta KM1024i 6988H — not compatible, not refurbished
• Current production replacement for discontinued MHE-D
• In stock in Doral, Miami FL — same day shipping before 2PM EST
• Ideal for Latin American UV single-pass print shops using Miami freight forwarders
• Free technical support — we confirm 6988H vs MHE compatibility and correct variant before you order
View our full range of genuine Konica Minolta and industrial printheads stocked by Digiprint USA.
Frequently Asked Questions
Is the KM1024i 6988H a direct replacement for the KM1024i MHE-D?
Yes — the 6988H is the current production replacement for the discontinued KM1024i MHE-D. Both are functionally identical in terms of nozzle count, drop size, frequency, and compatible printers. If your printer previously used the MHE-D or your service documentation references it, the 6988H is the correct current part.
What is the difference between KM1024i 6988H and KM1024i MHE?
The KM1024i MHE and the 6988H are the same head in different production iterations. The MHE is the Agfa-numbered version (D2+755020600085) and the 6988H is the Konica Minolta model number designation. Both replace the discontinued MHE-D. Contact our team if you need help determining which version your printer's service documentation references.
What does the "i" mean in KM1024i?
The "i" designates a completely different drive architecture from the standard KM1024 series. The KM1024i uses an All-nozzle Independent Drive System — all 1,024 nozzles fire simultaneously — running at 45 kHz. The KM1024 (without "i") uses a shared-wall 3-cycle system at 12.8 kHz. They are not interchangeable.
What makes the 6988H a "Green Product"?
Konica Minolta's Approved Green Product designation means the 6988H uses approximately one-third of the petroleum-derived materials and toxic chemicals used in the previous KM1024 series, while maintaining the same nozzle unit surface area and printing performance. It is a genuine environmental improvement in manufacturing, not a marketing label.
Do you ship Konica KM1024i 6988H printheads to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse. Our Miami location is ideal for Latin American UV print shops using freight forwarders in the Doral area.
