}Kyocera KJ4B Printhead for DGI Spirit / Poseidon | Genuine Original
Brand: Kyocera
Tax excluded. Shipping calculated at checkout
Availability: In stock

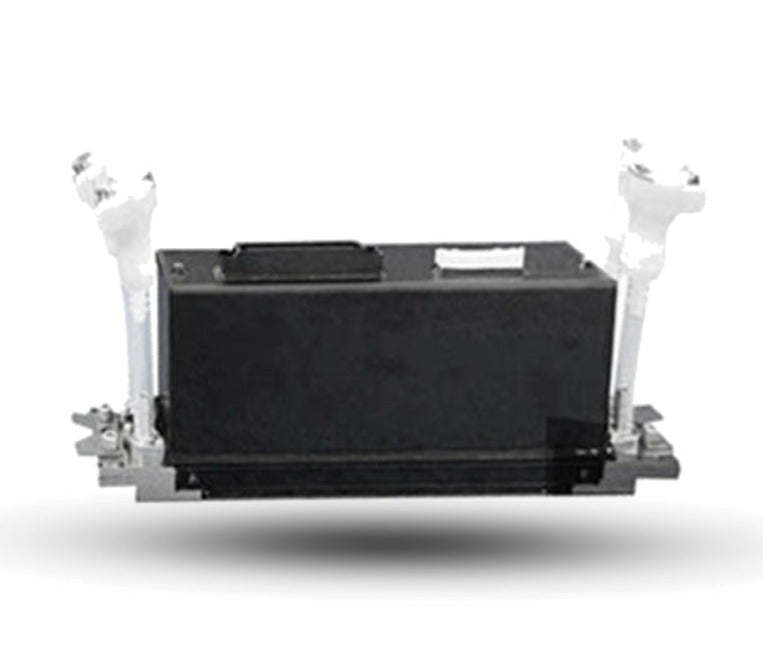

The Kyocera KJ4B for DGI Spirit / Poseidon is the genuine original DGI-specific variant of Kyocera's KJ4B industrial inkjet printhead — a dual-colour, 300 dpi aqueous head engineered specifically for DGI's high-speed dye-sublimation transfer printer platform. Based on the KJ4B-0300 architecture with 2,656 nozzles across a 112mm print swathe (2 × 1,328 nozzles per channel), it delivers variable drop volumes from 5 to 18 pl at up to 30 kHz, achieving print speeds up to 120 m/min. The DGI Poseidon uses 2 or 3 of these heads in its dye-sublimation configuration, reaching maximum printing resolutions of 600 × 1,200 dpi. Every KJ4B (DGI variant) we sell at Digiprint USA is 100% genuine original Kyocera — manufactured in Japan.
DGI-specific variant — not interchangeable with Standard or MS/EFI Reggiani versions. The KJ4B family exists in multiple hardware variants configured for specific printer manufacturers. This DGI Spirit/Poseidon version is hardware-tuned for DGI's drive electronics and ink system. It is not the same as the KJ4B-QA Standard (for Xerox Rialto, Atexco Vega), the KJ4B-0300 Standard (for MS Italy), or the KJ4B-YH (high-speed 40kHz variant). Always confirm your DGI printer model and serial number before ordering. Contact our team if unsure.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Kyocera KJ4B — DGI Spirit / Poseidon variant |
| Architecture | KJ4B-0300 based — dual-colour, 300 dpi |
| Ink type | Water-based (aqueous) — dye-sublimation |
| Total nozzles | 2,656 (2 channels × 1,328 nozzles) |
| Standard resolution | 300 × 300 dpi (native) |
| Effective print width | 112 mm |
| Max. drive frequency | 30 kHz |
| Max. print speed | Up to 120 m/min |
| Drop output | 30,000 drops/second |
| Drop volumes | 5 / 7 / 12 / 18 pl (variable) — 18pl up to 20 kHz only |
| Typical ink viscosity | 5.0 – 6.0 mPa·s |
| Temperature control | Integrated internal heater |
| Internal filters | Yes — eliminates foreign objects in ink supply |
| Country of origin | Japan |
| Condition | 100% genuine original Kyocera, brand new |
Compatible DGI Printers
This Kyocera KJ4B variant is confirmed compatible with the following DGI dye-sublimation printers:
Contact our team with your DGI printer model and serial number to confirm compatibility before ordering.
KJ4B Family — Which Kyocera Variant Do You Need?
| Variant | Resolution | For |
|---|---|---|
| KJ4B DGI variant (this listing) | 300 dpi / dual-colour | DGI Spirit, DGI Poseidon |
| KJ4B-QA Standard | 600 dpi / single-colour | Xerox Rialto 900, Atexco Vega series |
| KJ4B-0300 Standard | 300 dpi / dual-colour | MS Italy JP5/6/7, Printerevolution, FabriVu |
| KJ4B-YH | 600 dpi / single-colour | High-speed variant — 40 kHz, 100 m/min |
About the DGI Poseidon
The DGI Poseidon is an industrial dye-sublimation transfer printer equipped with 2 or 3 Kyocera KJ4B heads in a scanning carriage architecture. It supports water-based dye-sublimation inks in 4 or 6-color configurations (CMYK + Lc/Lm/Fm/Fy), with a maximum printing width of 1,880mm and maximum resolution of 600 × 1,200 dpi. Key production features include a dedicated capping station that maintains humidity to prevent nozzle drying, a head collision sensor for printhead safety, an individual degasser system that removes micro-bubbles from each head separately, and an eco-mode for reduced power consumption between runs. The Poseidon supports mini-jumbo rolls for extended unattended production.
Warranty Notice
Due to the sensitive nature of industrial printhead components, we cannot accept returns, exchanges, or refunds once the printhead has been installed. All sales are final. Contact our team to confirm DGI printer model compatibility before ordering.
Why Buy from Digiprint USA
• 100% genuine original Kyocera KJ4B (DGI variant) — manufactured in Japan, not compatible, not refurbished
• DGI-specific variant confirmed — not interchangeable with Standard, MS, or EFI Reggiani KJ4B versions
• KJ4B family expertise — we identify which variant fits your DGI model before you order
• Full spec coverage — dual-colour 300dpi, 2×1,328 nozzles, 5–18pl, 30kHz, 120m/min, internal filters, internal heater
• In stock in Doral, Miami FL — same day shipping before 2PM EST
• Ideal for Latin American DGI Poseidon production shops using Miami freight forwarders
• Free technical support — we confirm DGI Spirit vs Poseidon model and compatibility before you order
View our full range of genuine Kyocera printheads, including the KJ4B-QA Standard for Xerox Rialto and Atexco Vega.
Frequently Asked Questions
Why is the DGI variant different from other KJ4B-0300 printheads?
The KJ4B-0300 is a 300 dpi dual-colour head platform used by multiple printer manufacturers. However, each OEM configures the head's drive electronics, waveforms, and ink system interface to their specific printer architecture. The DGI Spirit/Poseidon version is hardware-configured for DGI's ink delivery system and carriage electronics — installing a KJ4B-0300 Standard (configured for MS Italy printers) in a DGI Poseidon will result in jetting failure. Always confirm the DGI-specific variant is what you need before ordering.
How many printheads does the DGI Poseidon use?
The DGI Poseidon uses 2 or 3 Kyocera KJ4B heads depending on configuration. Since each head is a dual-colour unit (2 channels × 1,328 nozzles), a 2-head configuration supports 4-colour printing (CMYK) and a 3-head configuration supports 6-colour printing (CMYK + additional spot colours such as Fluorescent Pink, Fluorescent Yellow, Light Magenta, or Light Cyan). When ordering a replacement head, confirm which head position is affected and how many heads your specific Poseidon configuration uses.
What is the difference between the DGI Spirit and DGI Poseidon?
Both the DGI Spirit and DGI Poseidon use DGI-specific Kyocera KJ4B printheads for water-based dye-sublimation transfer printing. The Poseidon is DGI's industrial-tier high-speed platform (up to 210 sqm/hr) equipped with advanced features like an individual degasser system, head collision sensor, dedicated capping station, and mini-jumbo roll support. Contact our team with your specific model name and serial number to confirm which head position and quantity you need before ordering.
Do you ship the DGI KJ4B printhead to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse before 2PM EST. Our Miami location is ideal for Latin American DGI Poseidon and Spirit production shops using freight forwarders in the Doral area.
