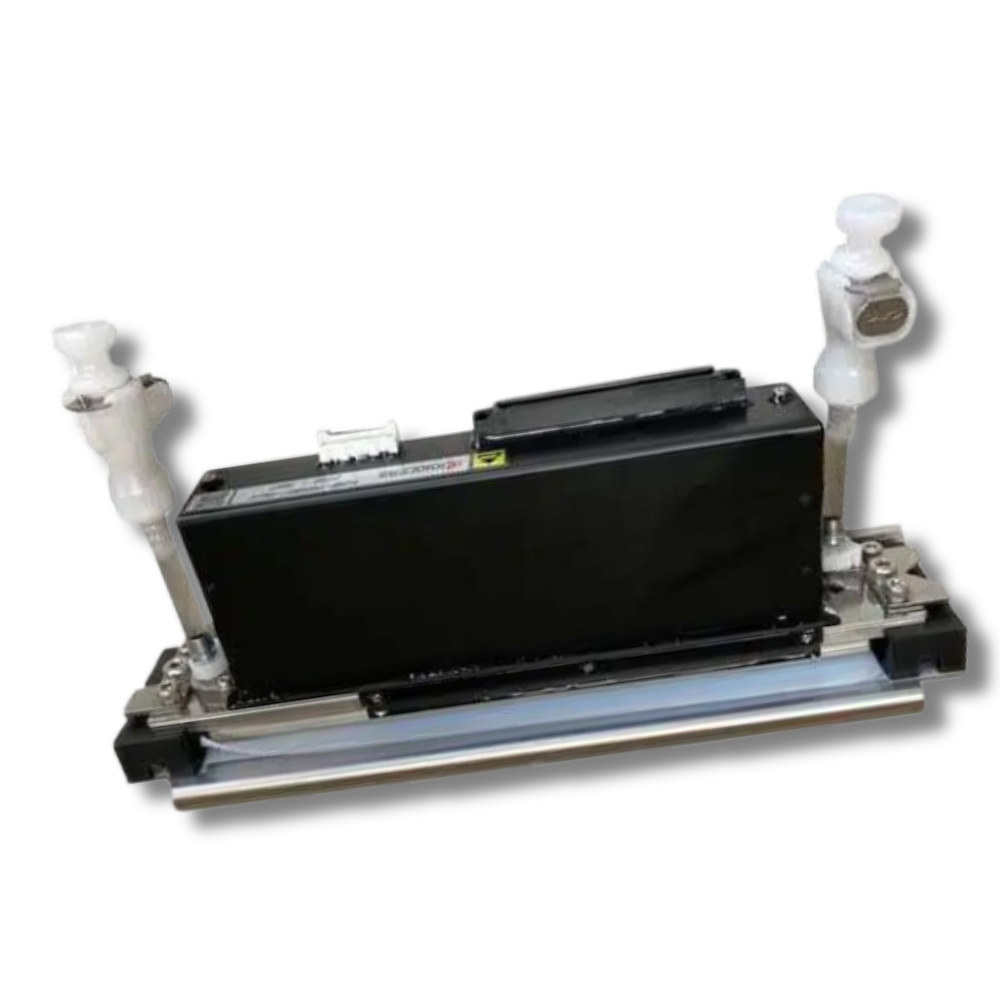

}Kyocera KJ4B-YH Water-Based Printhead
Brand: Kyocera
Tax excluded. Shipping calculated at checkout
Availability: In stock
The Kyocera KJ4B-YH is a genuine original high-speed water-based inkjet printhead delivering 600 dpi resolution at up to 100 m/min — the highest speed in the KJ4B water-based series. With 2,656 nozzles, a 40 kHz maximum drive frequency, 5–12 pl variable drop range, integrated internal filters, and built-in heater, it is engineered for demanding high-throughput aqueous production environments. Every KJ4B-YH we sell at Digiprint USA is 100% genuine original Kyocera Japan.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Kyocera KJ4B-YH |
| Total nozzles | 2,656 (single colour) |
| Nozzle pitch | 0.042 mm |
| Standard resolution | 600 × 600 dpi |
| Print swathe width | 108.25 mm |
| Drop volume | 5, 7, and 12 pl (variable) |
| Max drive frequency | 40 kHz |
| Max print speed | 100 m/min |
| Drop output | Up to 30,000 drops/second |
| Ink compatibility | Water-based / aqueous inks |
| Optimum ink viscosity | 5.0 – 6.0 mPas |
| Temperature control | Internal heater and thermistor |
| Internal filters | Yes — eliminates foreign objects from ink path |
| Dimensions | 200 × 30 × 60.9 mm |
| Dry weight | 438 g |
| Country of origin | Japan |
| Warranty | Manufacturer warranty included |
KJ4B-YH vs KJ4B-QA/QL — Key Differences
| Spec | KJ4B-YH (this listing) | KJ4B-QA / KJ4B-QL |
|---|---|---|
| Resolution | 600 dpi | 600 dpi |
| Max frequency | 40 kHz | 30 kHz |
| Max speed | 100 m/min | 75 m/min |
| Drop volumes | 5, 7, 12 pl | 5, 7, 12, 18 pl |
| Dimensions | 200 × 30 × 60.9 mm / 438g | 200 × 25 × 59.3 mm / 420g |
| Primary application | High-speed aqueous production (Colourstream) | Textile / DTG / label printing |
The KJ4B-YH runs at 40 kHz (vs 30 kHz for the QA/QL) and reaches 100 m/min (vs 75 m/min) — the highest speed in the KJ4B water-based line. It is not physically interchangeable with the KJ4B-QA/QL due to its different dimensions. Always confirm your printer's specified model before ordering.
Compatible Printers
Contact our team with your printer make, model, and firmware version to confirm KJ4B-YH compatibility before ordering.
Warranty Notice
Due to the sensitive nature of industrial inkjet printhead components, we cannot accept returns, exchanges, or refunds once the printhead has been installed. All sales are final. Contact our team to confirm compatibility before ordering.
Why Buy from Digiprint USA
• 100% genuine original Kyocera KJ4B-YH — not compatible, not refurbished
• Manufacturer warranty — sealed original Kyocera packaging
• In stock in Doral, Miami FL — same day shipping before 2PM EST
• Ideal for Latin American Canon/Océ Colourstream operations using Miami freight forwarders
• Free technical support — we confirm KJ4B-YH vs KJ4B-QA and correct water-based head for your printer
View our full range of genuine Kyocera industrial printheads including the KJ4B-QA / KJ4B-QL.
Frequently Asked Questions
What is the difference between KJ4B-YH and KJ4B-QA?
Both are 600 dpi, 2,656-nozzle, aqueous-ink KJ4B heads. The YH runs at 40 kHz (vs 30 kHz for the QA) and reaches 100 m/min (vs 75 m/min) — making the YH the higher-speed variant. The YH also has slightly different physical dimensions (200 × 30 × 60.9mm vs 200 × 25 × 59.3mm) — they are not physically interchangeable. Always check your printer's service documentation for the specified model.
Is this listed as "UV" on your site? The KJ4B-YH is water-based, not UV.
You are correct — this is a water-based / aqueous printhead. The product title was incorrectly labelled; this listing is the genuine Kyocera KJ4B-YH for water-based inks, as confirmed in the specifications above. The Kyocera KJ4A series are the UV heads.
Do you ship Kyocera KJ4B-YH printheads to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse. Our Miami location is ideal for Latin American Canon/Océ production operations using freight forwarders in the Doral area.
