}Mutoh XpertJet I9472 Print Head Assy with Base DH-40275
Brand: Mutoh
Tax excluded. Shipping calculated at checkout
Availability: In stock
%20%E2%80%94%20supplied%20pre-mounted%20with%20the%20base%20for%20direct%20drop-in%20installation.%20It%20is%20functiona...
){kind=link}

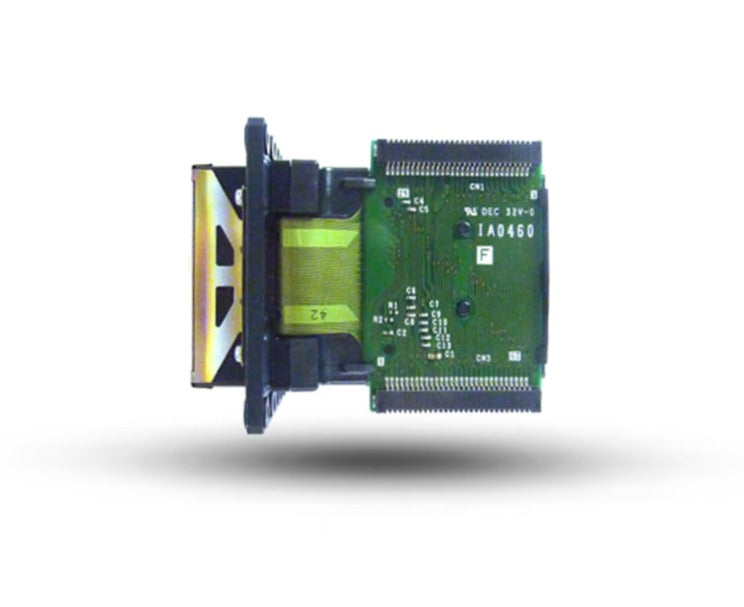

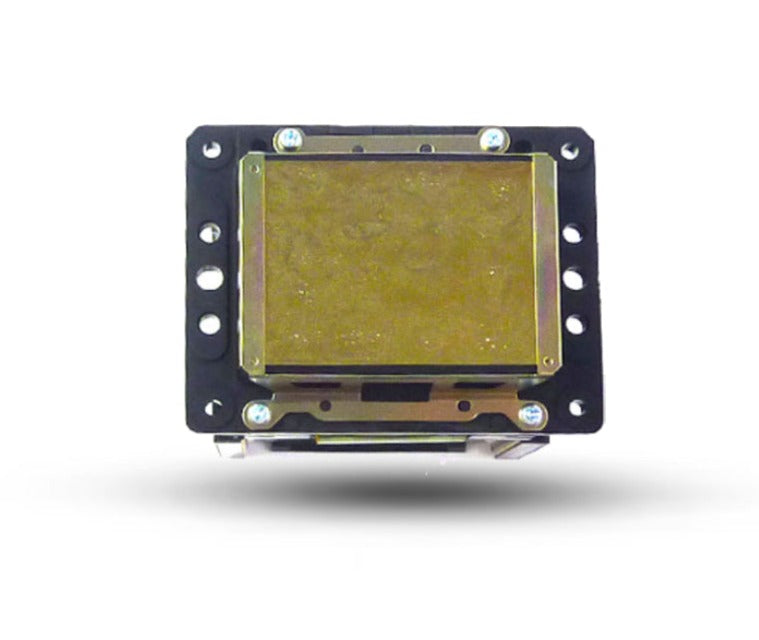

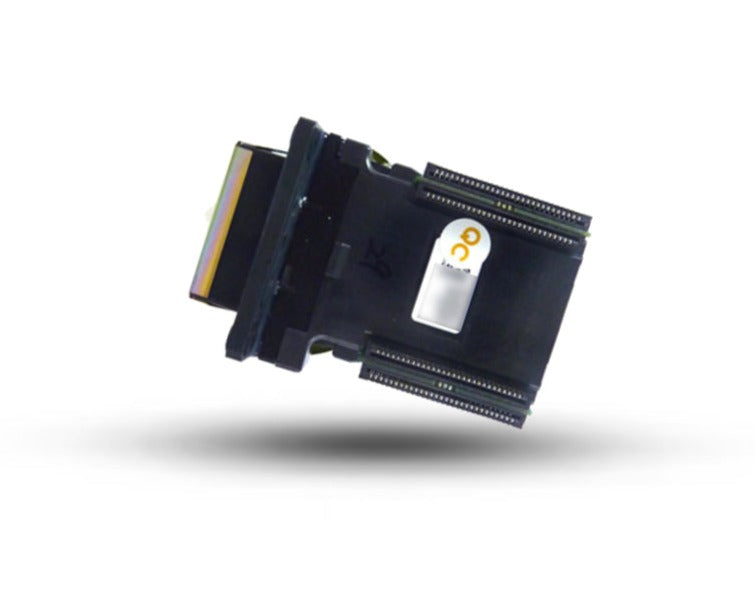

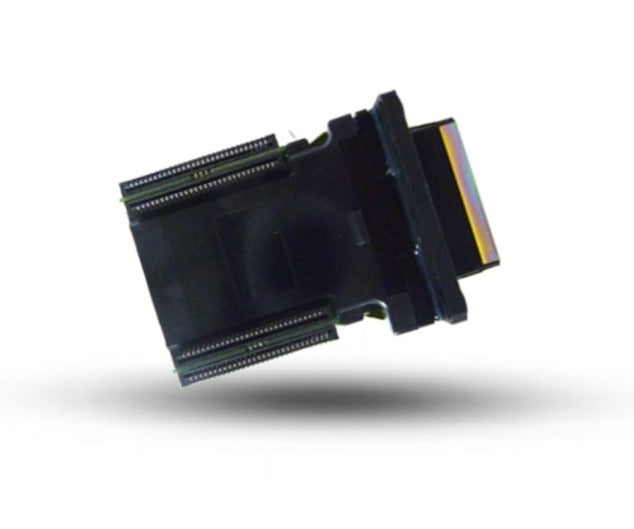

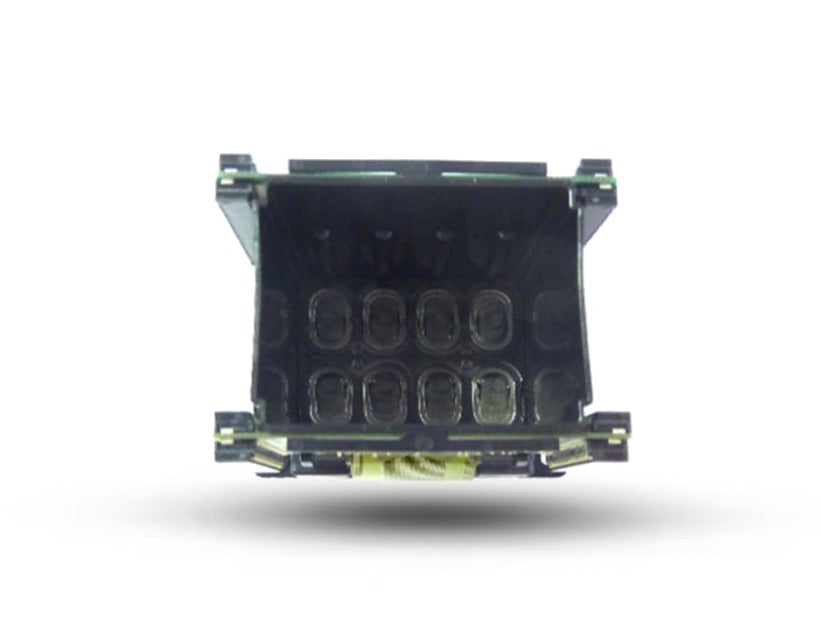

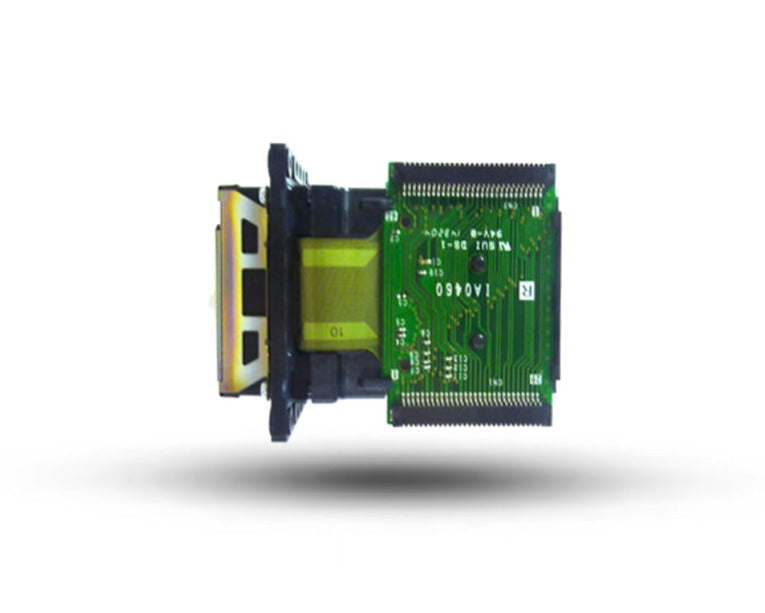

The Mutoh DH-40275 is the genuine original piezo printhead assembly for the Mutoh XpertJet 1641SR (XPJ-1641SR) — supplied pre-mounted with the base for direct drop-in installation. It is functionally identical to the DH-40274 printhead but ships with the mounting base attached, eliminating the bracket transfer step during replacement. With 1,440 total nozzles across 8 independent ink channels, variable drop volume from 3.5 to 35 pl, and resolution support up to 1440×1440 dpi, it is the correct OEM replacement for maintaining full print quality on the XPJ-1641SR. Every DH-40275 we sell at Digiprint USA is 100% genuine original Mutoh.
DH-40275 vs DH-40274 — what is the difference? Both are the same XpertJet I9472 printhead (MS41). The DH-40274 ships as a bare head only; the DH-40275 ships with the mounting base pre-installed. If your replacement workflow involves reusing the existing base from the old head, order DH-40274. If you want a complete ready-to-install unit with a fresh base, order DH-40275. Contact our team if unsure — we confirm the right part before you order.
Technical Specifications
| Specification | Detail |
|---|---|
| Part Number | DH-40275 |
| Also known as | XpertJet I9472 Head Assy (MS41) with Base |
| Bare head equivalent | DH-40274 (same printhead, without base) |
| Technology | Piezo inkjet |
| Nozzle configuration | 180 nozzles × 8 lines = 1,440 total nozzles |
| Ink channels | 8 independent channels |
| Drop volume range | 3.5 – 35 pl (variable) |
| Supported resolutions | 360×360 / 360×720 / 720×720 / 720×1080 / 720×1440 / 1440×1440 dpi |
| Head height (Low) | 1.5 mm |
| Head height (Middle) | 2.5 mm |
| Head height (High) | 4.0 mm |
| Ink compatibility | Eco-solvent |
| Mounting | Includes base — ready to install |
| Condition | 100% genuine original Mutoh, brand new |
Compatible Printer
Contact our team with your printer serial number and current part number to confirm DH-40275 vs DH-40274 before ordering.
Warranty Notice
Due to the sensitive nature of industrial printhead components, we cannot accept returns, exchanges, or refunds once the printhead has been installed. All sales are final. Contact our team to confirm the correct part number before ordering.
Why Buy from Digiprint USA
• 100% genuine original Mutoh DH-40275 — not compatible, not refurbished, OEM part
• Comes with base pre-installed — no bracket transfer needed, faster installation vs DH-40274
• Full resolution support up to 1440×1440 dpi with 3.5 pl minimum drop — complete spec coverage no competitor lists
• In stock in Doral, Miami FL — same day shipping before 2PM EST
• Ideal for Latin American Mutoh XPJ-1641SR shops using Miami freight forwarders
• Free technical support — we confirm DH-40275 vs DH-40274 and correct part for your serial number before you order
View our full range of genuine Mutoh printheads and spare parts.
Frequently Asked Questions
What is the difference between DH-40275 and DH-40274?
They are the same XpertJet I9472 (MS41) printhead. DH-40274 is the bare head without a base — used when a technician transfers the existing mounting base to the new head. DH-40275 includes the mounting base pre-installed, making it a complete plug-in replacement unit. If you are unsure which your installation requires, contact our team with your current part number and we will confirm before you order.
What resolutions does the DH-40275 support on the XPJ-1641SR?
The DH-40275 supports six resolution modes on the XPJ-1641SR: 360×360, 360×720, 720×720, 720×1080, 720×1440, and 1440×1440 dpi — covering draft through production-quality output. The three adjustable head heights (1.5 / 2.5 / 4.0 mm) allow media gap calibration for different substrate thicknesses.
What ink types is the DH-40275 compatible with?
The DH-40275 is designed for eco-solvent inks as used in the Mutoh XPJ-1641SR. Always use Mutoh-approved ink formulations to maintain printhead warranty and service life.
Do you ship the DH-40275 to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse before 2PM EST. Our Miami location is ideal for Latin American Mutoh XPJ-1641SR shops using freight forwarders in the Doral area.
