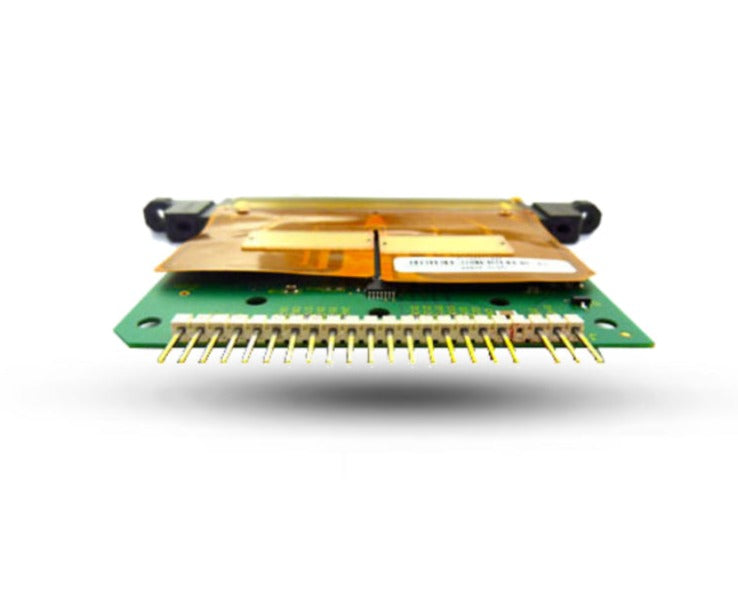

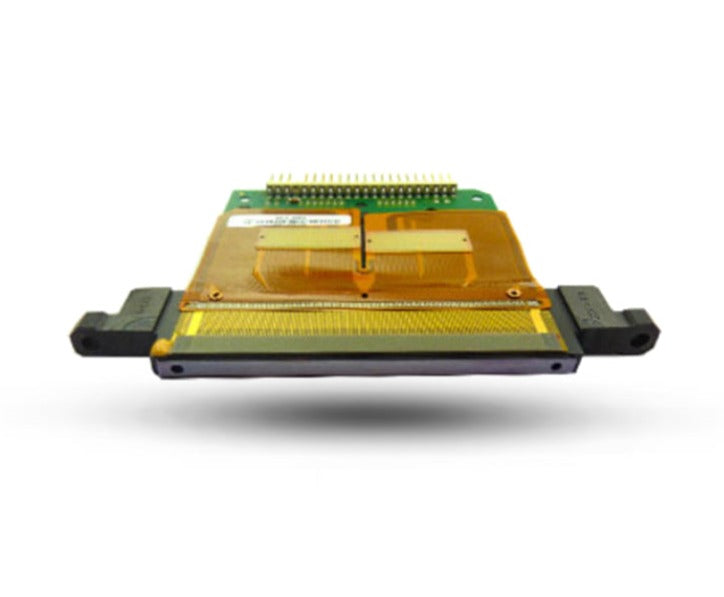

}Fujifilm Dimatix Sapphire QS-256/14 AAA Printhead
Brand: Dimatix
Tax excluded. Shipping calculated at checkout
Availability: In stock
The Fujifilm Dimatix Sapphire QS-256/14 AAA is a genuine original Q-Class industrial inkjet printhead delivering VersaDrop binary and grayscale jetting from 14–30 pl at up to 50 kHz across a 64.77mm print width — the fine-drop, high-frequency variant of the QS-256 family. With 256 precision-registered nozzles, dual-ported fluid interface, integral temperature sensor, OEM-accessible non-volatile memory, double-buffered driver chip, and inert silicon nozzle plate, it is engineered for demanding UV, solvent, and aqueous wide-format production environments. Manufactured in Japan. Every QS-256/14 AAA we sell at Digiprint USA is 100% genuine original Fujifilm Dimatix.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Fujifilm Dimatix Sapphire QS-256/14 AAA |
| Platform | Q-Class Sapphire QS-256 family |
| Technology | VersaDrop — binary and grayscale jetting |
| Total nozzles | 256 independent channels in a single row |
| Nozzle spacing | 254 µm (100 dpi native) |
| Print width | 64.77 mm (2.55") |
| Calibrated drop size | 14 pl |
| VersaDrop binary range | 14 – 30 pl (adjustable) |
| Grayscale mode | 14 pl fundamental drop — multi-level grayscale |
| Drop velocity | 8 m/s (nominal) |
| Max firing frequency | 50 kHz at 14 pl / 16 kHz at 30 pl |
| Operating temperature | Up to 90°C |
| Ink viscosity range | 10 – 14 cP |
| Ink compatibility | UV-curable, solvent, and aqueous inks |
| Fluid interface | Dual-ported — O-ring face mounts or barbed fittings |
| Driver chip | Double-buffered for high-speed jetting support |
| Temperature control | Integral temperature sensor |
| Nozzle plate | Inert silicon — wide ink compatibility |
| Memory | OEM-accessible non-volatile memory area for tracking |
| Registration | Precision points — nozzle reference to within a few microns |
| Country of origin | Japan |
| Condition | 100% genuine original Fujifilm Dimatix, brand new |
Sapphire QS-256 Family — Which Drop Size Do You Need?
| Model | Drop Range | Max Frequency | Best For |
|---|---|---|---|
| QS-256/14 AAA (this listing) | 14 – 30 pl | 50 kHz | Highest speed, fine detail — Screen Truepress, Inca Onset X3 |
| QS-256/30 AAA | 30 – 80 pl | 33 kHz | Balanced quality and throughput — Durst Rho, Inca Onset S40 |
| QS-256/80 AAA | 80 – 200 pl | — | High-coverage, high-throughput production |
Compatible Printers
The QS-256/14 AAA is confirmed compatible with the following printers:
Contact our team with your printer make, model, and current head part number to confirm QS-256/14 AAA compatibility before ordering.
Warranty Notice
Due to the sensitive nature of industrial printhead components, we cannot accept returns, exchanges, or refunds once the printhead has been installed. All sales are final. Contact our team to confirm compatibility before ordering.
Why Buy from Digiprint USA
• 100% genuine original Fujifilm Dimatix QS-256/14 AAA — manufactured in Japan, not compatible, not refurbished
• Double-buffered driver chip — supports the /14's high 50 kHz jetting speed, a spec competitors don't list
• In stock in Doral, Miami FL — same day shipping before 2PM EST
• Ideal for Latin American Screen Truepress and Inca Onset shops using Miami freight forwarders
• Free technical support — we confirm QS-256/14 vs /30 vs /80 for your printer before you order
View our full range of genuine Fujifilm Dimatix Sapphire printheads including the QS-256/30 AAA.
Frequently Asked Questions
What is the difference between QS-256/14 and QS-256/30?
Both are 256-channel, 64.77mm Sapphire heads with VersaDrop jetting. The QS-256/14 is the high-speed fine-drop variant: 14–30 pl, 50 kHz at 14pl, 16 kHz at 30pl — designed for maximum throughput in Screen Truepress and Inca Onset X3 architectures. The QS-256/30 is the medium-drop variant: 30–80 pl, 33 kHz. Your printer's OEM configuration determines which variant is correct. Always confirm before ordering — they are not interchangeable.
Does the QS-256/14 AAA work with UV, solvent, and aqueous inks?
Yes. The inert silicon nozzle plate and 10–14 cP viscosity range make it compatible with UV-curable, organic solvent, and aqueous-based inks and their associated maintenance fluids.
Do you ship the QS-256/14 AAA to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse before 2PM EST. Our Miami location is ideal for Latin American Screen Truepress and Inca Onset production shops using freight forwarders in the Doral area.
