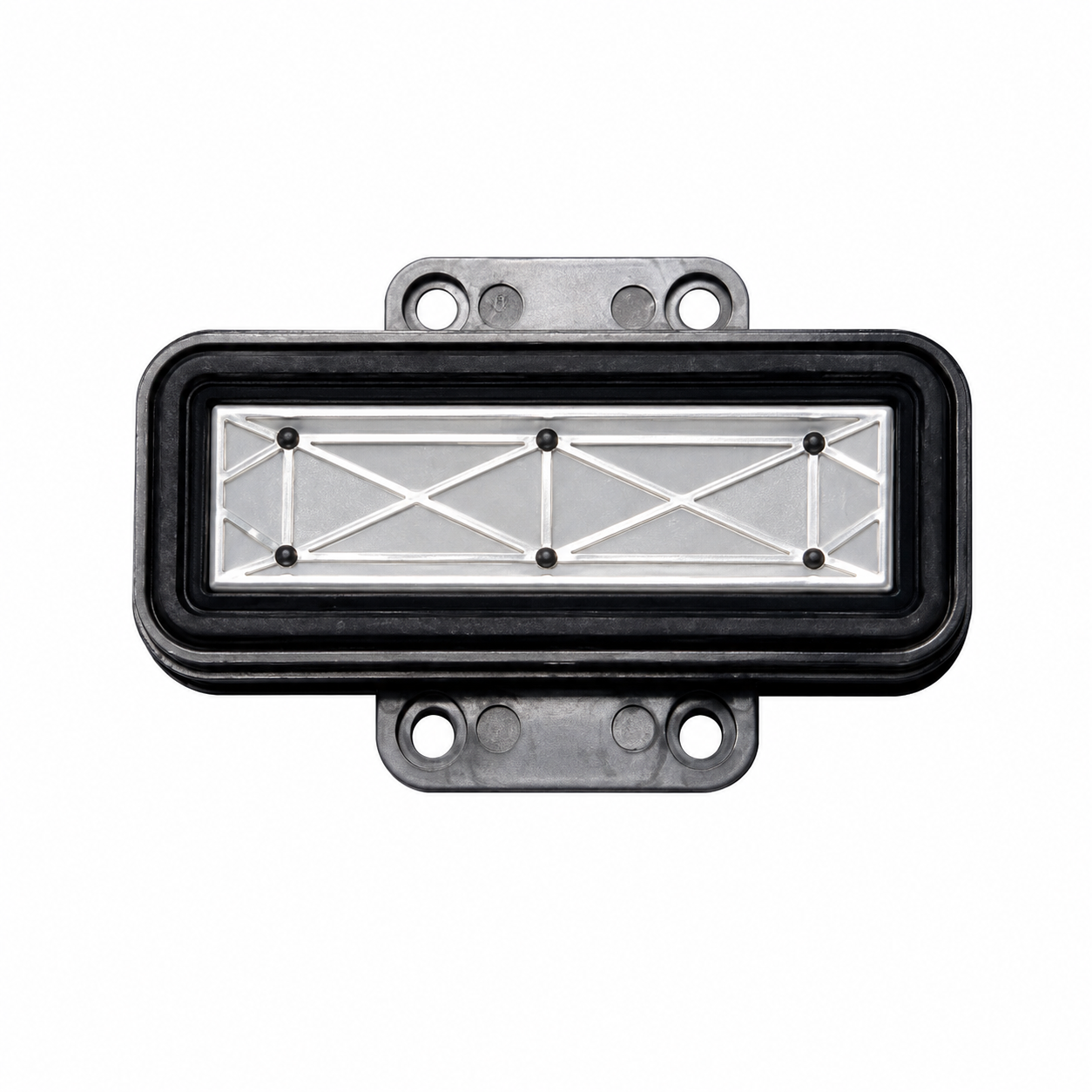

Ricoh Gen5 Cap Top – MH5420/MH5440 Capping Station Seal

The Ricoh Gen5 Cap Top is a replacement capping station cap for industrial inkjet printers using the Ricoh Gen5 printhead (MH5420 / MH5421 / MH5440) — compatible with UV, solvent, and aqueous ink systems. The cap top seals against the Gen5 nozzle face when the printhead is parked at the home position, preventing ink from drying in the nozzle channels during idle periods, and provides the sealed chamber through which the ink pump creates suction during cleaning and purge cycles.

Product Details

Specification	Detail
Compatible printhead	Ricoh Gen5 (MH5420 / MH5421 / MH5440)
Component type	Cap top / capping unit — nozzle face seal and cleaning suction chamber
Ink compatibility	UV-curable, solvent, and aqueous inks
Recommended replacement interval	At every printhead installation, or sooner if seal integrity fails

About the Ricoh Gen5 Printhead Platform

The Ricoh Gen5 (MH5420/MH5440) is one of the most widely used industrial printheads in the UV, solvent, and aqueous inkjet market, offering 1,280 nozzles in a 4-colour configuration, 600 dpi resolution, and a 7–35pl variable drop volume at jetting frequencies up to 60kHz. It has become the standard printhead across a broad range of OEM printer platforms and is used in Agfa Jeti Mira and Titan series, CET Color Q5, Handtop HT-series, Akad Novajet, and Docan UV printers, among many others. Because the Gen5 capping station design has stayed consistent across these OEM platforms, a single cap top part covers the full range of Gen5-based machines regardless of printer brand.

Which Printers Is This Cap Top Compatible With?

This cap top is compatible with all UV, solvent, and aqueous printers using the Ricoh Gen5 printhead platform, including:

Not sure if this cap top fits your printer? Contact us — our US-based support team will confirm compatibility before you order.

Why Does the Cap Top Need Replacing?

When the Gen5 printhead parks at the home position between print jobs and overnight, the cap top presses against the nozzle face to create an airtight seal. In UV ink environments, photoinitiators cause progressive viscosity increase on air exposure, so this seal is what keeps the nozzles primed rather than curing or drying in place. Every capping cycle presses the rubber cap against the nozzle plate, and over months of daily use the rubber compresses, hardens, and picks up dried ink residue along the seal edge. Once the rubber loses its shape or ink builds up on the contact surface, the cap can no longer form a complete seal — air reaches the nozzles during idle periods and ink dries inside the channels. At that point, cleaning and purge cycles also lose suction, since the cap top doubles as the sealed chamber the pump draws through, so nozzles that would normally recover with a standard cleaning cycle stay blocked instead. A worn cap top left in service long enough causes permanent nozzle blockages that no amount of cleaning will resolve.

Signs the Cap Top Needs Replacing

• Nozzle dropout appearing after idle periods — cap no longer sealing nozzle face

• Cleaning cycles failing to recover nozzles — insufficient suction from a failed seal

• Ink drying or curing on the cap top surface — preventing correct seal contact

• Visible cracking, deformation, or hardening of the cap rubber

Ricoh Gen5 vs Gen6 — Choosing the Right Cap Top

Specification	Gen5 (MH5420/MH5440) — this listing	Gen6 (MH5320)
Total nozzles	1,280	1,280
Ink compatibility	UV, solvent, and aqueous	UV only
Minimum drop volume	7pl minimum	5pl — finer, less graininess
Jetting frequency	Up to 60kHz	Up to 50kHz
Service life	Standard	Roughly 2× longer
Best for	Broadest OEM install base — UV, solvent, and aqueous machines	Newer UV-only industrial flatbeds

Ricoh Gen5 Printer Maintenance Checklist

• Cap top (this listing) — replace at every printhead installation and when seal integrity fails

• Head data cables — replace at every printhead installation

• Wiper blade — replace with the cap top as a single maintenance event

• Ricoh Gen5 printhead — available separately at Digiprint USA

Why Buy from Digiprint USA

• Compatible with UV, solvent, and aqueous Gen5-based printer platforms

• In stock in Doral, Miami FL — same day shipping before 2PM EST

• We also stock the Ricoh Gen5 printhead — contact us to bundle head and cap top in one order

• Ideal for Latin American Gen5-based UV flatbed and industrial inkjet operations using Miami freight forwarders

Browse our full range of industrial inkjet printer spare parts including printheads, dampers, and filters.

View all Ricoh printheads and accessories stocked by Digiprint USA.

Frequently Asked Questions

What is the Ricoh Gen5 cap top?
The Gen5 cap top seals the Ricoh Gen5 (MH5420/MH5421/MH5440) printhead nozzle face during idle periods — preventing UV, solvent, or aqueous ink from drying in the nozzle channels — and provides the suction chamber for cleaning and purge cycles. Replace it at every printhead installation and whenever the seal is worn or compromised.

Which printers is this cap top compatible with?
This cap top fits any OEM printer platform built around the Ricoh Gen5 printhead, including Agfa Jeti Mira and Titan, CET Color Q5, Handtop HT-series, Akad Novajet, and Docan UV printers. Since Gen5 capping stations share a common design across OEM brands, one part covers the full Gen5 install base.

Is this compatible with the Ricoh Gen6 MH5320?
No. The Gen6 MH5320 has different physical dimensions and nozzle plate geometry from the Gen5 MH5420/MH5440 — the cap tops are not interchangeable. Always confirm your printhead is labeled Gen5 / MH5420 / MH5421 / MH5440 before ordering.

How often should the cap top be replaced?
Digiprint USA recommends replacing the cap top at every printhead installation, or sooner if you notice nozzle dropout after idle periods, failed cleaning cycles, ink drying on the cap surface, or visible cracking and hardening of the rubber — any of which indicate the seal has failed.

Do you ship Gen5 cap tops to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse. Digiprint USA is the closest US supplier to Gen5-based UV flatbed and industrial inkjet operations in Colombia, Mexico, Brazil, Peru, Chile, Argentina, and the Caribbean.
