}Ricoh GEN5 UV Printhead MH5420 248mm | N221414J 4-Colour
Brand: Ricoh
Tax excluded. Shipping calculated at checkout
Availability: In stock
.%20It%20has%20a%20total%20of%201.280%20nozzles.%20This%20is%20Ricoh%20original%20printhead%20part%20(nu...
){kind=link}

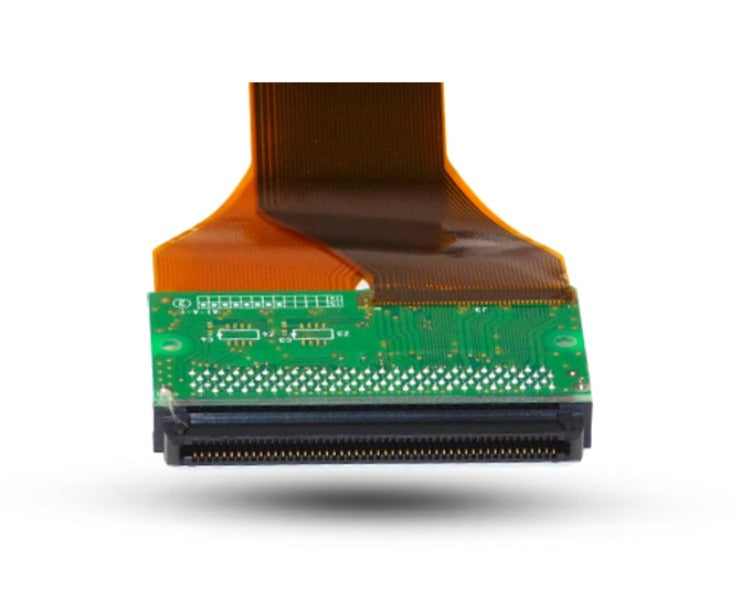

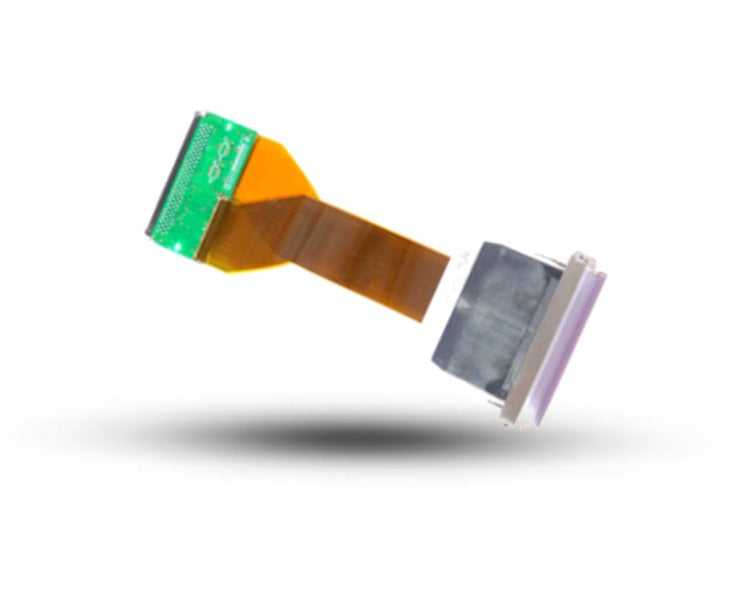

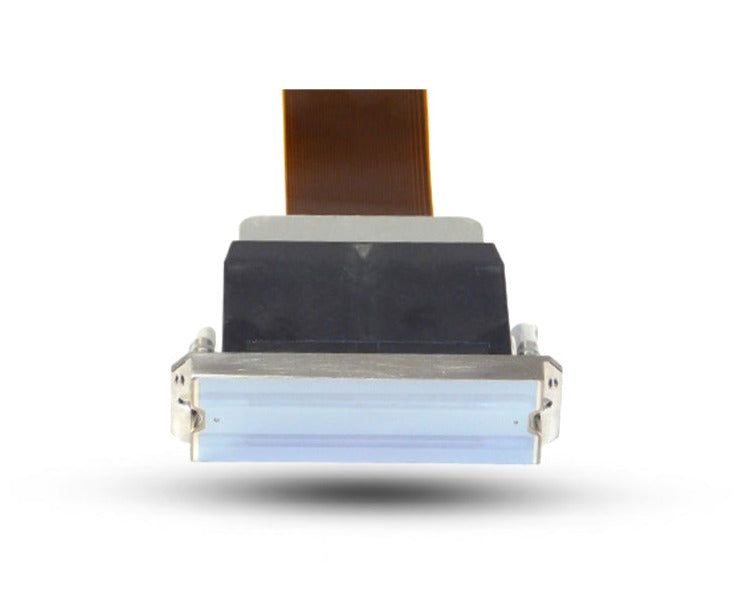

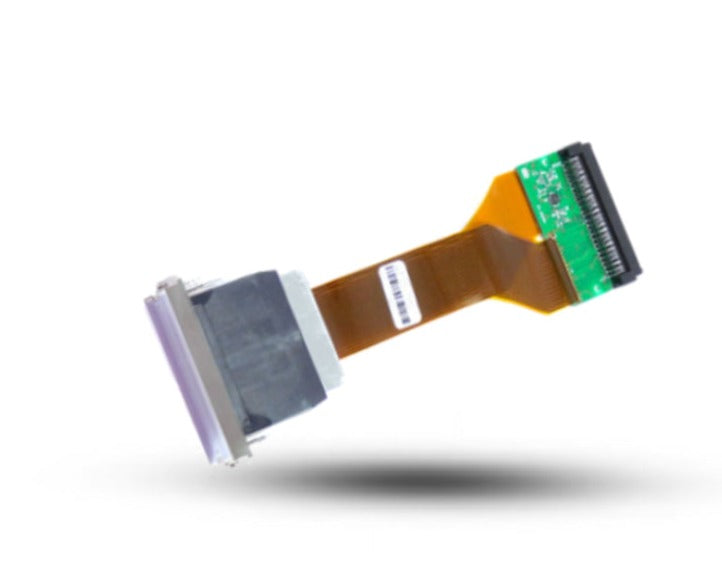

This GEN5 UV printhead is suitable for a range of UV, water and solvent printers (Ricoh part number N221414J / N221414T). It has a total of 1.280 nozzles. This is Ricoh original printhead part (number MH5420) and it is covered by a manufacturer warranty. This Ricoh GEN5 is 248mm long in total (head body + cable + connectors). The head cable is 148 mm long. This printhead is the original Durst Alpha 190 / 330 printhead. This printhead comes with the hose barbs which can easily be removed if needed.
This printhead doesn't work on the EFI printers that need N221414B instead.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Ricoh GEN5 MH5420 (UV / Solvent) |
| Ricoh part code | N221414J (248mm version) |
| Total length | 248mm (head body + cable + connectors) |
| Cable length | 148mm |
| Total nozzles | 1,280 (4 × 320 nozzles) |
| Colour channels | Up to 4 colours |
| Native resolution | 600 dpi |
| Nozzle density | Up to 600 NPI |
| Nozzle spacing | 0.1693 mm |
| Native drop volume | 7 pl |
| Drop volume range | 7 – 35 pl (greyscale) |
| Drop velocity | 7 m/s |
| Jetting frequency | Up to 60 kHz |
| Piezo type | D33 Stacked PZT |
| Temperature control | Integrated heater and thermistor — up to 80°C operation |
| Dimensions (excl. cable) | 89 × 25 × 69 mm |
| Head materials | SST, nickel alloy, epoxy adhesive |
| Nozzle plate surface | Coated SST |
| Ink compatibility | UV-curable and solvent-based inks |
| Service life | 100 billion actuations per nozzle |
| Warranty | Manufacturer warranty included |
| Country of origin | Japan |
Ricoh GEN5 Variant Guide — MH5420 UV vs MH5421 Water vs MH5421F
| Model | Ink Type | Colours | Key Use |
|---|---|---|---|
| MH5420 UV (this listing) | UV-curable / solvent | Up to 4 | UV flatbed, UV roll-to-roll, solvent wide-format |
| MH5421 Water 248mm | Water-based | Up to 2 | Sublimation, dye-sub, aqueous textile |
| MH5421F | Water-based (enhanced) | Up to 2 | Single-pass systems, pigment, white ink, fast-drying |
The MH5420 and MH5421 share identical physical dimensions and 7pl/60kHz specifications but are optimised for different ink chemistries. The MH5420 handles 4 UV/solvent colour channels; the MH5421 handles 2 water-based channels. The MH5421F adds recirculation for demanding single-pass applications. They are not interchangeable — always confirm your printer's specified model and ink system.
Confused about colour-port count instead of ink type? See our MH5420 vs MH5440 comparison guide for a full breakdown of the 2-colour vs 4-colour Ricoh GEN5 heads.
Cable Length — 248mm vs 500mm
The MH5420 is available in two cable lengths. This listing is the 248mm total-length version (N221414J, 148mm cable). If your printer requires the 500mm total-length version (400mm cable), contact our team for availability. Always confirm which cable length your printer specifies before ordering — the head body and print specs are identical across cable lengths.
Compatible Printers
This printhead is compatible with the following UV and solvent printers:
Contact our team with your printer make, model, and required cable length to confirm MH5420 248mm compatibility before ordering.
Warranty Notice
Due to the sensitive nature of industrial UV printhead components, we cannot accept returns, exchanges, or refunds once the printhead has been installed. All sales are final. Contact our team to confirm compatibility with your printer before ordering.
Why Buy from Digiprint USA
• 100% genuine original Ricoh MH5420 (N221414J) — not compatible, not refurbished
• Manufacturer warranty included
• In stock in Doral, Miami FL — same day shipping before 2PM EST
• Ideal for Latin American UV flatbed print shops using Miami freight forwarders
• Free technical support — we confirm MH5420 vs MH5421 vs MH5421F and correct cable length for your printer before you order
View our full range of genuine Ricoh GEN5 printheads including the MH5421 Water 248mm and the MH5421F.
Frequently Asked Questions
What is the difference between MH5420 and MH5421?
The MH5420 is optimised for UV-curable and solvent inks, supporting up to 4 colour channels. The MH5421 is optimised for water-based inks with up to 2 colour channels. Both share the same 7pl, 60kHz, 1,280-nozzle specs and identical physical dimensions. They are not interchangeable — always confirm your printer's ink system before ordering.
What Ricoh part code is the MH5420 248mm?
The MH5420 with 248mm total length carries Ricoh code N221414J. The same head in a 500mm total-length configuration uses a different Ricoh code. Always specify cable length when ordering to ensure you receive the correct version for your printer.
Is the MH5420 compatible with both UV and solvent inks?
Yes — the MH5420 is designed for UV-curable and solvent-based inks. It is not recommended for water-based inks — use the MH5421 for water-based applications. Always verify ink compatibility with your printer manufacturer's specifications.
What printers use the Ricoh GEN5 MH5420?
The MH5420 is used in Agfa Jeti Mira, Jeti Tauro and Jeti Titan series, CET Color Q5-1000, Akad NovaJet UV M6, Docan UV series, and Handtop HT UV series printers. Contact our team with your specific model to confirm cable length requirements before ordering.
