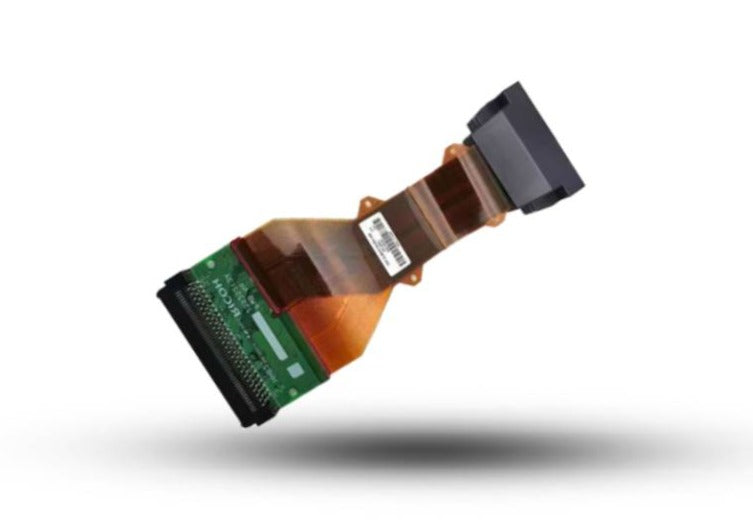

}Ricoh GEN6 Printhead (Cable: 447mm) - MH5320
Brand: Ricoh
Tax excluded. Shipping calculated at checkout
Availability: In stock
The Ricoh GEN6 MH5320 is the most advanced printhead in the Ricoh industrial inkjet series. With more than double the service life of the GEN5 it replaced, the MH5320 delivers exceptional print quality with a minimised 5pl droplet and improved jetting accuracy. This is the 447mm cable version — total length including the printhead body is 500mm. Every MH5320 we sell at Digiprint USA is 100% genuine original Ricoh with manufacturer warranty.
Technical Specifications
| Specification | Detail |
|---|---|

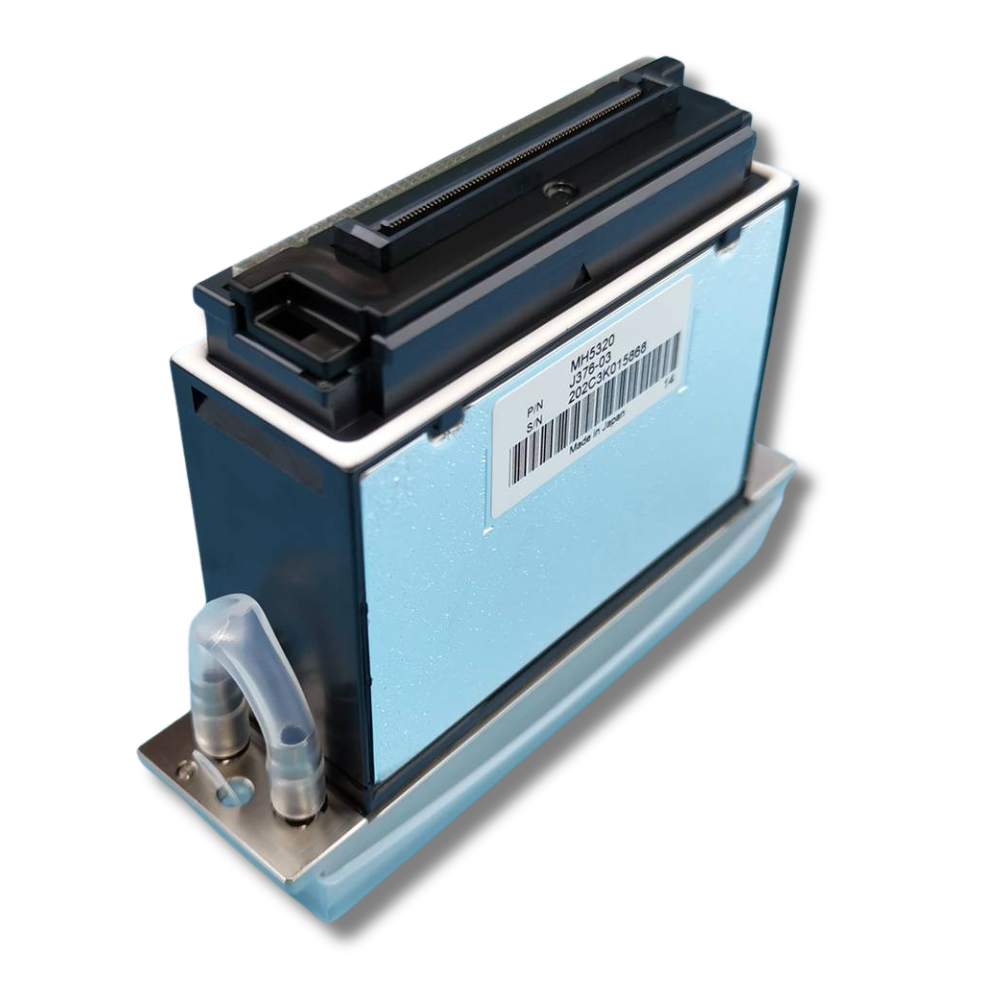

| Model / Part number | MH5320 — SKUs: J376-03 (head) + J352-04 (cable 445mm) |
| Generation | Ricoh GEN6 |
| Nozzles | 1,280 nozzles (4 rows × 320 nozzles) |
| Native resolution | 600 dpi |
| Minimum drop size | 5 picoliters |
| Greyscale frequency | Maximum 50 kHz |
| Ink compatibility | UV-curable inks |

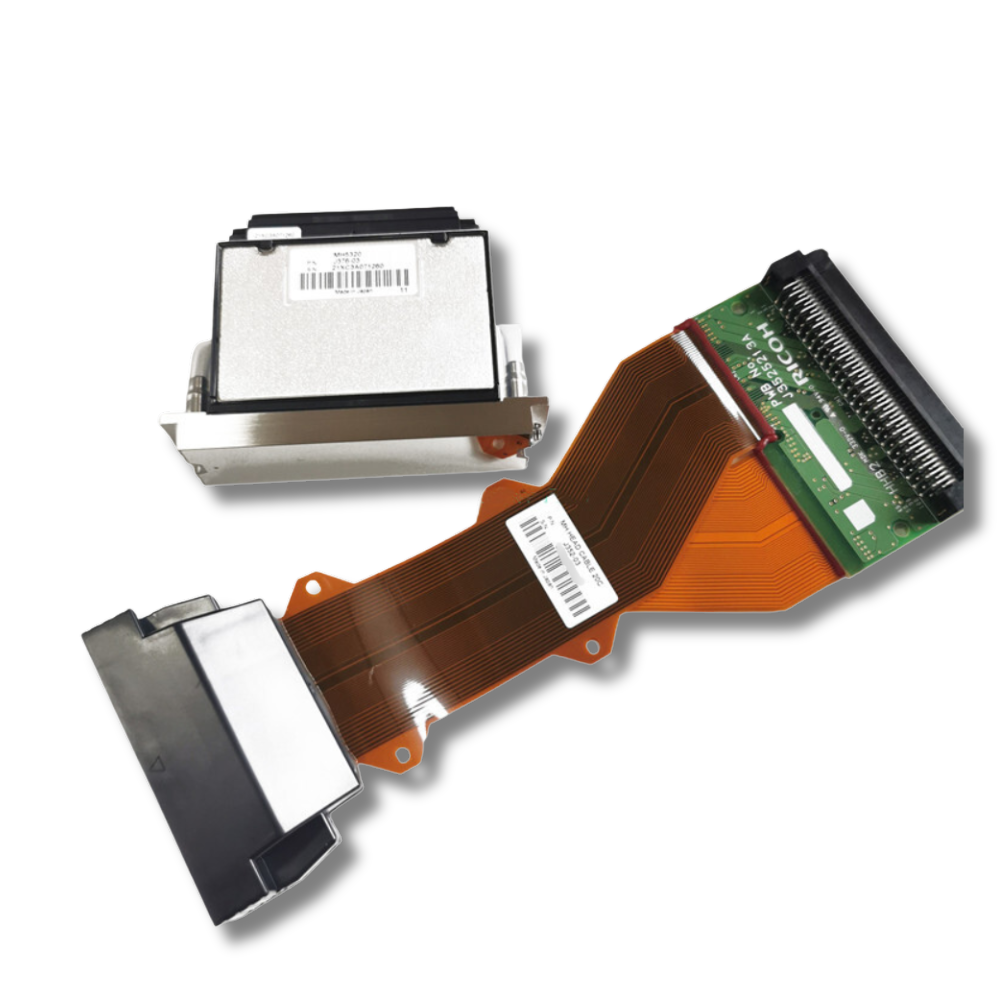

| Cable length | 447mm cable / 500mm total length |
| Colour channels | 2 colour head |
| Service life | More than 2× longer than GEN5 MH5421/MH5441 |
| Condition | 100% genuine original Ricoh, manufacturer warranty included |
Ricoh GEN4 vs GEN5 vs GEN6 — What is the Difference?
| Feature | GEN4 (MH2420) | GEN5 (MH5420/5421) | GEN6 (MH5320) |
|---|---|---|---|
| Nozzles | 512 | 1,280 | 1,280 |
| Min drop size | 7 pl | 7 pl | 5 pl |
| Max frequency | 30 kHz | 60 kHz | 50 kHz greyscale |
| Service life | Standard | Standard | 2× GEN5 |
| Best for | Entry UV/solvent | Mid-range UV | High-volume UV |
GEN4, GEN5, and GEN6 are not interchangeable — each requires specific printer board and firmware support. See our Ricoh GEN4 MH2420 and Ricoh GEN5 MH5420 listings if your printer uses an earlier generation. Contact our team if you are unsure which generation your printer requires.
Compatible Printers
This printhead is compatible with the following printers:
Other UV flatbed and UV roll-to-roll printers specifying MH5320 or Ricoh GEN6 compatibility. Contact our technical team with your printer make and model to confirm before ordering.
Cable Length — 447mm vs 145mm
The MH5320 is available in two cable lengths — 145mm and 447mm (this listing). The correct cable length depends entirely on your printer model and the position of the printhead carriage board. Using the wrong cable length will prevent installation. Check your printer's service documentation or contact our team to confirm which length your machine requires before ordering.
Why Buy from Digiprint USA
• 100% genuine original Ricoh GEN6 MH5320 — covered by manufacturer warranty
• Correct 447mm cable version confirmed — total 500mm length
• In stock in Doral, Miami FL — same day shipping before 2PM EST
• Ideal for Latin American UV print shops using Miami freight forwarders
• Free technical support — we confirm GEN4 vs GEN5 vs GEN6 and cable length before you order
View our full range of genuine industrial printheads including Ricoh GEN4, GEN5, and GEN6.
Frequently Asked Questions
What is the difference between Ricoh GEN4, GEN5 and GEN6?
The GEN4 MH2420 has 512 nozzles and supports aqueous, solvent, and UV inks. The GEN5 MH5420 has 1,280 nozzles primarily for UV and solvent. The GEN6 MH5320 also has 1,280 nozzles but with a smaller 5pl minimum drop and more than double the service life of the GEN5. They are not interchangeable and require different printer boards.
Which cable length do I need — 447mm or 145mm?
This depends on your specific printer model and where the carriage board is positioned. The 447mm version (this listing) is used in printers where the carriage board is mounted further from the printhead. Contact our team with your exact printer make and model and we will confirm the correct cable length before you order.
What printers use the Ricoh GEN6 MH5320?
Compatible printers include Hollanders Colorbooster 320, M5000, MC2512RV, and PrintJet HYB2000, SG6, and 2030. Contact our team with your printer make and model to confirm compatibility before ordering.
Does the MH5320 come with a manufacturer warranty?
Yes — every MH5320 we sell is 100% genuine original Ricoh and comes with the manufacturer warranty included. We do not sell refurbished or gray market units.
Do you ship Ricoh GEN6 printheads to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse. Our Miami location is ideal for Latin American UV print shops and resellers using freight forwarders in the Doral area.
