}Roland VS Series DX6 Printhead 4-Cable Set Maintenance Kit
Brand: Roland
Tax excluded. Shipping calculated at checkout
Availability: In stock
%20and%20the%20complete%204-piece%20head%20data%20cable%20set%20(3%C3%97%20Roland%201000006702%20+%201%C3%97%20Roland%20100...
){kind=link}

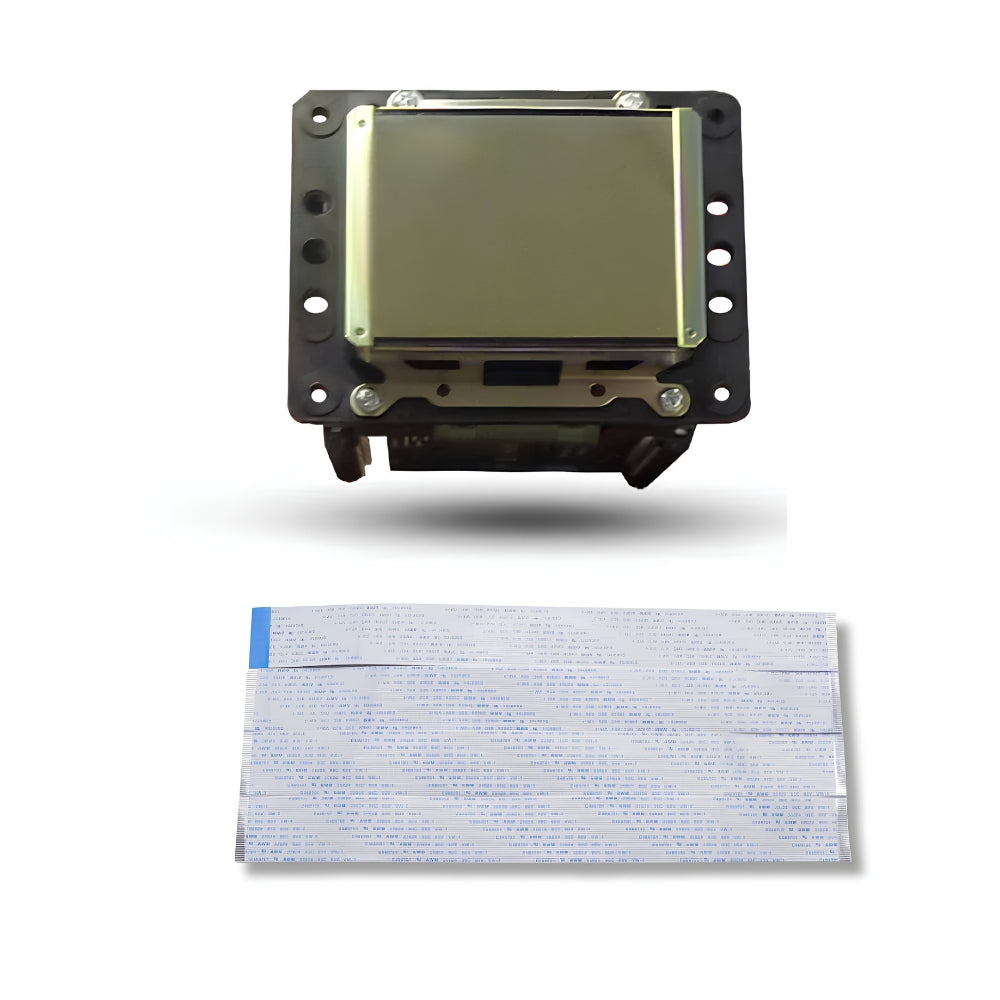

The Roland DX6 Printhead and Cable Kit contains 1 genuine original Roland DX6 printhead (Roland part 6701409010) and the complete 4-piece head data cable set (3× Roland 1000006702 + 1× Roland 1000006703) — every component required for a correct DX6 printhead replacement on Roland VS, RE, RA, RF, XF, XR, BN, EJ, and XT series eco-solvent printers.
What Is Included in the Kit
| Component | Quantity | Specification |
|---|---|---|
| Roland DX6 Printhead | 1 | Genuine original Roland part 6701409010 — 1,440 nozzles, 360 dpi, 8-channel eco-solvent, Epson MicroPiezo |
| Head Data Cable 29-pin (1000006702) | 3 | Roland OEM 1000006702 — 29-pin, 256mm long, 30mm wide, flat flexible cable |
| Head Data Cable 28-pin (1000006703) | 1 | Roland OEM 1000006703 — 28-pin, 276mm long, 30mm wide, flat flexible cable |
Roland DX6 Printhead Technical Specifications
| Specification | Detail |
|---|---|
| Roland part number | 6701409010 (also referenced as 1000006530 in some Roland service manuals) |
| Printhead generation | Epson DX6 — 6th generation MicroPiezo |
| OEM status | 100% genuine original Roland — delivered in original Roland packaging |
| Total nozzles | 1,440 (8 channels × 180 nozzles per channel) |
| Nozzle resolution | 360 dpi native |
| Drop size | Variable — minimum 1.5pl, maximum 21pl |
| Ink channels | 8 independent channels — 4-colour or 8-colour configuration |
| Firing frequency | 8kHz typical |
| Ink compatibility | Eco-solvent, mild solvent (Roland Eco-Sol MAX) |
| Damper type required | DX6 valve dampers (replace at every head installation) |
4-Piece Head Data Cable Specifications
| Roland Part | Pins | Length | Width | Qty in Set |
|---|---|---|---|---|
| 1000006702 | 29-pin | 256mm (25.6cm) | 30mm | 3 cables |
| 1000006703 | 28-pin | 276mm (27.6cm) | 30mm | 1 cable |
Which Roland Printers Is This Kit Compatible With?
This kit is compatible with all Roland and Mutoh eco-solvent printers using the DX6 printhead (6701409010) and the 4-piece 1000006702/1000006703 cable set, including:
Not sure if this kit fits your printer? Contact us — our US-based support team will confirm compatibility before you order.
Why Genuine Roland OEM — Not Compatible or Refurbished
The Roland DX6 printhead (6701409010) is sourced by Roland from Epson and shipped in original Roland packaging with Roland part number confirmation. Compatible DX6 heads are manufactured to different nozzle plate coating tolerances — in eco-solvent applications where Roland Eco-Sol MAX ink chemistry is in continuous contact with the nozzle plate, coating degradation from out-of-specification compatible heads accelerates nozzle failure rates significantly. Refurbished DX6 heads have restored nozzle coatings on actuators that have already exceeded their rated actuation cycles — producing early nozzle row dropout within 3–6 months versus the 12–18 month typical service life of a genuine Roland-sourced DX6. Every printhead sold by Digiprint USA is 100% genuine original, delivered in original Roland packaging from authorised distribution.
Why Buy from Digiprint USA
• Complete Roland DX6 service kit — genuine printhead (6701409010) + full 4-piece cable set in one shipment
• 100% genuine original Roland — delivered in original Roland packaging, part number confirmed
• Correct 4-piece cable configuration — 3× 1000006702 (29-pin) + 1× 1000006703 (28-pin) — not guesswork
• In stock in Doral, Miami FL — same day shipping before 2PM EST
• Also stock DX6 valve dampers, capping station (1000004546), and wiper felt (1000006736) — complete Roland service parts
• Ideal for Latin American Roland VS/RE/RA eco-solvent service operations using Miami freight forwarders
Browse our full range of Roland eco-solvent printer spare parts including dampers, capping stations, and wiper components.
View all genuine Roland and Epson DX6 printheads stocked by Digiprint USA.
Frequently Asked Questions
What is included in the Roland DX6 printhead and cable kit?
The kit includes 1 genuine original Roland DX6 printhead (part 6701409010, 1,440 nozzles, 360 dpi, eco-solvent) and the complete 4-piece head data cable set: 3 cables of Roland 1000006702 (29-pin, 256mm) and 1 cable of Roland 1000006703 (28-pin, 276mm). This is the complete set of components required for a correct DX6 printhead installation on VS-640, RE-640, RA-640, and compatible Roland printers.
How many cables does the Roland DX6 printhead require, and what are the correct part numbers?
The Roland DX6 printhead requires exactly 4 data cables — 3 cables of Roland part 1000006702 (29-pin, 256mm long, 30mm wide) and 1 cable of Roland part 1000006703 (28-pin, 276mm long, 30mm wide). The 28-pin and 29-pin cables are not interchangeable — they serve different nozzle row connections on the DX6 head. Both part numbers must be included; a set of 4× 1000006702 alone is incorrect.
What is the difference between Roland DX6 and DX7?
The DX6 (6701409010) and DX7 (FA45002 / L1440-U2) both have 1,440 nozzles at 360 dpi and are based on Epson MicroPiezo technology. The DX7 offers more refined VSDT variable drop technology (4.5–19pl vs 1.5–21pl binary on DX6) and is the newer generation. They are not interchangeable — confirm your printer uses DX6 before ordering. The VS-640, RE-640, and RA-640 use the DX6 (6701409010).
Is part number 1000006530 the same as 6701409010?
Yes — both refer to the same Roland DX6 printhead. 6701409010 is the primary product part number used in Roland's commercial parts catalogue. 1000006530 appears as an alternative reference in some Roland service manuals for the same component. If your service documentation references either number, this listing is the correct replacement printhead.
Do you ship Roland DX6 kits to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse for orders placed before 2PM EST. Digiprint USA is located in Doral — the primary freight forwarder hub for Latin America — making us the closest US supplier to Roland eco-solvent service operations in Colombia, Mexico, Brazil, Peru, Chile, Argentina, and the Caribbean.
