}Spectra Galaxy JA 256/50 AAA Printhead
Brand: Spectra
Tax excluded. Shipping calculated at checkout
Availability: In stock

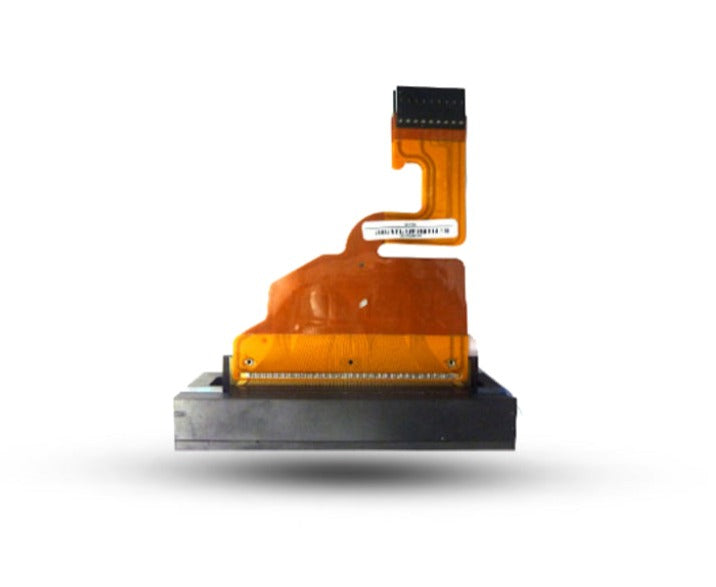

The Spectra Galaxy JA 256/50 AAA is a genuine original Fujifilm Dimatix Spectra piezoelectric jetting assembly — the mid-drop 50 pl variant of the Galaxy JA 256 family, engineered for wide-format UV and solvent printers operating at resolutions up to 600 dpi. With 256 independently addressable nozzles in a single line (4 × 64 piezoelectric slices), a calibrated 50 pl drop (adjustable 45–55 pl), 254 micron nozzle spacing, 36 micron nozzle diameter, and top-mounted fluid and electrical interfaces for flexible carriage mounting — it is compatible with solvent, UV-curable, and water-based inks operating at up to 90°C. Used in VUTEk PressVu UV 200/600 and 320/400, Agfa Anapurna XL² colour channels, and a range of other UV wide-format systems. Manufactured in the USA to Fujifilm Dimatix Spectra quality standards. Every Galaxy JA 256/50 AAA we sell at Digiprint USA is 100% genuine original Spectra/Dimatix.
Critical VUTEk and Anapurna channel notes — read before ordering.
• VUTEk PressVu UV 320/400 and 200/600: VUTEk part number is AA92037 ASM. This head does NOT include VUTEk's metallic base — reuse the base from your old head. Jetpack build service (PPHVU13771) and JIG alignment tool (PMEDI8100) are available separately.
• VUTEk PressVu UV 200/600 white ink channel: This head is for the white ink position. For colour channels on the PressVu 200/600, use the Galaxy JA 256/30 AAA instead.
• Agfa Anapurna XL²: This head covers the colour (CMYK) channels. For the white ink channel on the Anapurna XL², use the Galaxy JA 256/80 AAA instead.
Contact our team to confirm your printer model, channel position, and which accessories you need before ordering.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Spectra Galaxy JA 256/50 AAA |
| VUTEk part number | AA92037 ASM (for PressVu UV 320/400 and 200/600) |
| Manufacturer | Fujifilm Dimatix Spectra — manufactured in USA |
| Technology | Piezoelectric drop-on-demand — 4 independent slices |
| Total nozzles | 256 (4 × 64 channels) — single line |
| Nozzle spacing | 254 microns (0.010 inch) |
| Nozzle diameter | 36 microns |
| Max resolution | 600 dpi |
| Calibrated drop size | 50 pl |
| Adjustable drop range | 45 – 55 pl |
| Firing frequency | Up to 20 kHz |
| Ink compatibility | Solvent, UV-curable, water-based |
| Operating temperature | Up to 90°C |
| Fluid interface | Top-mounted — multiple mounting configurations possible |
| Jetting control | Serial-to-parallel converters — all jets simultaneously or individually |
| Metallic base (VUTEk) | NOT included — reuse base from old head |
| Country of origin | USA (Fujifilm Dimatix Spectra) |
| Condition | 100% genuine original Spectra/Dimatix, brand new |
Galaxy JA 256 Series — Channel Assignment by Printer
| Printer | Colour Channels | White Channel |
|---|---|---|
| VUTEk PressVu UV 200/600 | Galaxy JA 256/30 AAA | Galaxy JA 256/50 AAA (this listing) |
| VUTEk PressVu UV 320/400 | Galaxy JA 256/50 AAA (this listing) — VUTEk p/n AA92037 ASM | |
| Agfa Anapurna XL² | Galaxy JA 256/50 AAA (this listing) | Galaxy JA 256/80 AAA |
Compatible Printers
Contact our team with your printer model, serial number, and channel position to confirm Galaxy JA 256/50 AAA compatibility and required accessories before ordering.
Warranty Notice
Due to the sensitive nature of industrial printhead components, we cannot accept returns, exchanges, or refunds once the printhead has been installed. All sales are final. Always confirm your printer model, channel position, and VUTEk base/accessory requirements before ordering.
Why Buy from Digiprint USA
• 100% genuine original Fujifilm Dimatix Spectra Galaxy JA 256/50 AAA — VUTEk AA92037 ASM equivalent, USA manufactured
• Channel assignment table — VUTEk PressVu 200/600, 320/400, and Agfa Anapurna XL² channel-by-channel breakdown so you order the right head for the right position
• VUTEk metallic base clearly noted as NOT included — prevents the most common VUTEk Galaxy installation surprise
• Jetpack build service (PPHVU13771) and JIG tool (PMEDI8100) availability noted — we advise on accessories before you order
• Full spec coverage — 50pl calibrated, 45–55pl adjustable, 20kHz, 254µm spacing, 36µm nozzle diameter, 90°C — most complete Galaxy JA 256/50 listing in the market
• In stock in Doral, Miami FL — same day shipping before 2PM EST
• Ideal for Latin American VUTEk, Agfa, and UV wide-format shops using Miami freight forwarders
• Free technical support — we confirm channel position, VUTEk part number, base reuse, and accessories before you order
View our full range of genuine Spectra Galaxy printheads, including the Galaxy JA 256/80 AAA for white ink channels.
Frequently Asked Questions
Why does the VUTEk PressVu UV 200/600 use different Galaxy heads for colour vs white channels?
The VUTEk PressVu UV 200/600 uses the Galaxy JA 256/30 AAA (30 pl calibrated) for its CMYK colour channels, where a smaller drop produces finer colour accuracy and smoother gradations. The white ink channel uses this Galaxy JA 256/50 AAA (50 pl calibrated) because white ink requires a larger drop volume for sufficient opacity and coverage — you need more ink per dot to produce a truly opaque white layer. Using the wrong head for either channel will result in incorrect opacity (white), poor colour accuracy and gradation (colour), or outright head incompatibility. Always confirm your channel position before ordering.
What is the VUTEk metallic base — and why is it not included?
On VUTEk PressVu UV printers, the Galaxy JA 256/50 printhead mounts into a proprietary metallic base bracket (VUTEk part number AA92037 ASM refers to the complete head-and-base assembly). When ordering a replacement head, the metallic base from your existing failed head is typically reusable — it is a mechanical mounting component that does not wear out with the head. The Galaxy JA 256/50 AAA ships as the printhead only. To build the complete VUTEk-compatible assembly, you need a Jetpack build service (PPHVU13771) and a JIG alignment tool (PMEDI8100). Contact our team to confirm which accessories you need for your specific VUTEk model before ordering.
How does the Galaxy JA 256/50 AAA differ from the Galaxy JA 256/80 AAA?
Both are 256-nozzle, 254 micron spacing, 20 kHz, 450–600 dpi Spectra Galaxy heads with the same 4 × 64 piezoelectric slice architecture and top-mounted interfaces. The key difference is drop size: the JA 256/50 has a 50 pl calibrated drop (45–55 pl adjustable range) and reaches 600 dpi maximum resolution, while the JA 256/80 has an 80 pl calibrated drop (75–85 pl range) and is limited to 450 dpi. The 50 pl head is for colour channels requiring finer image quality; the 80 pl head is for white ink channels requiring higher ink coverage and opacity. On the Agfa Anapurna XL², these two heads serve different channel positions and are not interchangeable.
Do you ship the Spectra Galaxy JA 256/50 AAA to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse before 2PM EST. Our Miami location is ideal for Latin American VUTEk PressVu, Agfa Anapurna, and UV wide-format production shops using freight forwarders in the Doral area.
