}VUTEk ASM Jetpack GEN 2 7PL GS/GSR Grey Uncoa - 45134373
Brand: EFI Vutek
Tax excluded. Shipping calculated at checkout
Availability: In stock

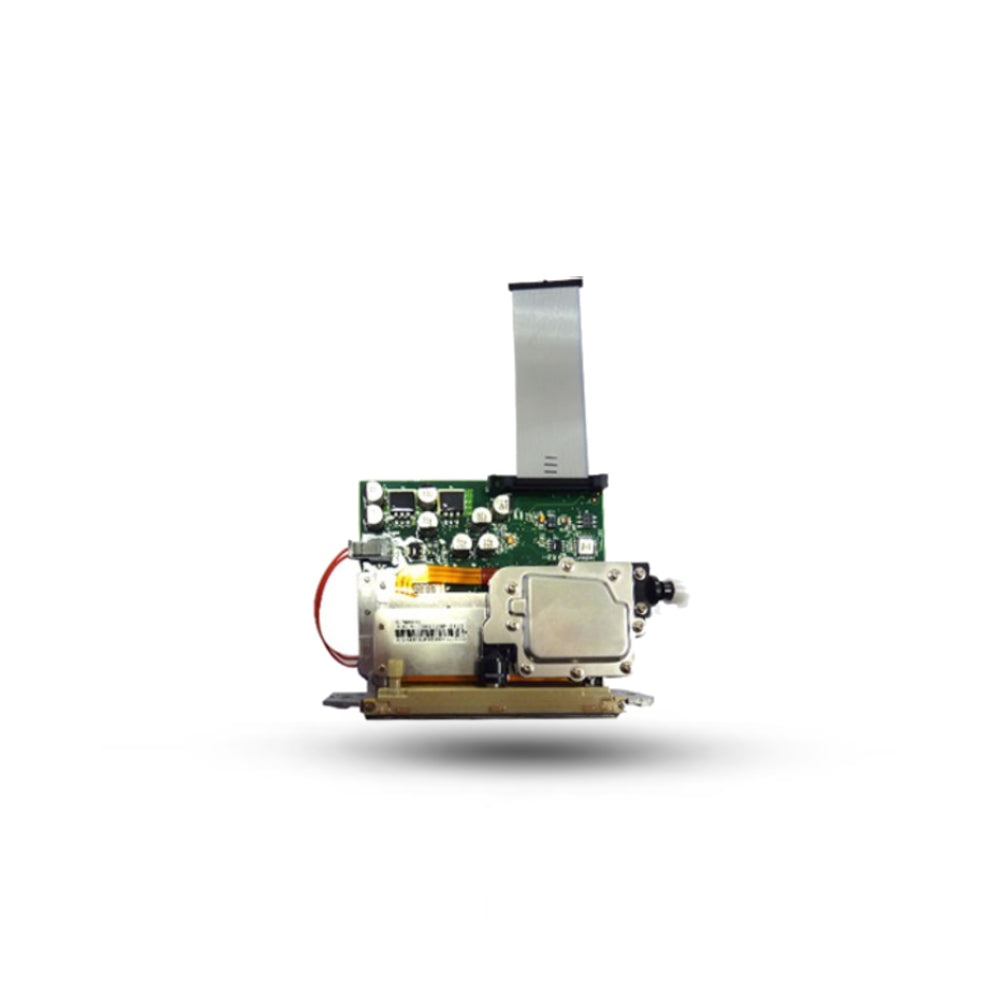

The EFI VUTEk Jetpack 45134373 is the genuine original GEN 2 UV printhead assembly for VUTEk GS-LX UltraDrop, GS-LXr Pro UltraDrop, and H2000 UltraDrop printers. With a 7 pl drop size, 7 greyscale levels, 508 nozzles, and 18 kHz firing frequency, it delivers the fine-detail UV output demanded by UltraDrop-series production systems. The complete assembly includes the heating element, smoothing electronic board, and integrated quick dry-break damper. Every 45134373 we sell at Digiprint USA is 100% genuine original EFI VUTEk.
Critical: GEN 2 (7pl) vs GS3 (12pl) — not interchangeable. This 45134373 GEN 2 Jetpack is specifically for VUTEk UltraDrop printers. Standard GS-series printers (GS2000, GS3250 non-LX, QS2/QS3 Pro) use the GS3 Jetpack (45140477, 12pl). Installing the wrong generation will result in head incompatibility. Always confirm your printer model suffix (UltraDrop vs standard) before ordering.
Technical Specifications
| Specification | Detail |
|---|---|
| EFI VUTEk part number | 45134373 |
| Assembly designation | Jetpack GEN 2 Grey — second-generation UV assembly |
| Nozzles | 508 |
| Drop size | 7 pl |
| Greyscale levels | 7 levels |
| Firing frequency | 18 kHz |
| Active print width | 72 mm |
| Nozzle plate | Uncoated (UNCOA designation) |
| Damper | Integrated — quick dry-break connector |
| Ink compatibility | UV-curable inks |
| Connector | Latest integrated connector version |
| Included in assembly | Heating element, smoothing electronic board, integrated damper |
| Country of manufacture | USA |
| Condition | 100% genuine original EFI VUTEk, brand new |
GEN 2 (45134373) vs GS3 (45140477) — Which Jetpack Do You Need?
| Spec | GEN 2 — 45134373 (this listing) | GS3 — 45140477 |
|---|---|---|
| Drop size | 7 pl | 12 pl |
| For printer series | GS-LX UltraDrop, H2000 UltraDrop | Standard GS2000, GS3250, QS2/QS3 Pro |
| Greyscale | 7 levels | 7 levels |
| Nozzles | 508 | 508 |
| Interchangeable? | No — not interchangeable. Confirm printer suffix before ordering. | |
What Is a VUTEk Jetpack?
EFI VUTEk Jetpacks are complete self-contained UV printhead assemblies that include the printhead, heating element (for UV ink viscosity control), smoothing electronic board (for greyscale signal processing), and integrated quick dry-break damper. Unlike standard inkjet printheads that install as bare heads, a Jetpack swap replaces the entire UV jetting assembly in a single operation — no separate heating or electronics components required.
Compatible Printers
This GEN 2 Jetpack is compatible with the following EFI VUTEk UltraDrop printers:
Contact our team with your VUTEk printer model and serial number to confirm 45134373 Jetpack compatibility before ordering. Always confirm the "UltraDrop" designation in your printer model before ordering.
Warranty Notice
Due to the sensitive nature of UV printhead components, we cannot accept returns, exchanges, or refunds once the Jetpack has been installed. All sales are final. Contact our team to confirm compatibility before ordering.
Why Buy from Digiprint USA
• 100% genuine original EFI VUTEk 45134373 — not compatible, not refurbished
• GEN 2 7pl assembly — correct for UltraDrop printers, not interchangeable with GS3 12pl
• Complete assembly — heating element, smoothing board, and integrated damper included
• In stock in Doral, Miami FL — same day shipping before 2PM EST
• Ideal for Latin American VUTEk UltraDrop production houses using Miami freight forwarders
• Free technical support — we confirm GEN 2 vs GS3 Jetpack and UltraDrop compatibility before you order
View our full range of genuine EFI VUTEk Jetpack assemblies including the GS3 Jetpack 45140477 (12pl) for standard GS-series printers.
Frequently Asked Questions
What is the difference between the GEN 2 (45134373) and GS3 (45140477) Jetpack?
The GEN 2 45134373 is the 7pl assembly for VUTEk UltraDrop printers (GS-LX UltraDrop, GS-LXr Pro UltraDrop, H2000 UltraDrop). The GS3 45140477 is the 12pl assembly for standard GS-series printers (GS2000, GS3200, GS3250, QS2/QS3 Pro). They are not interchangeable. If your printer has "UltraDrop" in its name, you need 45134373. If it does not, you likely need 45140477.
What does "GEN 2" mean on the 45134373 Jetpack?
GEN 2 refers to the second-generation Jetpack design for UltraDrop VUTEk printers. The UltraDrop platform uses a finer 7pl drop (vs 12pl for standard GS printers) to achieve higher quality output on GS-LX and H2000 systems. The GEN 2 designation indicates the current production version with the upgraded integrated connector.
What does "UNCOA" mean on the 45134373?
UNCOA stands for Uncoated — referring to the nozzle plate surface specification. This is the standard configuration for VUTEk UltraDrop Jetpacks.
Do you ship EFI VUTEk Jetpacks to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse. Our Miami location is ideal for Latin American VUTEk production houses using freight forwarders in the Doral area.
