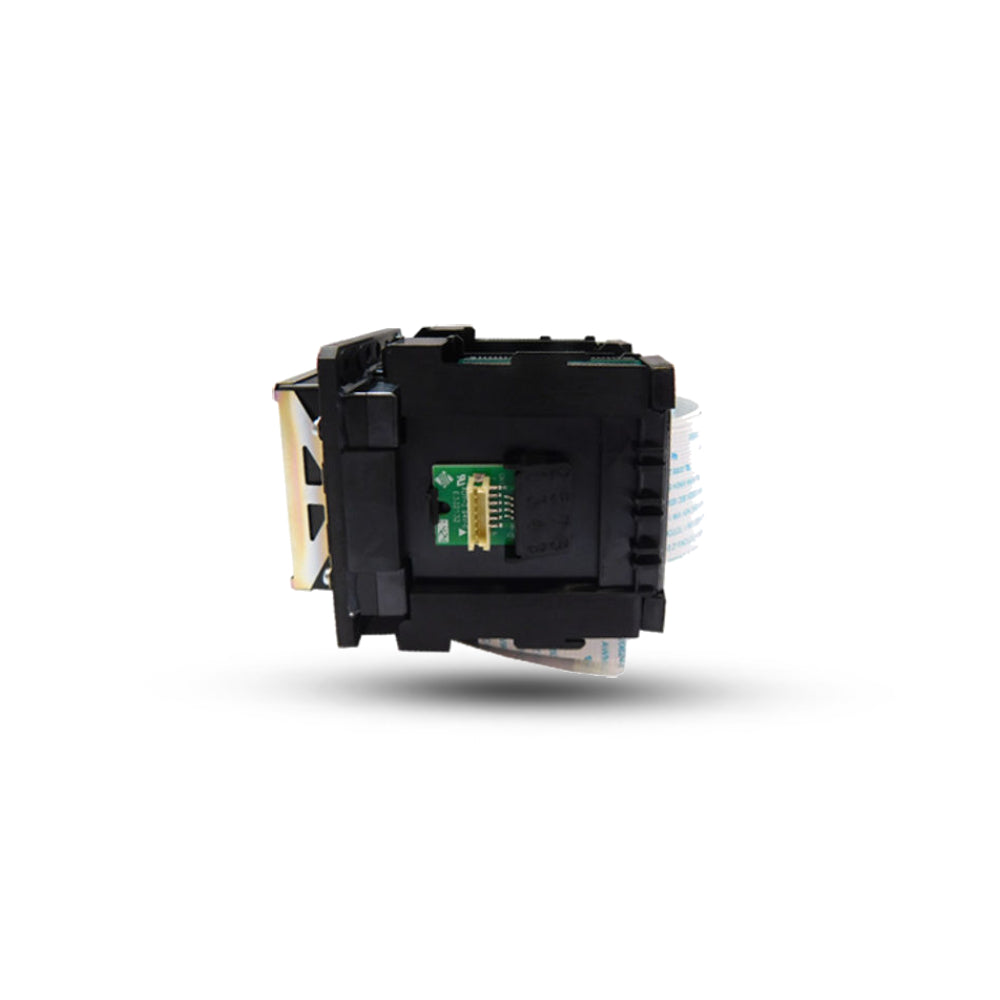

}CJV300 5540 Head Assy - M015372
Brand: Mimaki
Tax excluded. Shipping calculated at checkout
Availability: In stock
%20is%20the%20genuine%20original%20Epson%20DX7-based%20printhead%20for%20the%20Mimaki%20CJV300,%20JV300,%20CJV150,%20and%20JV150%20eco-solvent%20printer%20series.%20M015372%20replaces%20the%20previous%20M015...
){kind=link}
The Mimaki M015372 (5540 Head Assy) is the genuine original Epson DX7-based printhead for the Mimaki CJV300, JV300, CJV150, and JV150 eco-solvent printer series. M015372 replaces the previous M015307 and ships as a complete assembly including connection cables (354mm × 30mm) and the Head Memory Board. Every M015372 we sell at Digiprint USA is 100% genuine original Mimaki Japan.
Technical Specifications
| Specification | Detail |
|---|---|
| Mimaki part number | M015372 (replaces M015307) |
| Head designation | 5540 Head Assembly |
| Printhead platform | Epson DX7 MicroPiezo |
| Nozzle configuration | 8 lines × 180 nozzles = 1,440 total nozzles |
| Native resolution | 1440 dpi |
| Min. drop size | 1.5 pl |
| Max. drop size | 21 pl |
| Firing frequency | 8 kHz |
| Cable dimensions | 354mm long × 30mm wide |
| Supplied with | Connection cables and Head Memory Board |
| Damper required | DX6 Valve Dampers — replace at same time as head |
| Ink compatibility | Eco-solvent and mild solvent inks |
| Condition | 100% genuine original Mimaki, brand new |
Part Number Cross-Reference
| Part Number | Status | Notes |
|---|---|---|
| M015307 | Superseded | Previous part number — no longer available |
| M015372 | Current — this listing | Direct replacement for M015307 — includes cables and memory board |
M015372 vs M007947 — CJV300/JV300 vs JV33/JV5
| Spec | M015372 (this listing) | M007947 |
|---|---|---|
| For printer series | CJV300, JV300, CJV150, JV150 | CJV30, JV33, JV5, TPC-1000, TS3-1600 |
| Platform | Epson DX7 | Epson DX5 |
| Nozzles / resolution | 1,440 / 1440 dpi | 1,440 / 1440 dpi |
| Interchangeable? | No — different Mimaki printer series, different physical assembly | |
The M015372 is for the newer CJV300/JV300 and CJV150/JV150 series. The M007947 is for the older JV33/JV5 and CJV30 series. Both are Mimaki-certified Epson-platform heads but they are not interchangeable. Always match the part number to your specific Mimaki series.
Compatible Printers
This printhead is compatible with the following printers:
Contact our team with your Mimaki printer serial number to confirm M015372 compatibility before ordering.
Recommended — Replace Dampers at the Same Time
The M015372 requires DX6 Valve Dampers. Always replace the dampers when fitting a new printhead — worn dampers cause air ingestion and inconsistent ink flow, reducing the life of the new head. Contact our team for compatible DX6 Valve Dampers for your CJV300 or JV300 model.
Why Buy from Digiprint USA
• 100% genuine original Mimaki M015372 — complete assembly with cables and Head Memory Board
• Direct replacement for discontinued M015307
• In stock in Doral, Miami FL — same day shipping before 2PM EST
• Ideal for Latin American Mimaki CJV/JV print shops using Miami freight forwarders
• Free technical support — we confirm M015372 compatibility and correct DX6 damper set before you order
View our full range of genuine Mimaki printheads and spare parts stocked by Digiprint USA.
Frequently Asked Questions
What does M015372 replace?
M015372 directly replaces M015307 — the previous Mimaki part number for the 5540 Head Assembly. If your service manual or previous invoice shows M015307, M015372 is the correct current replacement.
Does M015372 include cables and a memory board?
Yes — M015372 ships as a complete assembly including connection cables (354mm × 30mm) and the Head Memory Board. This distinguishes it from bare head assemblies that require separate cable and board purchase.
What dampers does the M015372 require?
The M015372 requires DX6 Valve Dampers. Always replace dampers at the same time as the printhead. Contact our team for the correct DX6 damper set for your specific CJV300, JV300, CJV150, or JV150 model.
What is the difference between M015372 and M007947?
The M015372 is for the Mimaki CJV300, JV300, CJV150, and JV150 series (based on Epson DX7 platform). The M007947 is for the older CJV30, JV33, and JV5 series (Epson DX5 platform). Both are genuine Mimaki heads but not interchangeable — always confirm your printer series before ordering.
Do you ship Mimaki CJV300 printheads to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse. Our Miami location is ideal for Latin American Mimaki print shops using freight forwarders in the Doral area.
