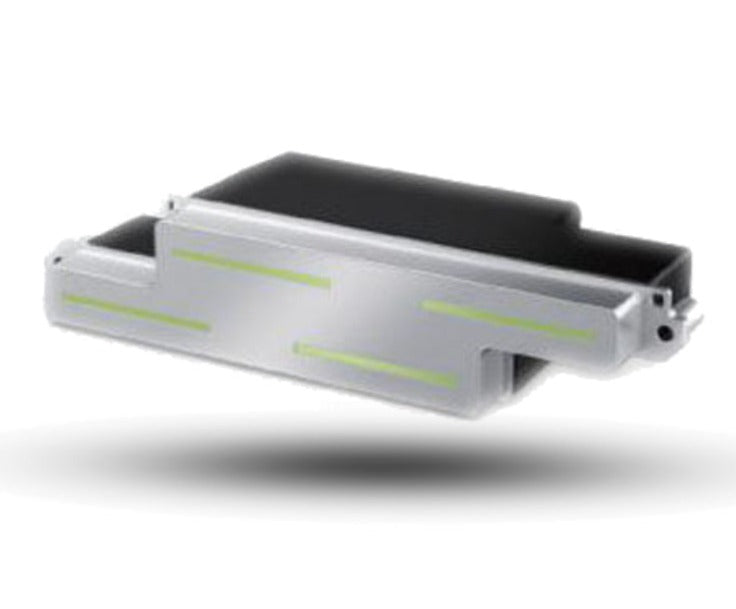

Epson S3200-A1 PrecisionCore Printhead

The Epson S3200-A1 is a genuine original PrecisionCore industrial inkjet printhead delivering 3,200 nozzles across a 120.2mm (4.73") print width at 600 dpi native resolution — the standard aqueous variant of Epson's S3200 series, designed for high-speed close-gap printing with water-based inks. Built on four PrecisionCore MicroTFP (Thin Film Piezo) chips arranged in an S-shaped stagger configuration (2 rows of 2 chips), each chip producing drop volumes from 1.5 to 32.5 pl at up to 50 kHz, with a system operating frequency of 24 kHz. VSDT (Variable Sized Droplet Technology) enables freely variable drop volume for smooth gradation and crisp detail in the same pass. Integrated ink recirculation prevents nozzle clogging during idle periods. High-precision positioning hole enables fast head swap without re-alignment. Head cable replacement is strongly recommended at installation. Every S3200-A1 we sell at Digiprint USA is 100% genuine original Epson — unlocked, authorized OEM.

Technical Specifications

Specification	Detail
Model	Epson S3200-A1
Series	S3200 — standard aqueous / close-gap variant
Technology	PrecisionCore MicroTFP (Thin Film Piezo) — MEMS manufacturing

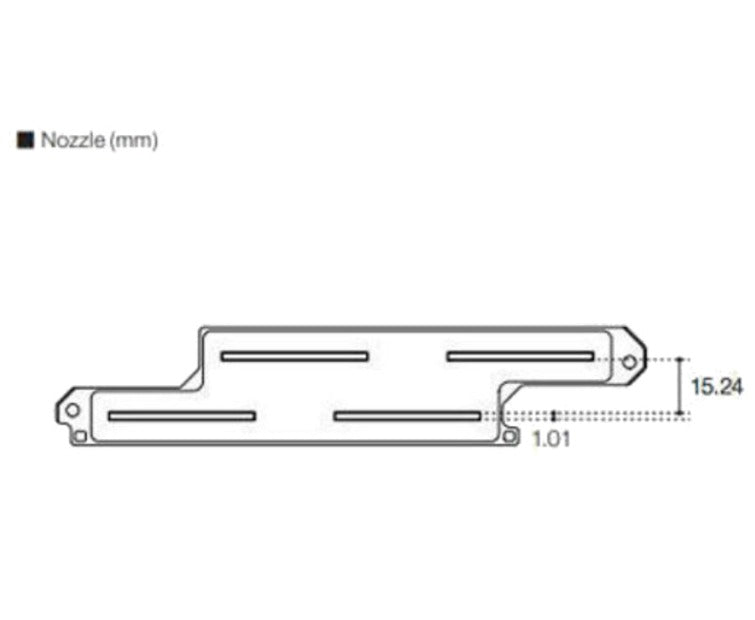

Chip configuration	4 × PrecisionCore chips — 2 rows of 2, S-shape stagger
Total nozzles	3,200 (8 rows × 400 nozzles)
Native resolution	600 dpi
Print width	120.2 mm (4.73 inches)
Color channels	2 channels per head
Drop technology	VSDT — Variable Sized Droplet Technology, freely variable per nozzle per firing
Drop volume range	1.5 – 32.5 pl
Chip frequency	Up to 50 kHz per chip
System frequency	24 kHz
Ink type	Aqueous (water-based) only
Ink recirculation	Built-in — prevents nozzle clogging during idle periods
Positioning	High-precision reference hole — fast replacement without re-alignment
Head design	S-shape — scalable for multi-head arrays, space-saving configuration
Head cable	Replacement strongly recommended at installation
Head type	Unlocked — genuine Epson authorized OEM printhead
Country of origin	Japan
Condition	100% genuine original Epson, brand new

S3200 Series — A1 vs A3 vs U1: Which Do You Need?

Variant	Ink Type	Drop Size	Best For
S3200-A1 (this listing)	Aqueous	Standard — 1.5–32.5pl	Standard close-gap aqueous — signage, labels, textiles, graphics
S3200-A3	Aqueous	1.4× larger than A1	Large head-to-media gap — corrugated, thick textiles, cardboard
S3200-U1	UV / Oil (eco-solvent)	Standard	UV-curable and oil-based inks — not aqueous

Compatible Printers

The Epson S3200-A1 is confirmed compatible with the following printers:

Contact our team with your printer make and model to confirm S3200-A1 compatibility and whether the A1 or A3 variant is correct for your application before ordering.

Warranty Notice

Due to the sensitive nature of industrial printhead components, we cannot accept returns, exchanges, or refunds once the printhead has been installed. All sales are final. Replace head cables at installation. Contact our team to confirm A1 vs A3 variant before ordering.

Why Buy from Digiprint USA

• 100% genuine original Epson S3200-A1 — authorized OEM, unlocked, manufactured in Japan

• A1 vs A3 variant clearly explained — the most common S3200 buyer confusion, resolved before you order

• Full spec coverage — 4-chip S-shape, 3,200 nozzles, 1.5–32.5pl, 50kHz chip / 24kHz system, VSDT, ink recirculation, 600dpi — the most complete S3200-A1 listing available

• Unlocked head — authorized Epson OEM, not a disassembled 4720 head or decryption-card head

• In stock in Doral, Miami FL — same day shipping before 2PM EST

• Ideal for Latin American Flora F4, TX2000EP, and X3 shops using Miami freight forwarders

• Free technical support — we confirm A1 vs A3, printer model, and cable needs before you order

View our full range of genuine Epson printheads, including the S3200-A3 large-gap variant.

Frequently Asked Questions

What is the difference between S3200-A1 and S3200-A3?
Both are aqueous-only variants of the same Epson S3200 PrecisionCore platform — same 3,200 nozzles, 120.2mm print width, 600 dpi, 24 kHz system frequency, and S-shape chip layout. The key difference is drop size: the S3200-A3 produces drops 1.4 times larger than the A1. The A1 is optimised for standard close-gap aqueous printing — signage, labels, graphics, and normal textile distances. The A3 is designed for applications where the head-to-substrate distance is greater, such as corrugated cardboard and thick fabric printing. They are not interchangeable. Your printer's OEM specification determines which is required — confirm before ordering.

What is the difference between the S3200-A1 and the i3200-A1?
Both are Epson PrecisionCore aqueous printheads but they are positioned differently. The S3200-A1 is the high-end industrial head: 4.73 inches wide (120.2mm), 3,200 nozzles, 2 color channels, S-shape configuration for compact multi-head arrays, drop range 1.5–32.5pl, and higher throughput per head. The i3200-A1 is 1.33 inches wide, 3,200 nozzles in a different configuration, 4 color channels, and positioned as the mid-range industrial head. The S3200 is the premium choice for high-speed, high-output aqueous industrial printing where fewer, wider heads are preferred over more, narrower heads.

Is the S3200-A1 an unlocked head — how is it different from a disassembled 4720 head?
The S3200-A1 is a 100% genuine Epson authorized OEM printhead — designed, manufactured, and sold by Epson specifically for industrial printer integration. It uses industrial-spec waveforms matched to the printer's control board, delivering stable, consistent firing throughout its service life. Disassembled heads (commonly called 4720 heads) are consumer-printer components removed from Epson desktop printers and repurposed with decryption cards — they use consumer waveforms, have shorter service life, and lack the ink recirculation and precision positioning hole of the S3200-A1. Always confirm you are ordering a genuine authorized S3200-A1, not a disassembled substitute.

Do you ship the Epson S3200-A1 to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse before 2PM EST. Our Miami location is ideal for Latin American Flora F4, TX2000EP, and X3 aqueous production shops using freight forwarders in the Doral area.
