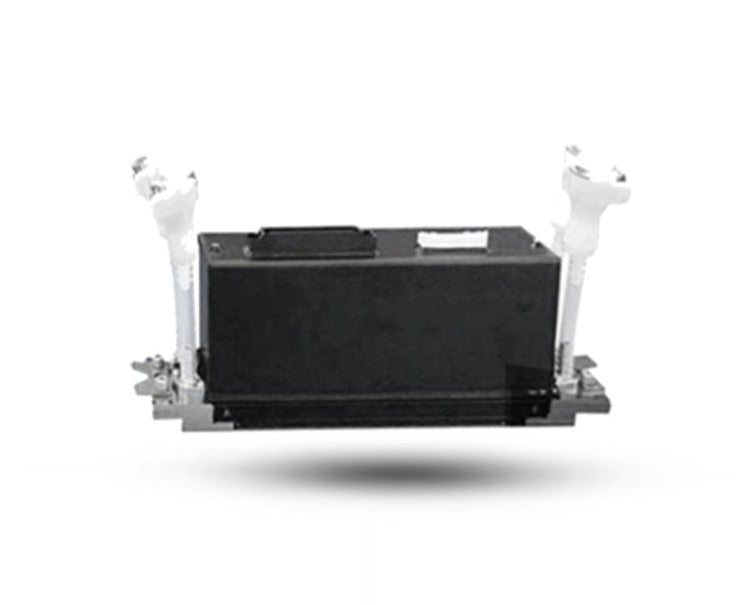

Kyocera Inkjet Printhead KJ4B-0300 - For MS Printers

The Kyocera KJ4B-0300 printhead is engineered for industrial-grade printing with water-based inks, delivering exceptional print quality at high speeds. With 600 dpi native resolution and a drop volume of just 5pl, it ensures sharp, vibrant output even at production-level speeds of 75 m/min.
The printhead features 2,656 nozzles across a 108.25 mm swathe, internal filters to prevent clogging, and a built-in heater to stabilize ink temperature during operation.

This printhead comes in three models to suit various printer platforms:

• 🛠️ Standard (for printers other than MS and EFI Reggiani)

• 🛠️ MS version (includes head cable)

• 🛠️ EFI Reggiani version (includes head cable)

Key Features:

✅ Model: Kyocera KJ4B-0300
✅ Ink Type: Water-based
✅ Native Resolution: 600 dpi
✅ Nozzle Count: 2,656
✅ Print Width: 108.25 mm
✅ Drop Size: 5 picoliters
✅ Max. Drive Frequency: 30kHz
✅ Print Speed: Up to 75 m/min
✅ Pitch Between Nozzles: 0.042 mm
✅ Drop Ejection Rate: 30,000 drops/sec
✅ Internal Heater for temperature stability
✅ Internal Ink Filters for nozzle protection
✅ Country of Origin: Japan

Printer compatibility

Printerevolution T1800
Printerevolution T2600
Printerevolution T3200
FabriVu 340
MS Italy JP4
MS Italy JP6
MS Italy JP7
