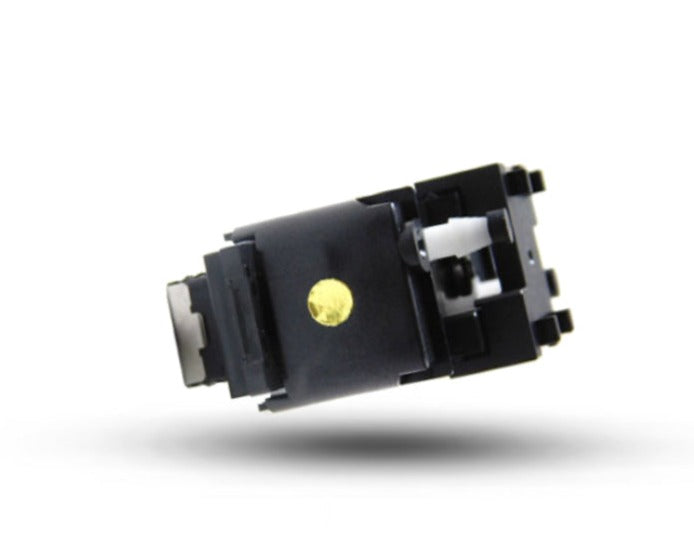

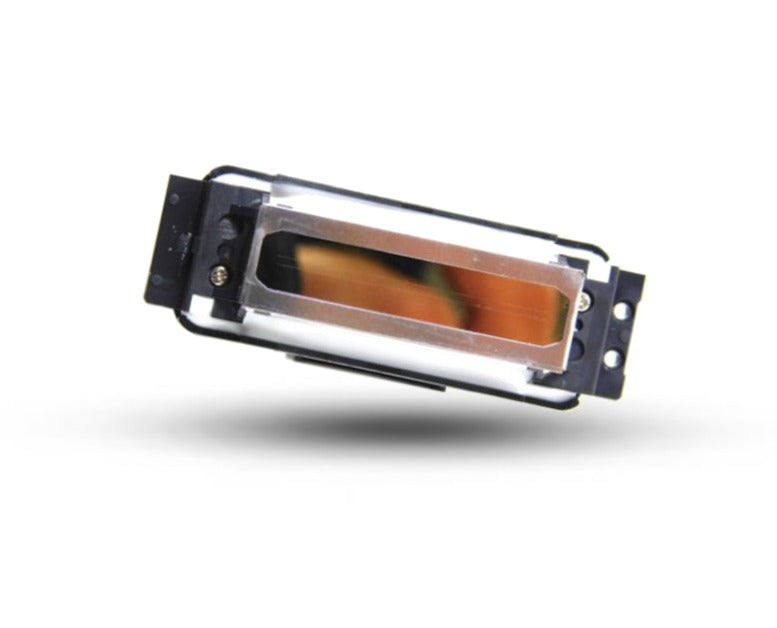

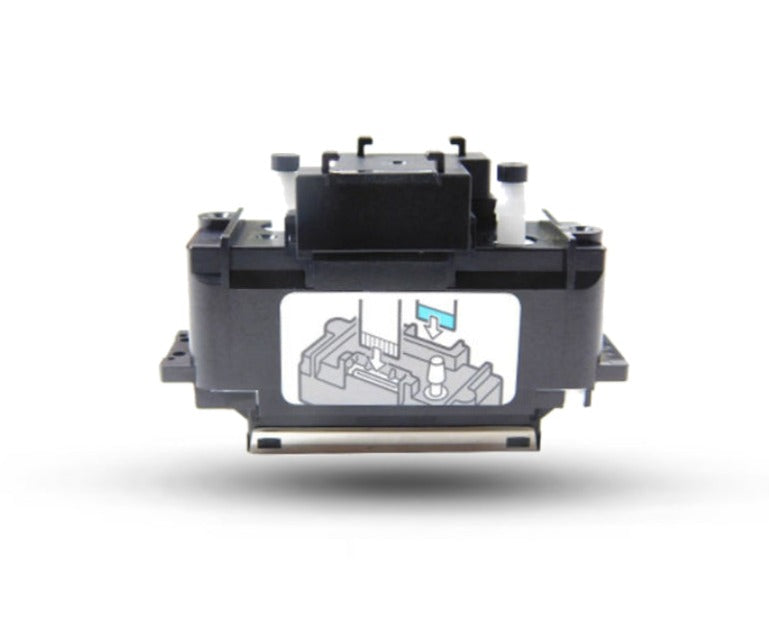

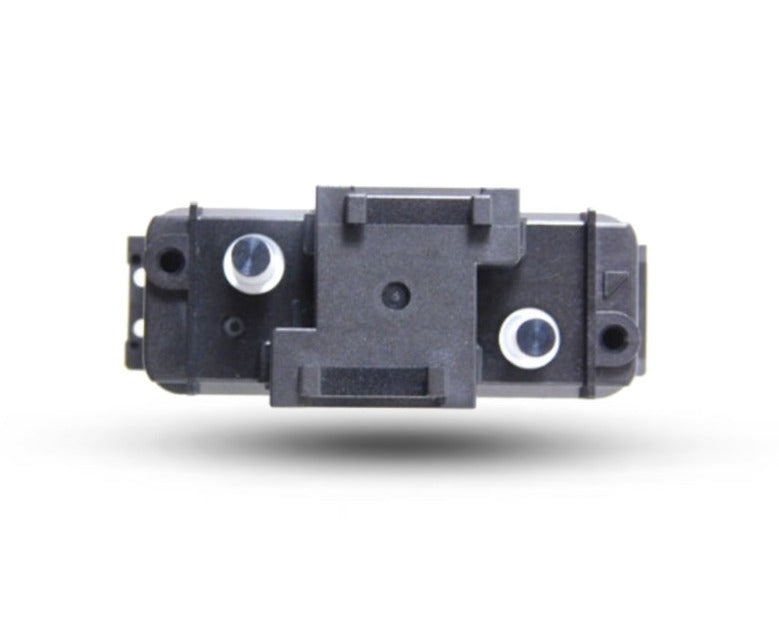

Ricoh GH2220 Printhead

The Ricoh GH2220 Printhead is a compact and high-performance piezo printhead designed for use with aqueous, solvent, and UV inks. Engineered with precision technology, it ensures reliable, high-resolution output for a wide range of small- to mid-format industrial printers. Its compact size and proven performance make it ideal for versatile applications including DTG and signage printing.

Key Features:

✅ Model: Ricoh GH2220 (Original Ricoh Part # GH2220)
✅ Compact Build: 61.8(W) × 40.5(D) × 23.3(H) mm
✅ Nozzles: 384
✅ Nozzle Pitch:
 • Within a row: 0.1693 mm
 • Row to row: 0.931 mm
✅ Drop Volume:
 • Binary mode: 3–5 picoliters
 • Grayscale mode: 21 ± 2 picoliters (depending on ink)
✅ Jetting Frequency:
 • Binary: 30 kHz
 • Grayscale: 24 kHz
✅ Ink Compatibility: Aqueous, Solvent, UV
✅ Durability: Up to 30 billion actuations per nozzle
✅ Firing Method: Piston pusher with metallic diaphragm
✅ Temperature Control: No built-in heater or thermistor

Compatible Printers:

Ricoh

• DTG Ri1000x

• DTG Ri2000

Oric

• TS1519-GH-6H

WER

• RF1808

• R3208

• R1808

• R3T

• RD3T

Winjet

• W2-GH2220

Yuxunda

• SGH0606

• SGH0609

• SGH1013

• SGH2513

Xante

• X32
