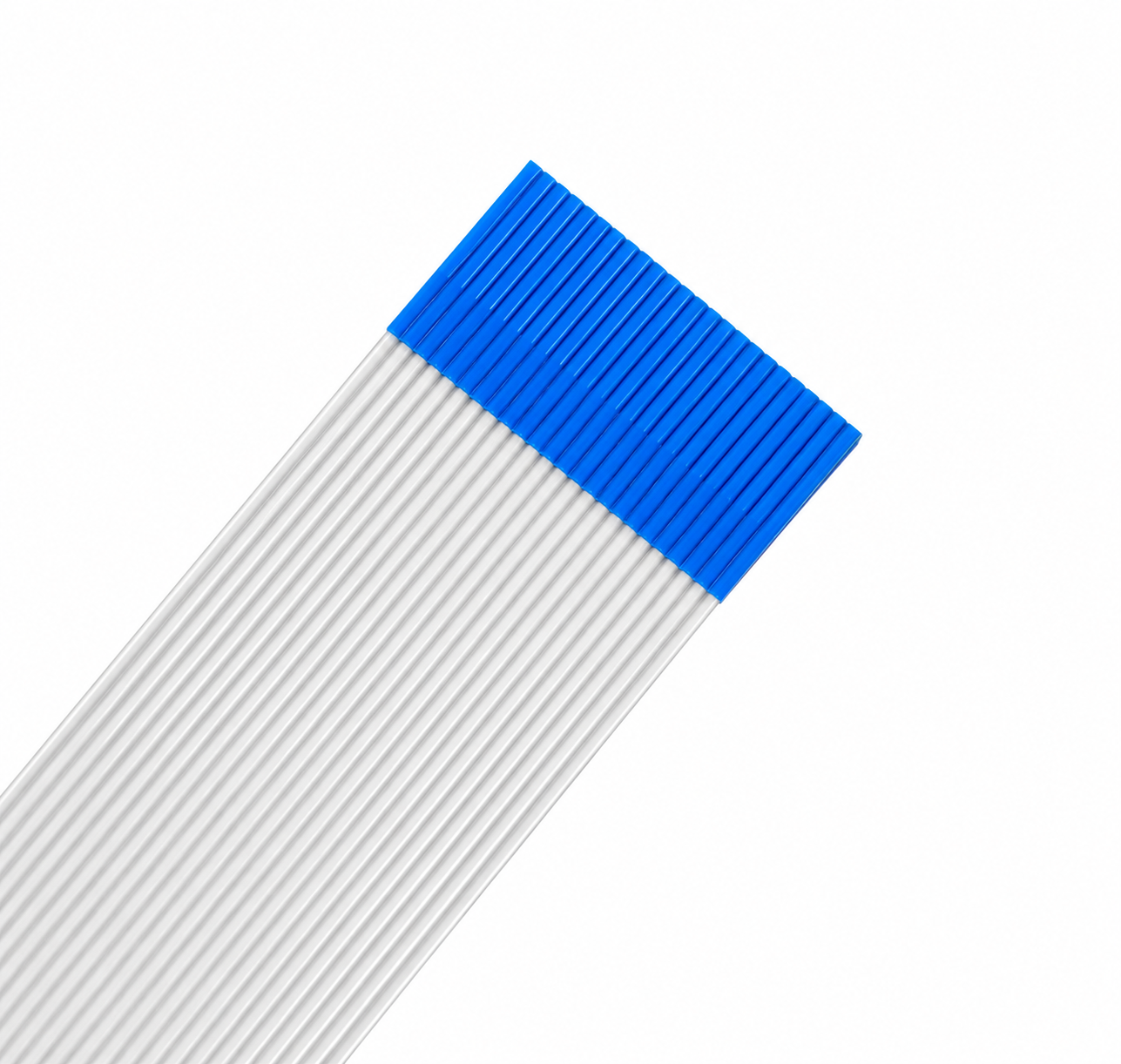

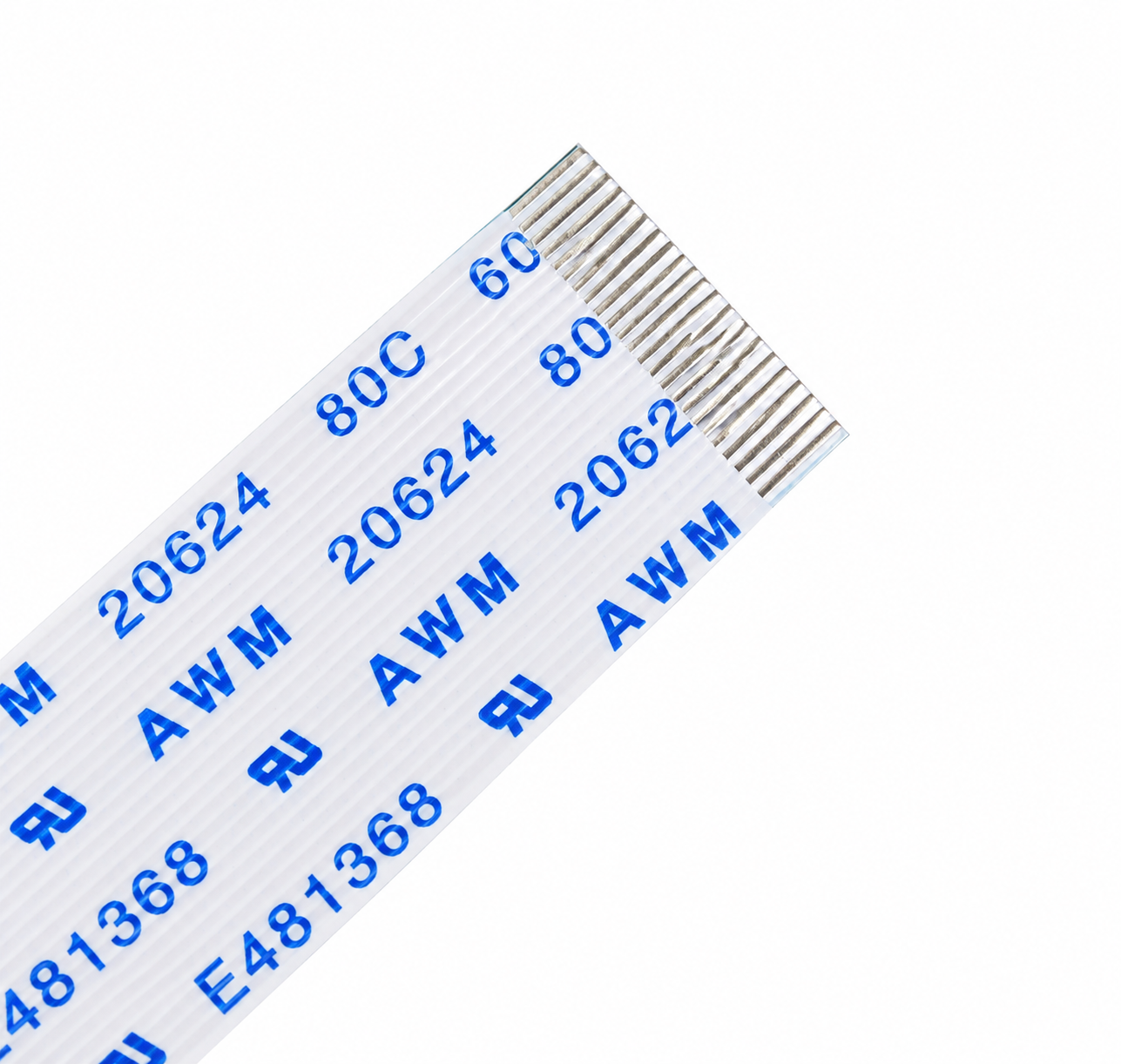

Ricoh GH2220 Printhead Data Cable (550mm, 24-Pin)

The Ricoh GH2220 Head Data Cable (550mm, 24-pin) is a flat flexible cable for industrial inkjet printers using the Ricoh GH2220 printhead — carrying high-speed data signals between the GH2220 printhead and the printer's control board. Compatible with Oric, WER, Winjet, Yuxunda, Xante, and Ricoh DTG printers built on the GH2220 platform. Replace at every GH2220 printhead installation — reusing old cables from a replaced head is a primary cause of premature nozzle failure on a new GH2220.

Cable Specifications

Compatible Printers

This cable is compatible with all printers using the Ricoh GH2220 printhead, including:

Not sure if this cable fits your printer? Contact us — our US-based support team will confirm compatibility before you order.

GH2220 Maintenance Checklist

• Head data cable (this listing) — replace at every printhead installation

• Capping unit — replace at every printhead installation

• Wiper blade — replace with capping unit as a single maintenance event

• GH2220 Printhead — available separately at Digiprint USA

Why Buy from Digiprint USA

• 24-pin, 550mm, silver film FFC — correct specification for the GH2220 platform

• In stock in Doral, Miami FL — same day shipping before 2PM EST

• We also stock the Ricoh GH2220 printhead — contact us to bundle head and cable in one order

• Ideal for Latin American Oric, WER, Winjet, and Yuxunda GH2220 operators using Miami freight forwarders

Browse our full range of Ricoh printer spare parts and cables stocked by Digiprint USA.

View all Ricoh GH2220 printheads and accessories stocked by Digiprint USA.

Frequently Asked Questions

What is the Ricoh GH2220 head data cable?
The GH2220 head data cable is a 24-pin flat flexible cable that connects the Ricoh GH2220 printhead to the printer's control board, transmitting the data signals that drive each nozzle row. It is 550mm long, approximately 13mm wide, silver film reinforced, and uses same-direction connector orientation. Replace at every GH2220 printhead installation.

Why do I need to replace the cable when fitting a new GH2220 printhead?
Flat flexible cables develop invisible micro-fractures in the copper conductor traces from repeated carriage flex cycles. These fractures cause intermittent signal loss producing nozzle dropout and banding identical to a failing printhead. Fitting a new GH2220 on an old cable produces the same symptoms on the new head within days. Always replace the cable simultaneously with the printhead.

Do you ship GH2220 cables to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse. Digiprint USA is the closest US supplier to GH2220-based UV printer operations in Colombia, Mexico, Brazil, Peru, Chile, Argentina, and the Caribbean.
