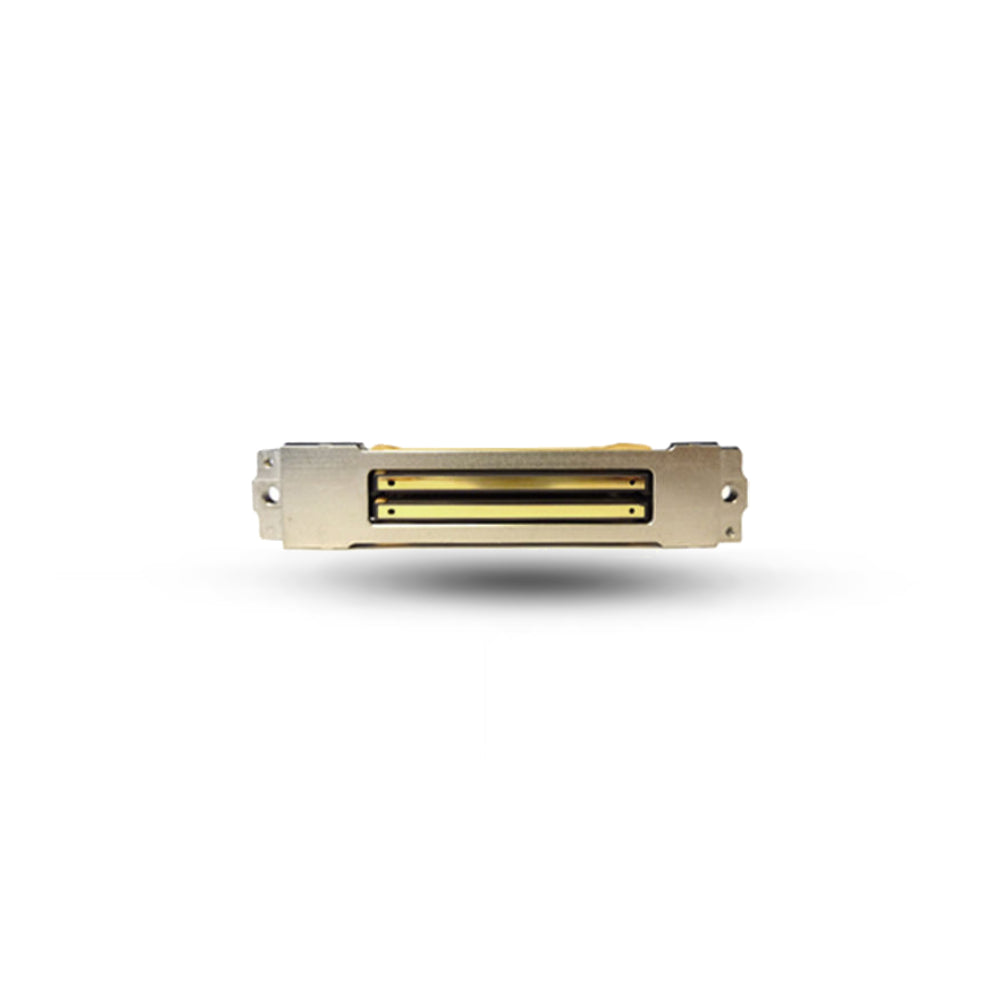

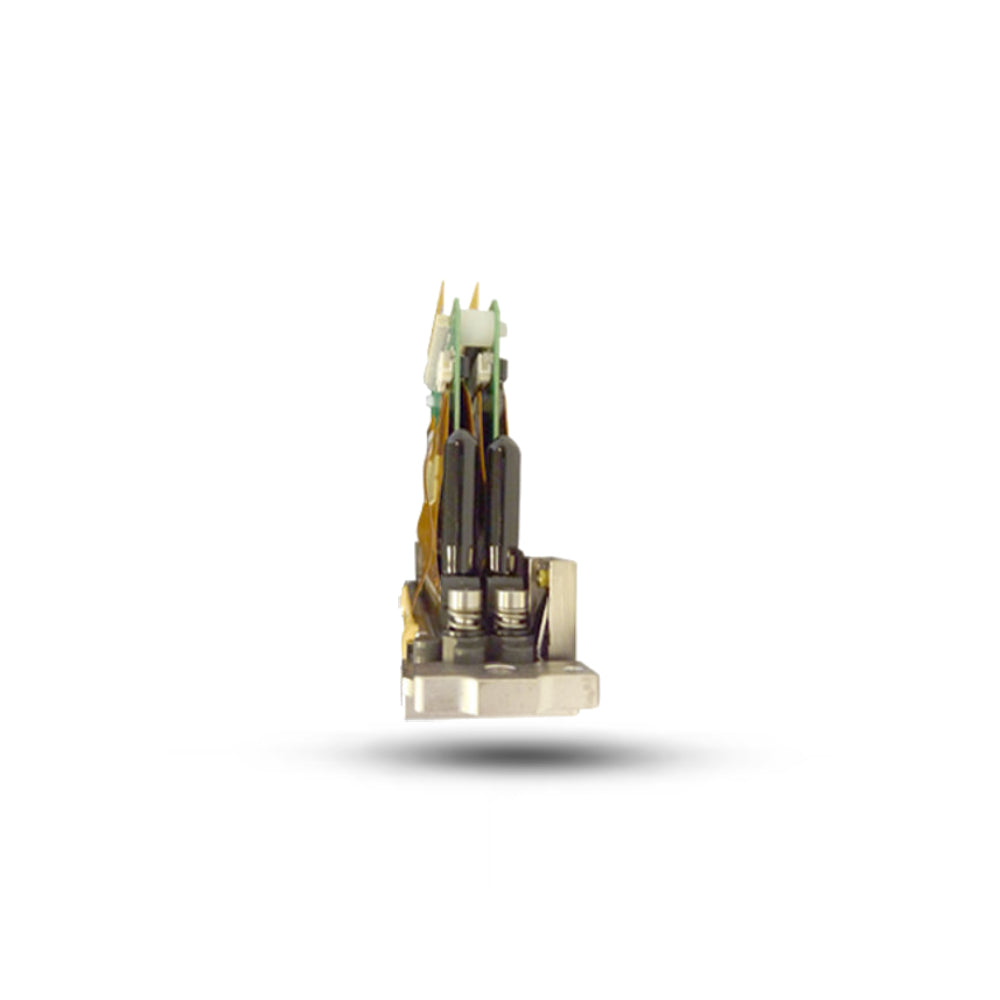

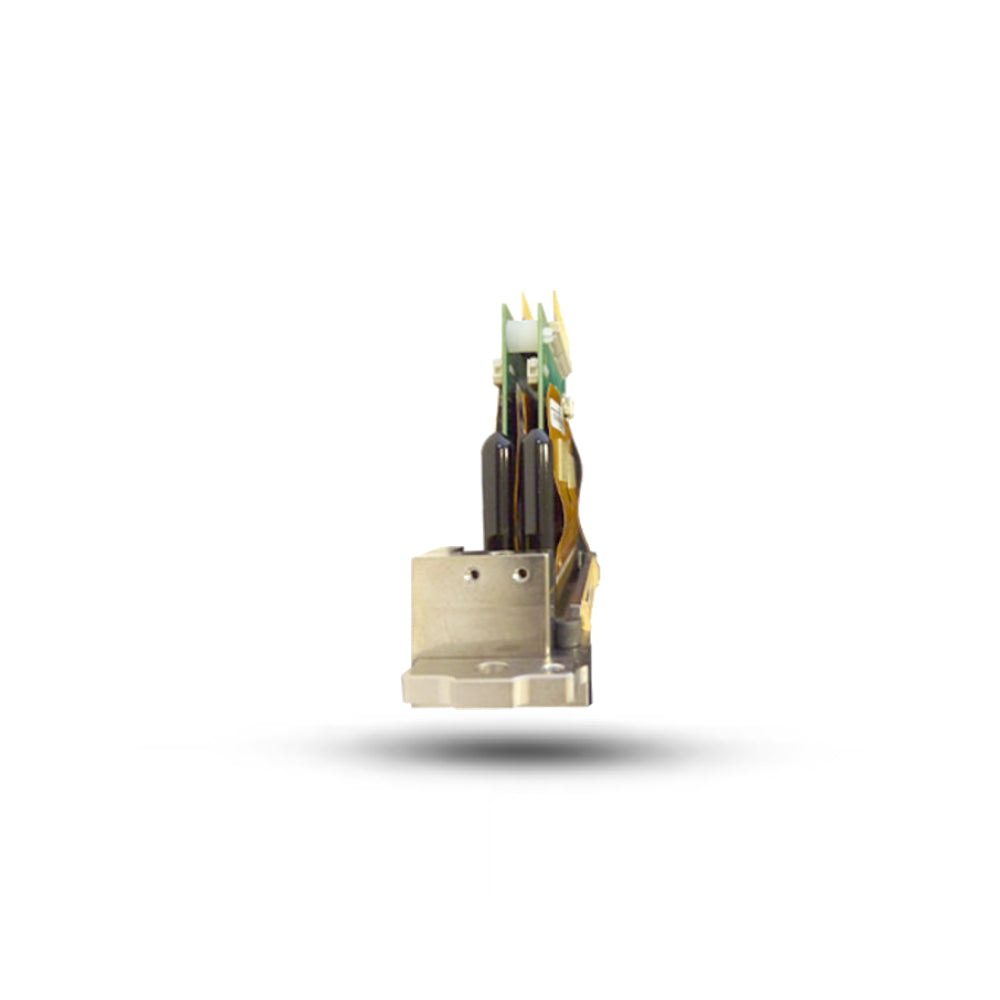

}Spectra Polaris PQ-512/15 AAA Printhead
Brand: Dimatix
Tax excluded. Shipping calculated at checkout
Availability: In stock
The Fujifilm Dimatix Spectra Polaris PQ-512/15 AAA is the fine-drop, highest-resolution variant of the Q-Class Polaris PQ-512 AAA family — delivering up to 1,000 dpi resolution with a 15 pl native drop and VersaDrop adjustable binary jetting up to 30 pl at 40 kHz. With 512 independently addressable nozzles, built-in heaters and temperature sensors, a field-repairable modular design, and compatibility with solvent, UV, and aqueous inks, it is engineered for demanding production environments where print quality is the priority. Every PQ-512/15 AAA we sell at Digiprint USA is 100% genuine original Fujifilm Dimatix Spectra.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Spectra Polaris PQ-512/15 AAA |
| Platform | Q-Class Polaris PQ-512 AAA family |
| Technology | Piezoelectric — VersaDrop binary jetting |
| Total nozzles | 512 independent channels in multiple rows |
| Max resolution | 1,000 dpi (single colour) / 500 dpi (two colour) |
| Nozzle spacing | 127 µm (single colour) / 254 µm (two colour) |
| Calibrated drop size | 15 pl |
| VersaDrop range | 15 – 30 pl (adjustable binary) |
| Drop velocity | 8 m/s (nominal) |
| Max firing frequency | 40 kHz at 15 pl / 20 kHz at 30 pl |
| Operating temperature | Up to 60°C |
| Ink viscosity range | 8 – 20 cP |
| Ink compatibility | UV-curable, solvent, and aqueous-based inks |
| Temperature control | Built-in heaters and temperature sensors |
| Design | Field-repairable — no special tools required |
| Condition | 100% genuine original Fujifilm Dimatix, brand new |
Polaris PQ-512 AAA Family — Which Drop Size Do You Need?
| Model | Drop Range | Max Resolution | Best For |
|---|---|---|---|
| PQ-512/15 AAA (this listing) | 15 – 30 pl | 1,000 dpi | Fine detail, highest resolution UV/solvent output |
| PQ-512/35 AAA | 35 – 80 pl | 800 dpi | Balanced speed and quality |
| PQ-512/85 AAA | 80 – 150 pl | 400 dpi | Heavy-coverage high-throughput production |
The PQ-512/15 is the fine-drop, highest-resolution variant — optimised for image quality over throughput. At 1,000 dpi and 15 pl, it delivers the finest detail achievable in the PQ-512 family. Contact our team to confirm which PQ-512 drop size your OEM system specifies before ordering.
Compatible Printers
This printhead is compatible with the following printers:
Contact our team with your printer make, model, and current head markings to confirm PQ-512/15 AAA compatibility before ordering.
Field-Repairable Design
The Polaris PQ-512 AAA family uses a modular field-repairable architecture with built-in heaters and temperature sensors — components can be replaced on-site without special tools, significantly reducing maintenance downtime in production environments. The design builds directly on the proven reliability of the Spectra Nova and Galaxy platforms.
Warranty Notice
Due to the sensitive nature of industrial printhead components, we cannot accept returns, exchanges, or refunds once the printhead has been installed. All sales are final. Contact our team to confirm compatibility before ordering.
Why Buy from Digiprint USA
• 100% genuine original Fujifilm Dimatix Spectra PQ-512/15 AAA — not compatible, not refurbished
• In stock in Doral, Miami FL — same day shipping before 2PM EST
• Ideal for Latin American UV and specialty industrial print shops using Miami freight forwarders
• Free technical support — we confirm PQ-512/15 vs PQ-512/35 vs PQ-512/85 and correct drop size before you order
View our full range of genuine Fujifilm Dimatix Spectra Polaris printheads including the PQ-512/35 AAA and PQ-512/85 AAA.
Frequently Asked Questions
What resolution can the PQ-512/15 achieve?
The PQ-512/15 AAA achieves up to 1,000 dpi in single-colour operation — the highest resolution in the Polaris PQ-512 AAA family. This is made possible by the 127 µm nozzle spacing at its 15 pl drop size. At two-colour operation, the effective resolution is 500 dpi. The higher the drop size variant (/35 or /85), the lower the achievable resolution.
What is the VersaDrop range on the PQ-512/15?
The PQ-512/15 jets from 15 pl (at 40 kHz) up to 30 pl (at 20 kHz) in adjustable binary mode. This is different from the PQ-512/35 (35–80 pl) and PQ-512/85 (80–150 pl). Always verify which drop size range your OEM system was configured for before ordering.
Is the PQ-512/15 field-repairable?
Yes — all Polaris PQ-512 AAA heads use a modular field-repairable design allowing component replacement on-site without special tools. This reduces total cost of ownership in high-volume production environments compared to sealed industrial heads.
Do you ship Spectra Polaris PQ-512/15 AAA printheads to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse. Our Miami location is ideal for Latin American industrial UV and solvent print shops using freight forwarders in the Doral area.
