}Spectra SM-128 AA Printhead
Brand: Dimatix
Tax excluded. Shipping calculated at checkout
Availability: In stock

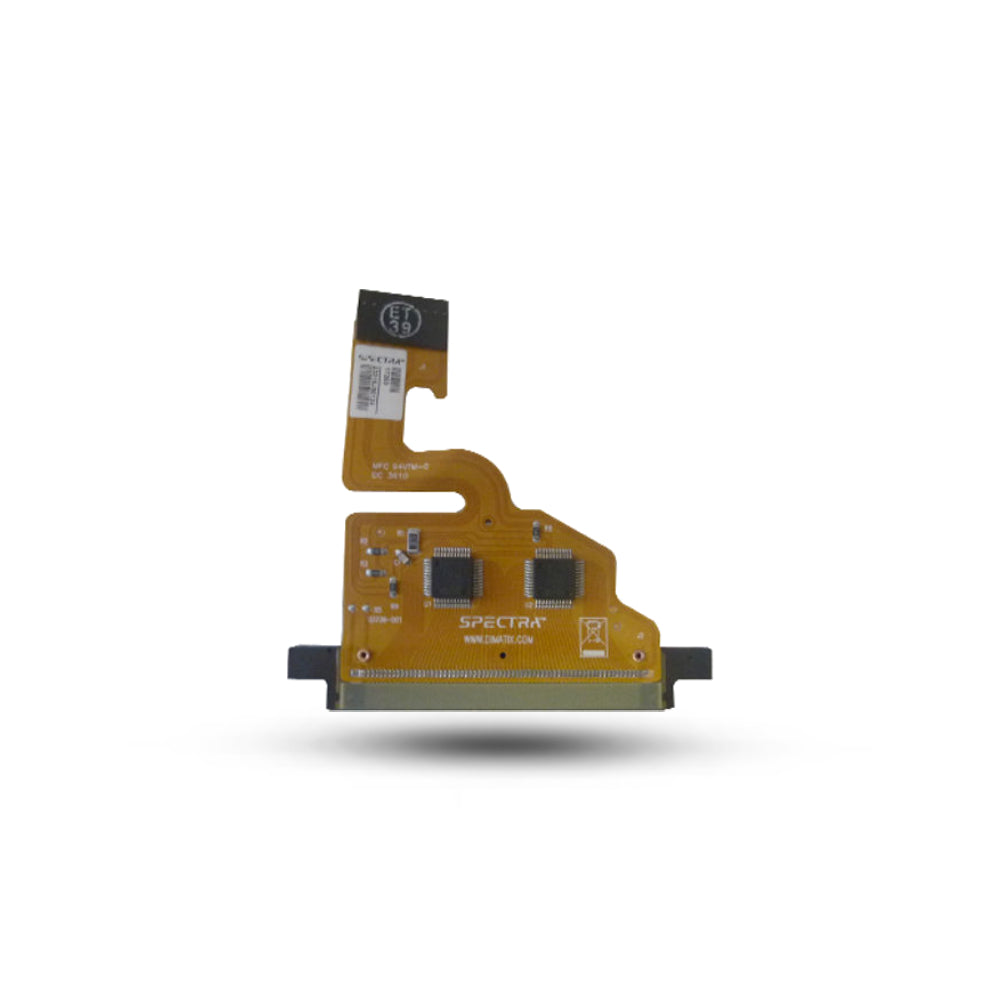

The Fujifilm Dimatix Spectra SM-128 AA is a genuine original high-performance piezoelectric jetting assembly for wide-format solvent, UV, and aqueous industrial printing applications. With 128 individually addressable inline nozzles in two electrically independent 64-channel slices, a 50 pl calibrated drop, and up to 600 dpi resolution, it is the medium-drop variant of the S-Class 128-channel family — balancing resolution and speed for a wide range of demanding production platforms. Lightweight, stackable, and orientation-independent. Manufactured in the USA and QC-tested by Fujifilm Dimatix. Every SM-128 AA we sell at Digiprint USA is 100% genuine original Fujifilm Dimatix Spectra.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Spectra SM-128 AA |
| Manufacturer | Fujifilm Dimatix (Spectra) — manufactured in USA |
| Technology | Piezoelectric drop-on-demand — 2 independent 64-channel slices |
| Total nozzles | 128 individually addressable inline nozzles |
| Max resolution | Up to 600 dpi |
| Calibrated drop size | 50 pl |
| Adjustable drop range | 40 – 55 pl |
| Nozzle diameter | 50 µm |
| Nozzle spacing | 508 µm (0.020 inch) |
| Max firing frequency | 30 kHz |
| Operating temperature | Up to 90°C (optional temperature control) |
| Ink compatibility | Solvent and UV-curable inks |
| Fluid interface | Dual-ported — top-mounted; multiple mounting configurations |
| Nozzle firing | All 128 nozzles can be fired simultaneously or individually |
| Design | Compact, lightweight, orientation-independent, stackable |
| Country of manufacture | USA (Fujifilm Dimatix/Spectra facility) |
| Condition | 100% genuine original Fujifilm Dimatix, brand new |
SM-128 AA vs Other Spectra 128-Channel Variants
| Model | Drop Size | Max Resolution | Best For |
|---|---|---|---|
| SE-128 AA | 30 pl | 900 dpi | Fine detail, high-resolution output |
| SM-128 AA (this listing) | 50 pl | 600 dpi | Balanced resolution and speed — Durst Rho, Agfa Jeti platforms |
| SL-128 AA | 80 pl | 450 dpi | High-speed wide-format production |
Important note for Agfa Jeti printer owners: Agfa Jeti series printers may use the SE-128, SM-128, or SL-128 depending on the original factory configuration of your specific unit. Always confirm which variant your Jeti uses by checking the existing head markings or contacting our team before ordering.
Compatible Printers
This printhead is compatible with the following printers:
Contact our team with your printer make, model, and original head markings to confirm SM-128 AA compatibility before ordering.
Warranty Notice
Due to the sensitive nature of industrial printhead components, we cannot accept returns, exchanges, or refunds once the printhead has been installed. All sales are final. Professional installation is recommended. Contact our team to confirm compatibility before ordering.
Why Buy from Digiprint USA
• 100% genuine original Fujifilm Dimatix Spectra SM-128 AA — manufactured and QC-tested in the USA
• Not compatible, not refurbished — sealed original Dimatix packaging
• In stock in Doral, Miami FL — same day shipping before 2PM EST
• Ideal for Latin American Durst Rho, Agfa Jeti, and specialty UV print shops using Miami freight forwarders
• Free technical support — we confirm SM-128 vs SE-128 vs SL-128 variant for your printer before you order
View our full range of genuine Fujifilm Dimatix Spectra industrial printheads including the SL-128 AA (80pl).
Frequently Asked Questions
What is the difference between SM-128 AA, SE-128 AA, and SL-128 AA?
All three are Spectra 128-channel S-Class jetting assemblies with the same dual-slice architecture. The difference is drop size and resolution: SE-128 is 30 pl (up to 900 dpi), SM-128 is 50 pl (up to 600 dpi), and SL-128 is 80 pl (up to 450 dpi). The variant your printer requires is set at the factory and cannot be changed without modifying the printer's drive electronics.
How do I know if my Agfa Jeti or Durst Rho uses the SM-128, SE-128, or SL-128?
Check the existing head markings on your installed printhead — the variant designation (SE, SM, or SL) is printed on the head body. You can also contact our team with your printer model and serial number and we can help confirm the correct variant before you order. Agfa Jeti and Durst Rho printers may use any of the three variants depending on their original factory configuration.
Is the SM-128 AA the same as the SL-128 AA?
No — the SM-128 AA is the 50 pl medium-drop variant (up to 600 dpi); the SL-128 AA is the 80 pl large-drop variant (up to 450 dpi). They share the same physical format and dual-slice architecture but deliver different drop sizes. Installing the wrong variant in your printer will produce incorrect output and may require drive electronics recalibration.
Do you ship Spectra SM-128 AA printheads to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse. Our Miami location is ideal for Latin American wide-format and UV print shops using freight forwarders in the Doral area.
