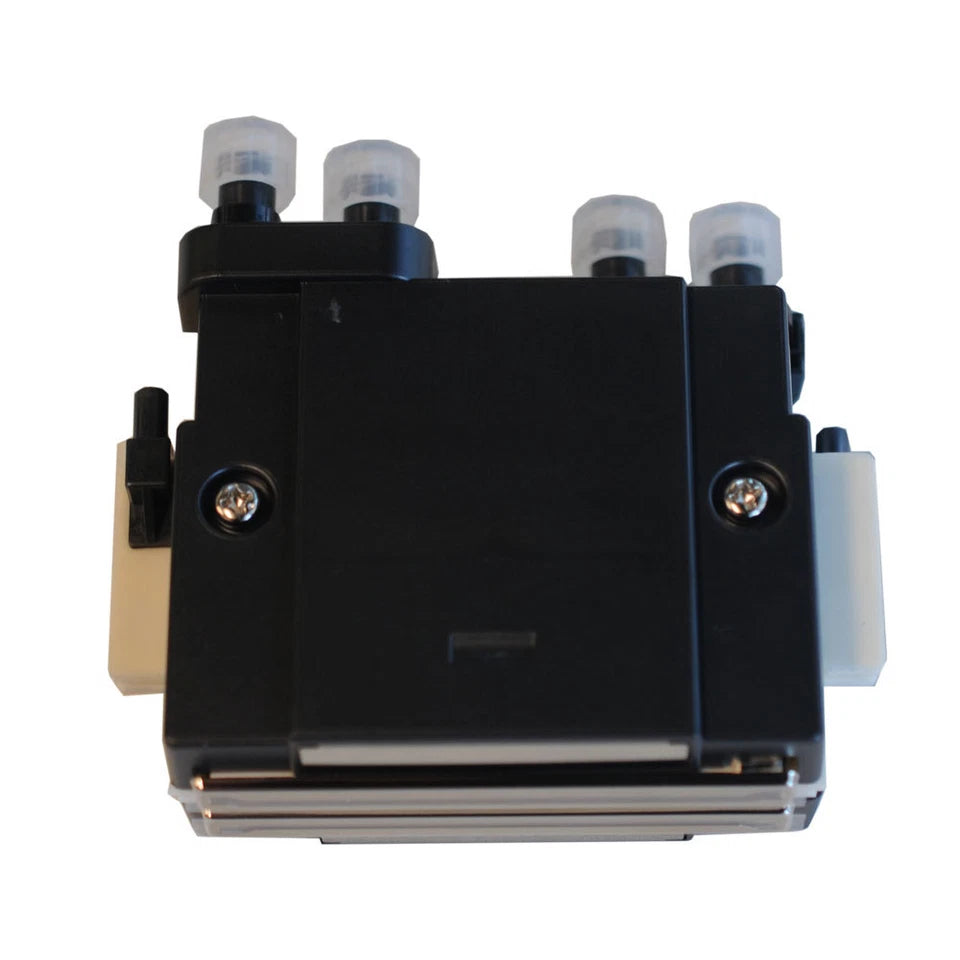

}Toshiba CA4W Printhead | 318 Nozzles 16-Level Greyscale UV Industrial
Brand: Toshiba
Tax excluded. Shipping calculated at checkout
Availability: In stock
The Toshiba TEC CA4W is a genuine original on-demand piezoelectric inkjet printhead engineered for high-resolution industrial UV and oil-based pigment printing. With 318 nozzles, 16-level greyscale capability, and a drop range from 6 to 90 picoliters, it enables ultra-smooth gradients and precise droplet control across demanding production environments. The integrated water channel provides temperature regulation for consistent ink viscosity across long print runs. Every CA4W we sell at Digiprint USA is 100% genuine Toshiba TEC.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Toshiba TEC CA4W |
| Technology | On-demand piezoelectric |
| Active nozzles | 318 |
| Nozzle spacing | 169 microns |
| Maximum resolution | Up to 1200 dpi |
| Greyscale levels | 16 levels |
| Drop volume range | 6 pl – 90 pl |
| Firing frequency — 1 drop | 28 kHz |
| Firing frequency — 15 drops | 2.8 kHz |
| Voltage range | 14V – 31V |
| Ink ports | Dual ink inlets (convertible to single inlet system) |
| Temperature control | Integrated water channel — complete sealing |
| Ink compatibility | UV-curable and oil-based pigment inks |
| Condition | 100% genuine original Toshiba TEC, brand new |

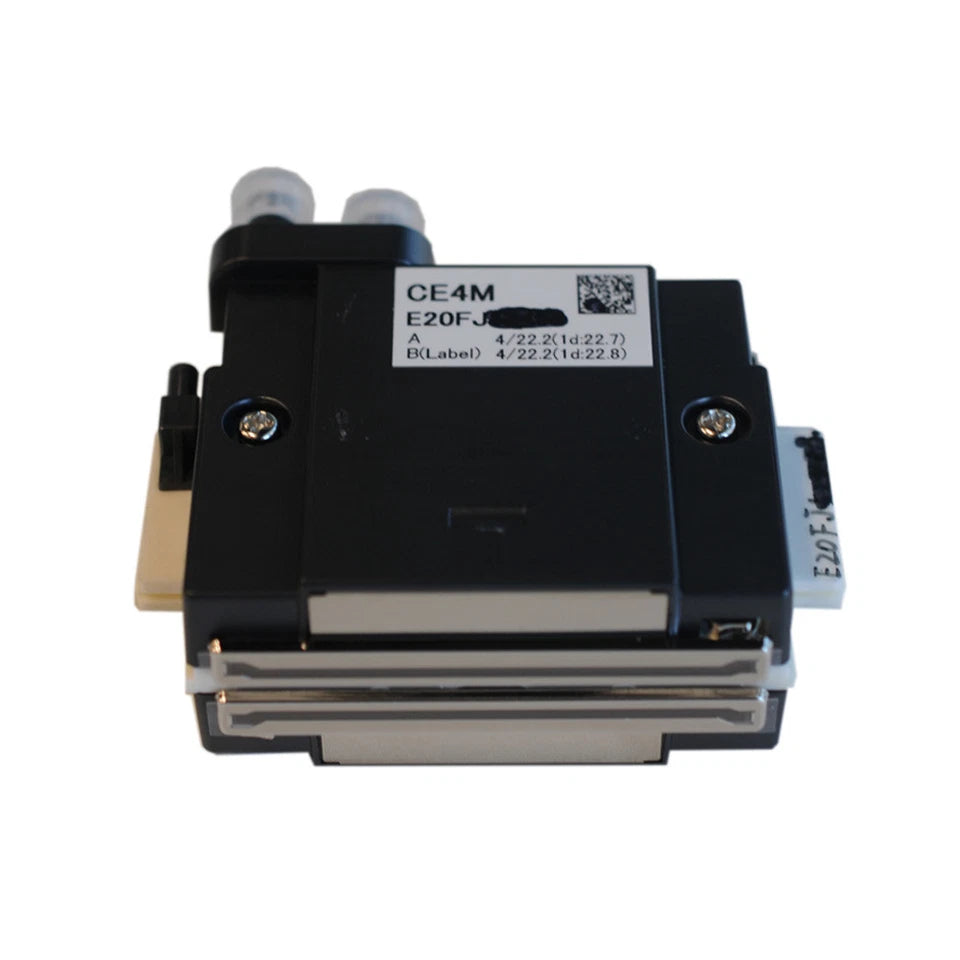

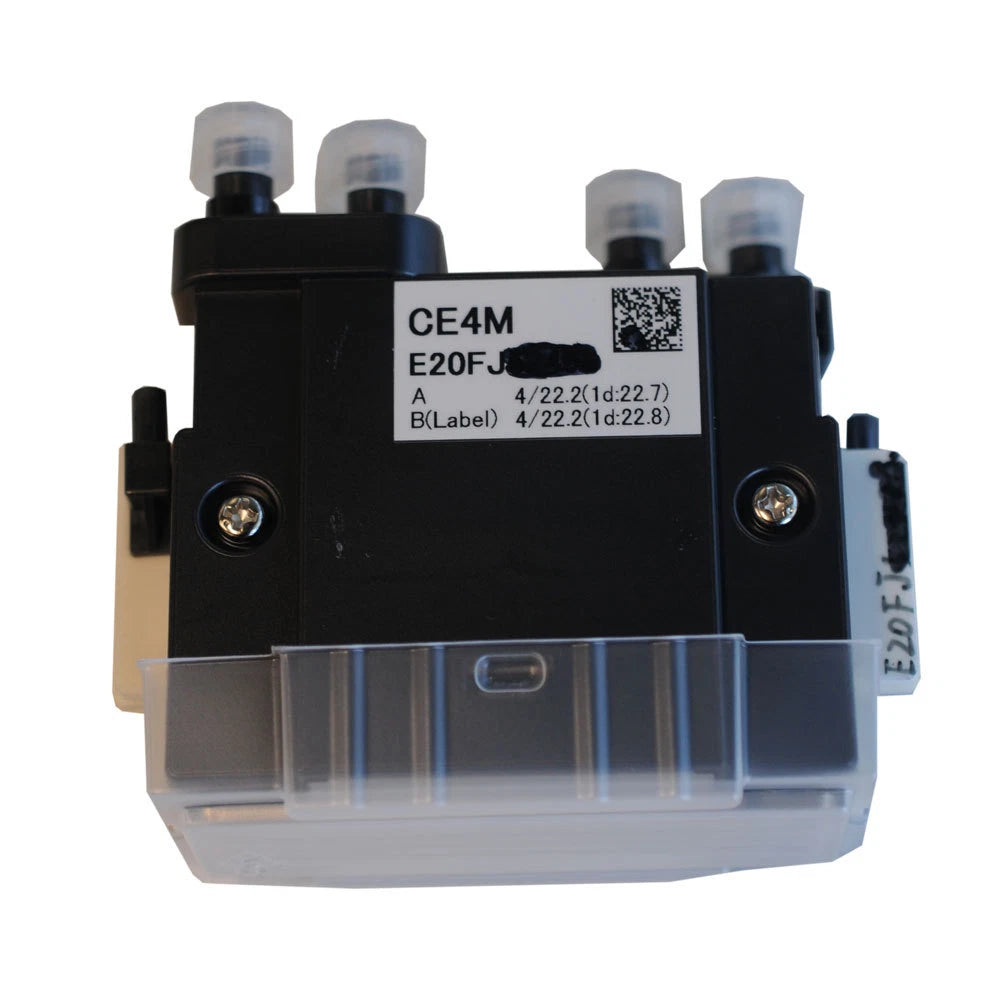

CA4W vs CE4M — Which Toshiba Head Do You Need?
| Spec | CA4W (this listing) | CE4M |
|---|---|---|
| Nozzles | 318 | 636 |
| Max resolution | 1200 dpi | 300 dpi |
| Drop range | 6 – 90 pl | 5 – 35 pl |
| Greyscale levels | 16 | 16 |
| Print width | 53.9 mm | 53.7 mm |
| Primary printers | Océ Arizona, Fujifilm Acuity, EFI Rastek, Mimaki UJF | Galaxy UD series, HAE UV series, Icontek |
Both heads deliver 16-level greyscale but the CA4W targets higher-resolution applications (up to 1200 dpi) with a wider drop range (6–90 pl), while the CE4M offers double the nozzle count at lower resolution. Always confirm which head your specific printer model requires.
Compatible Printers
This printhead is compatible with the following printers:
Contact our team with your printer make and model to confirm CA4W compatibility before ordering.
Warranty Notice
Due to the sensitive nature of industrial UV printhead components, we cannot accept returns, exchanges, or refunds once the printhead has been installed. All sales are final. Contact our team to confirm compatibility with your printer before ordering.
Why Buy from Digiprint USA
• 100% genuine original Toshiba TEC CA4W — not compatible, not refurbished
• In stock in Doral, Miami FL — same day shipping before 2PM EST
• Ideal for Latin American UV print shops using Miami freight forwarders
• Free technical support — we confirm CA4W vs CE4M and correct Toshiba variant for your printer before you order
• View our full range of genuine industrial printheads including the Toshiba CE4M.
Frequently Asked Questions
What is the difference between Toshiba CA4W and CE4M?
The CA4W has 318 nozzles at up to 1200 dpi with a 6–90 pl drop range — designed for high-resolution UV applications including Océ Arizona, Fujifilm Acuity, and EFI Rastek printers. The CE4M has 636 nozzles at up to 300 dpi with a 5–35 pl range — designed for Galaxy UD, HAE UV, and Icontek printers. Both support 16-level greyscale but are not interchangeable.
What is the dual ink inlet system on the CA4W?
The CA4W has two ink inlet ports, which can be configured for dual-channel ink supply or converted to a single inlet system depending on the printer's ink delivery design. The configuration required depends on your specific printer model — contact our team to confirm the correct setup before installation.
What does the integrated water channel do?
The CA4W includes an internal water channel for temperature regulation. UV and oil-based inks are viscosity-sensitive — maintaining consistent head temperature ensures stable drop formation and consistent output across long production runs. The complete sealing design prevents contamination from the cooling circuit.
Is the CA4W compatible with Océ Arizona series printers?
Yes — the CA4W is compatible with multiple Océ Arizona models including the 300 GT, 318 GL, 350 GT, 350 XT, 360 GT, and 360 XT. Contact our team with your specific Arizona serial number to confirm before ordering.
Do you ship Toshiba CA4W printheads to Latin America?
Yes — same day shipping from our Doral, Miami FL warehouse. Our Miami location is ideal for Latin American industrial UV print shops using freight forwarders in the Doral area.
